Garage Door Torsion Spring 45kg to 100kg (Left or Right)
Garage door torsion springs from 45kg to 100kg on one page, each with a colour stripe that marks the weight. For sectional doors, not roll-up doors. Sold singly, left-wound or right-wound. Fitting by an experienced garage door installer.
- 45kg to 100kgEight weights
- Colour stripeMarks the weight
- Left or rightWound direction
- Sold singlyOne spring
- Left-wound (red cone) fits on the right-hand side of the centre bracket.
- Right-wound (black cone) fits on the left-hand side of the centre bracket.
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.
This page lists all eight of our torsion garage door springs in one place, from 45kg to 100kg. Pick the weight and stripe colour first, then left-wound or right-wound. Each order line is one spring for a sectional garage door; these springs are not for roll-up doors. Every weight also has its own page, from the 45kg with the green stripe up to the 100kg, listed below if you would rather buy one weight from a page of its own.
Weights and stripe colours

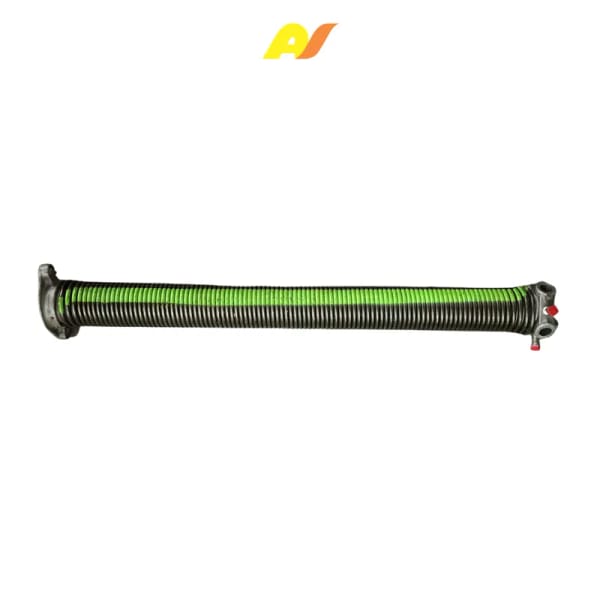

- 45kg: green stripe
- 50kg: beige stripe
- 60kg: blue stripe
- 65kg: blue and white stripe
- 70kg: white stripe
- 80kg: yellow stripe
- 90kg: orange stripe
- 100kg: green stripe
The colours are our supplier's code, not an industry standard, and other suppliers use different colours for the same weight. The 45kg and 100kg are both green, so order by the kg figure, not the colour alone. The stripe runs along the coils, which also helps the installer count turns while winding.
Choosing garage door springs: weight and wind
The simplest way to get it right is like for like: the same kg and the same wind as the spring coming off your door. Some doors run one spring and some run two. On a two-spring door, replace both at the same time; a door with one spring only needs one. If the old spring is missing or the stripe has worn off, ask your installer to work out what the door needs before you order.
Left-wound or right-wound?
Torsion springs come wound in one of two directions, and the two are not interchangeable. Choose Left or Right in the variant picker to match the spring you are replacing. If you cannot tell which way your old spring is wound, ask your garage door installer to check before you order.
Safety: leave spring work to an installer
A torsion spring stores a lot of energy, and the cables, drums and brackets it works with are under high tension too. Spring and cable work should be done by an experienced garage door installer. Alectra Solutions supplies the parts only. A spring change is also a good time to look at the lifting cables, the cable drums and the centre bearing plate the springs anchor to.
Key features
- Eight weights on one page. 45kg, 50kg, 60kg, 65kg, 70kg, 80kg, 90kg and 100kg in one option list.
- A colour stripe for each weight. Our supplier's code. The 45kg and 100kg are both green, so order by the kg.
- Left-wound or right-wound. Pick the wind that matches the spring you are replacing.
- Sold singly. One spring per order line. A two-spring door needs two.
- For sectional garage doors. Not for roll-up doors.
- Stripe for counting turns. The stripe runs along the coils, which helps the installer count turns while winding.
Specifications
| Type | Torsion springs for sectional garage doors |
|---|---|
| Weights | 45kg, 50kg, 60kg, 65kg, 70kg, 80kg, 90kg, 100kg |
| Stripe colours | 45kg green, 50kg beige, 60kg blue, 65kg blue and white, 70kg white, 80kg yellow, 90kg orange, 100kg green |
| Colour code | Supplier code, not an industry standard |
| Wind | Left-wound or right-wound (choose in the variant picker) |
| Not for | Roll-up garage doors |
| Sold as | One spring per order line |
| Fitting | By an experienced garage door installer |
Not in the box
- Lifting cables
- Cable drums (left and right)
- Centre bearing plate
- End bearing plates
Questions people ask
Singly. Each order line is one spring. If your door has two springs, order two and replace both at the same time; a door with one spring only needs one.
Match the spring coming off your door: same kg, same wind. If the old spring is missing or unmarked, ask your garage door installer to work out what the door needs before you order.
Each colour is our supplier's code for a weight: green 45kg, beige 50kg, blue 60kg, blue and white 65kg, white 70kg, yellow 80kg, orange 90kg and green 100kg. It is not an industry standard, so springs from other suppliers may use other colours.
That is how our supplier marks them. Because the colour alone cannot tell them apart, always order by the kg figure.
Order the same wind as the spring you are replacing. Left-wound and right-wound springs turn in opposite directions and cannot be swapped. If you cannot tell, ask your garage door installer to check before you order.
No. They are torsion springs for sectional garage doors only.
No. Alectra Solutions supplies the equipment only. Spring and cable work should be done by an experienced garage door installer because the parts are under high tension.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
