Buying guide
Compare the six Centurion Systems D-Series sliding gate motors, from the D3 SMART for light home gates to the D20 SMART for 2,000 kg industrial gates. Specifications, installation manuals and help choosing the right model.
Six models, from light home gates to heavy industrial gates. Trade customers see their price after logging in.

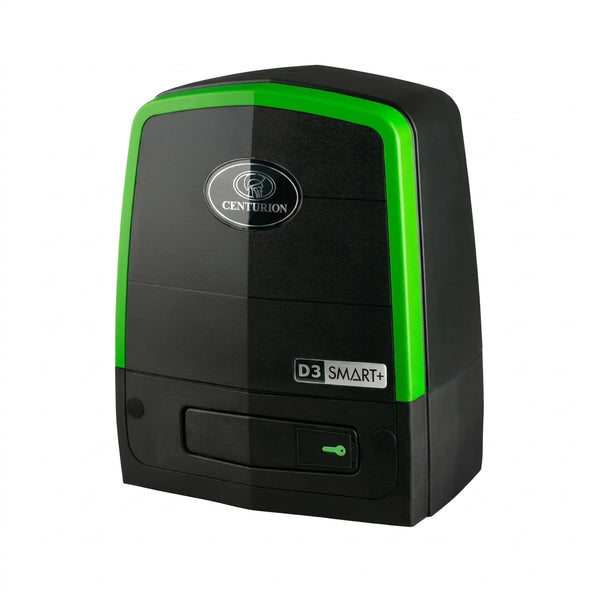

Light home gates up to 300 kg
The entry-level SMART motor for homes. Compact and quiet, with MyCentsys Pro app control for opening the gate from your phone.

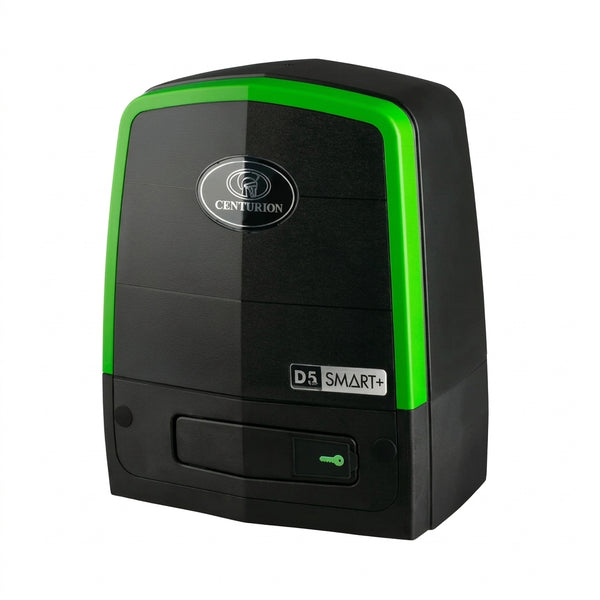

Medium home gates up to 500 kg
The SMART version of the well-known D5-Evo. Up to 24 m/min on gates of 400 to 500 kg, with MyCentsys Pro app control, a tamper alarm and 1,000 kg break-in resistance.

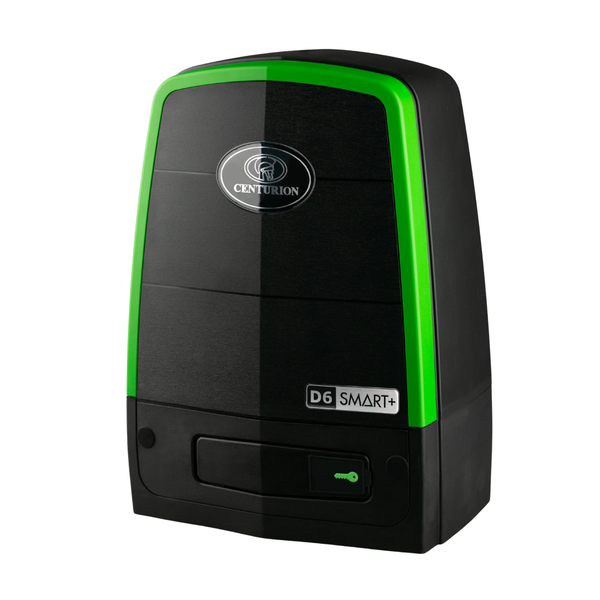

Heavy home and light commercial gates up to 600 kg
The fastest motor in its class at up to 35 m/min on gates up to 600 kg. 24V with dual battery backup, 1,000 kg break-in resistance and MyCentsys Pro app control.

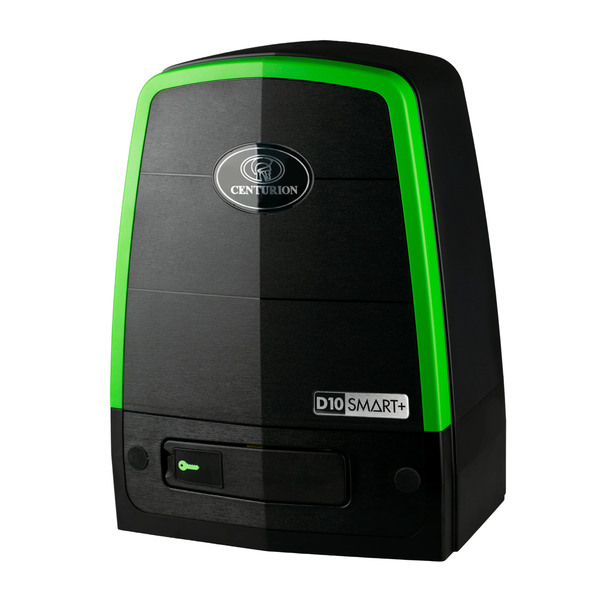

Busy commercial gates, 750 operations a day
Built for busy commercial and industrial entrances. Handles gates up to 1,000 kg and 750 operations a day, with MyCentsys Pro app control.

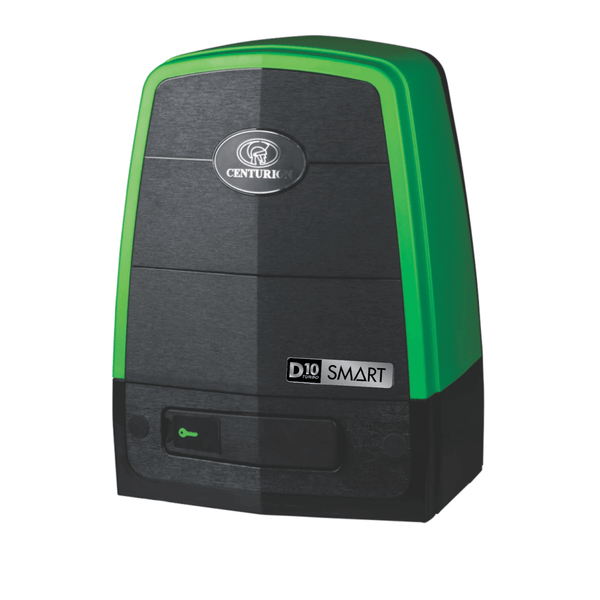

Top speed up to 45 m/min
The fastest motor in the D-Series, reaching 45 m/min on lighter gates, with speed that adjusts to the load. For entrances where a quick cycle time matters.
Heavy industrial gates up to 2,000 kg
The flagship of the D-Series. A die-cast aluminium gearbox for gates up to 2,000 kg, with a mandatory origin sensor and full SMART connectivity.
All six models side by side. On a phone, swipe the table sideways to see every model.
| Specification | D3 SMART | D5-Evo SMART | D6 SMART | D10 SMART | D10 Turbo SMART | D20 SMART |
|---|---|---|---|---|---|---|
| Segment | Domestic | Domestic | Domestic | Industrial | Industrial | Heavy industrial |
| Input voltage | 12V DC (mains charged) | 90 to 240V AC, 50Hz | 90 to 240V AC, 50Hz | 90 to 240V AC, 50Hz | 90 to 240V AC, 50Hz | 90 to 240V AC, 50Hz |
| Motor voltage | 12V DC | 12V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Max gate mass | 300 kg | 500 kg | 600 kg | 1,000 kg | Up to 1,000 kg | 2,000 kg |
| Gate speed | 24 m/min | Up to 24 m/min | Up to 35 m/min | Up to 26 m/min | Up to 45 m/min | 18 m/min |
| Push force | - | 25.5 kgf start, 17 kgf rated | 30 kgf rated | 30 kgf rated | 30 kgf rated | Ask us |
| Duty cycle | - | 50% | 30% | 45% | 45% | Ask us |
| Battery backup | 1 x 7.2 Ah 12V | 1 x 7 Ah 12V | 2 x 7 Ah 12V | 2 x 7 Ah 12V | 2 x 7 Ah 12V | Upgradeable |
| Operations a day | About 250 | About 150 | About 400 | 750 | 750 | Ask us |
| Solar compatible | ✓ | - | ✓ | ✓ | ✓ | ✓ |
| SMART app | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Obstruction detection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Compliance | IEC 60335-2-95 | IEC 60335-2-95 | IEC 60335-2-95 | IEC 60335-2-95 | IEC 60335-2-95 | IEC 60335-2-95 |
| Manual |
Start with the weight of your gate. It is the most important factor. Then think about how many times a day the gate opens.
| Gate mass | Motor | Best for |
|---|---|---|
| Up to 300 kg | D3 SMART | Light home gates |
| 300 to 500 kg, mains power | D5-Evo SMART | Medium home gates |
| 500 to 600 kg | D6 SMART | Heavy home gates or light commercial use |
| 600 to 1,000 kg, busy gate | D10 SMART | Commercial and industrial entrances |
| 600 to 1,000 kg, fastest cycle | D10 Turbo SMART | High-traffic estate and business entrances |
| Up to 2,000 kg | D20 SMART (ask for a quote) | Heavy industrial gates |
Not sure what your gate weighs? A certified installer can check it for you. Find one at myinstaller.co.za, or ask the branch for installers we know in Pretoria.
Choose the D3 SMART for gates up to 300 kg, the D5-Evo SMART for gates up to 500 kg, the D6 SMART for gates up to 600 kg, the D10 SMART for busy commercial gates up to 1,000 kg, the D10 Turbo SMART for the fastest cycle on gates up to 1,000 kg, and the D20 SMART for heavy gates up to 2,000 kg.
The D3 SMART handles gates up to 300 kg and suits light home gates. The D5-Evo SMART handles gates up to 500 kg at up to 24 m/min and is the most popular choice for homes. The D10 SMART handles gates up to 1,000 kg and is built for heavy commercial and industrial sliding gates.
The D6 SMART is a 24V sliding gate motor for gates up to 600 kg. It reaches up to 35 m/min, has dual 7 Ah battery backup, 1,000 kg break-in resistance, tamper detection and MyCentsys Pro app support. It suits heavy home gates and light commercial use.
The D10 Turbo SMART handles gates up to 1,000 kg, the same as the standard D10 SMART, but reaches up to 45 m/min on lighter gates, with speed that scales to the load. It is rated for 750 operations a day and suits busy estate and commercial entrances.
Yes. Every D-Series motor has battery backup, so the gate keeps working when the power is off. How many cycles you get depends on the battery, the gate and how often it opens. A larger battery gives you more cycles during long power cuts, so ask the branch which battery suits your motor.
SMART models work with the MyCentsys Pro app, so you can open and close the gate from your phone, give access to other users and see the gate's activity.
No. We supply the motor and parts only. You can find a certified Centurion Systems installer at myinstaller.co.za, or ask the branch for installers we know in Pretoria.
Tell us your gate's weight and length and how often it opens, and the branch will help you pick a model.
