Gemini 12V 7Ah Sliding Gate Motor Kit + 4m Steel Rack
Gemini Slider 7Ah kit with 4m steel rack (2 x 2m): motor, 12V 8Ah battery, 2 x 3-button remotes and base plate for home sliding gates up to 500kg. 150 openings a day.
- Gates to 500kgOn 80mm roller-bearing wheels
- 4m steel rack2 x 2m, in the box
- 12V 8Ah batteryPlus 2 x 3-button remotes
- 150 openings a day26 m/min gate speed
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.

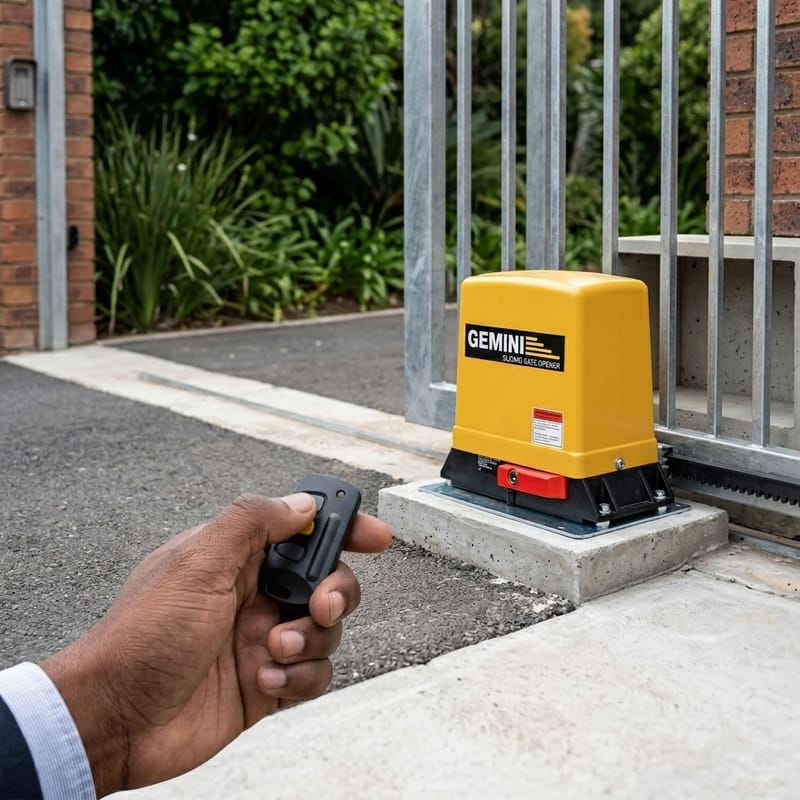

This Gemini gate motor kit is the Gemini Slider 500 (7Ah) with 4m of steel rack added, supplied as two 2m lengths, so the motor and the rack for a bare sliding gate come in one order. You also get the control card, power supply, a 12V 8Ah battery, two Gemini 3-button code-hopping remotes and the base plate. Gate already has rack? Take the 7Ah kit without rack. Worried about motor theft? See the 7Ah kit with rack and anti-theft bracket. For a busier gate there is the 12Ah kit with 4m steel rack.
What is in the box
Everything below comes in this kit:
- Gemini Slider 500 motor (7Ah version)
- Control card
- Power supply
- 12V 8Ah battery
- 2 x Gemini 3-button remotes
- Base plate
- Override lever
- 2 keys
- Lid
- Fuses
- Oil
- 4m steel rack (2 x 2m)
How the Gemini gate motor performs
Gemini rates the Slider 500 for sliding gates up to 500kg, on condition that the gate runs on 80mm roller-bearing wheels. It moves the gate at 26 m/min through a 23:1 gearbox, with 30 kgf starting pull and 17 kgf rated pull, and it is rated for 150 openings a day. With the battery in place, the gate still works in a power cut for as long as the battery has charge. If the gate meets an obstruction while closing, the collision sensing reverses it.
About the 4m steel rack
The rack is fixed along the gate and the motor's pinion drives it. Gemini says steel or nylon rack can be used; this kit comes with steel, in two 2m lengths. If your gate needs more than 4m of rack, add another Gemini 2m steel rack.
What you still need
Rack stoppers, safety beams and the anti-theft bracket are not in this box. Add Gemini infrared wireless beams so the gate has a safety check before it closes, and the Gemini anti-theft bracket to cover the override lever. Gemini gives 24 months on mechanical parts and 12 months on electrical parts, and batteries are not covered. The manual and the 7Ah spec sheet are linked on this page. Alectra Solutions supplies the equipment only, so have the kit fitted by your own gate installer.
Key features
- 4m steel rack included. Two 2m lengths, so a gate with no rack is covered up to 4m of rack.
- Battery and remotes in the box. A 12V 8Ah battery and two Gemini 3-button code-hopping remotes.
- Gates up to 500kg. Gemini's rating, for a gate that runs on 80mm roller-bearing wheels.
- 26 m/min gate speed. Driven through a 23:1 gearbox.
- 30 kgf starting pull. 17 kgf rated pull.
- 150 openings a day. Gemini's rating for the 7Ah slider on a normal home gate.
- Weather-resistant lid. Gemini's cover keeps the weather off the motor and control card.
- Override lever with 2 keys. Release the motor and move the gate by hand when you need to.
Specifications
| Model | Gemini Slider 500, 12V DC, 7Ah version |
|---|---|
| Maximum gate weight | 500kg (gate on 80mm roller-bearing wheels) |
| Gate speed | 26 m/min |
| Gearbox | 23:1 |
| Pull force | 30 kgf starting, 17 kgf rated |
| Openings a day | 150 |
| Battery | 12V 8Ah, included (12V 7Ah or 7.2Ah works as a replacement) |
| Remotes | 2 x Gemini 3-button code-hopping remotes |
| Rack | 4m steel (2 x 2m), included |
| Warranty | 24 months mechanical, 12 months electrical (batteries excluded), per Gemini |
| In the box | Gemini Slider 500 motor (7Ah version), Control card, Power supply, 12V 8Ah battery, 2 x Gemini 3-button remotes, Base plate, Override lever, 2 keys, Lid, Fuses, Oil, 4m steel rack (2 x 2m) |
| Sold as | Motor kit with 4m steel rack |
Not in the box
- Rack stoppers
- Infrared safety beams
- Anti-theft bracket
Manuals and documents
Questions people ask
This one adds 4m of steel rack in two 2m lengths. The motor, battery and remotes are the same, and the box list above shows everything you get.
Steel, in two 2m lengths. Gemini says steel or nylon rack can be used with the slider.
The box now ships with a 12V 8Ah battery. A 12V 7Ah or 7.2Ah battery works as a replacement.
No. Rack stoppers, infrared beams and the anti-theft bracket are sold separately. There is also a 7Ah kit that comes with the rack and the anti-theft bracket.
Gemini rates the 7Ah slider for 150 openings a day. For up to 200 a day, choose the Gemini 12Ah kit with 4m steel rack.
Only while it is closing: the collision sensing reverses the gate if it meets an obstruction. Fit infrared beams for a second safety check.
24 months on mechanical parts and 12 months on electrical parts. Batteries are not covered.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
