Gemini 12V 7Ah Sliding Gate Motor Kit

Gemini Slider 7Ah kit: 12V DC motor, 12V 8Ah battery and 2 x 3-button remotes for home sliding gates up to 500kg. 26 m/min, 150 openings a day. Rack sold separately.

  • Gates to 500kgOn 80mm roller-bearing wheels
  • 26 m/minGate speed
  • 12V 8Ah batteryWorks through power cuts
  • 150 openings a dayA normal house gate
R 4,390.00 R 4,599.00
Collect at a branch, no charge
  • Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00
    Get directions
  • Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45
    Get directions

Choose Pickup at checkout and we message you when your order is ready to collect.
Pairs well with
Gemini Steel Gate Motor Rack 2m
R 320.00
Gemini Wireless Safety Beams for Gate Motors (IRB Set, 10m)
R 550.00
Gemini Anti-Theft Bracket for Sliding Gate Motors
R 849.00
Gemini Gemlink Lite Smart Device, WiFi and Bluetooth Gate and Garage Door Opener
R 705.00
Gemini 3 Button Gate and Garage Remote, Code Hopping
R 160.00
Gemini Gate Motor Battery 12V 7.2Ah (Sealed Lead Acid)
R 299.00

This is the Gemini Slider 7Ah sliding gate motor kit without rack. In the box you get the 12V DC motor, a 12V 8Ah battery and two Gemini 3-button remotes. It suits home gates up to 500kg, moves the gate at 26 m/min and is rated for 150 openings a day. If your gate has no rack yet, the kit with 4m steel rack or the kit with rack and anti-theft bracket gets everything in one order. For a busier gate, see the Gemini 12V 12Ah kit.

What the Gemini Slider 7Ah does

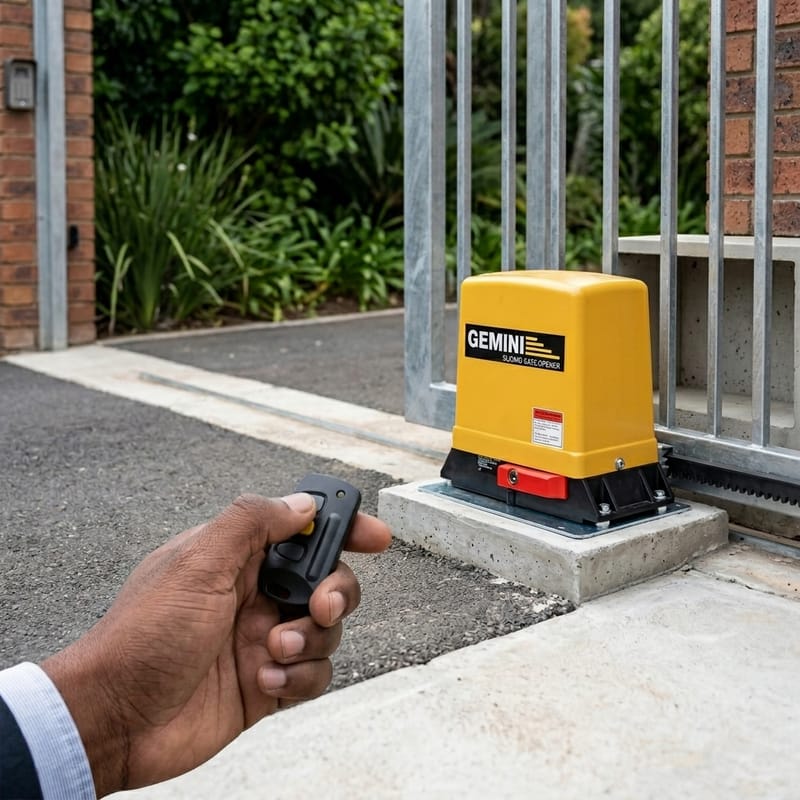

The motor sits on its base plate next to the gate and drives it along the rack through a 23:1 oil-filled gearbox. Gemini rates it for sliding gates up to 500kg, on condition that the gate runs on 80mm roller-bearing wheels. Starting pull is 30 kgf and rated pull is 17 kgf, with a soft start and soft stop. With the battery in place, the gate still works when the power goes off, for as long as the battery has charge.

7Ah or 12Ah: which Gemini slider?

Both Gemini 12V sliders have the same 500kg limit, the same 26 m/min speed and the same 30 kgf and 17 kgf pull figures. Gemini lists only two differences: the battery and the daily rating. This 7Ah model is rated for 150 openings a day, which covers a normal family home. The 12Ah model is rated for 200 openings a day and has the bigger battery, so Gemini recommends it for higher traffic or where you want more backup.

Rack, beams and other add-ons

Rack is not in this box, because the length depends on your gate. Steel or nylon rack can be used, and Alectra sells the Gemini 2m steel rack. Add Gemini infrared wireless beams for safety, because the collision sensing only reverses the gate while it is closing. The Gemini anti-theft bracket fits over the override lever, a Gemlink Lite smart device lets you work the gate from your phone, and extra Gemini 3-button remotes code in to the same receiver. The 7Ah slider also comes as a solar kit and a full solar kit.

Battery, warranty and fitting

The box now ships with a 12V 8Ah battery. When it needs replacing, a 12V 7Ah or 7.2Ah battery also works, such as the Gemini 12V 7.2Ah battery. Gemini gives 24 months on mechanical parts and 12 months on electrical parts, and batteries are not covered. The Gemini 12V slider manual and the 7Ah spec sheet are linked on this page. Alectra Solutions supplies the equipment only, so have the motor fitted by your own gate installer.

Is there rack on your gate already?

Rack is not part of this kit, because the length depends on the gate: a 4m gate needs 4m of rack. If your gate has no rack yet, look at the Gemini kits that come with a 4m rack.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • Kit with battery and remotes. The 12V DC motor, a 12V 8Ah battery and two Gemini 3-button remotes in one box.
  • Gates up to 500kg. Gemini's rating, for a gate that runs on 80mm roller-bearing wheels.
  • 26 m/min gate speed. Driven through a 23:1 oil-filled gearbox.
  • 30 kgf starting pull. 17 kgf rated pull, the same as the 12Ah model.
  • 150 openings a day. Gemini's rating for a normal home gate. Busier gates suit the 12Ah.
  • Battery backup. The gate keeps working in a power cut while the battery has charge.
  • Collision sensing. Reverses the gate if it meets an obstruction while closing.
  • Soft start and key override. Smooth starts and stops, and a key-locked override lever for moving the gate by hand.
Specifications
ModelGemini Slider 500, 12V DC, 7Ah version
Motor12V DC
Maximum gate weight500kg (gate on 80mm roller-bearing wheels)
Gate speed26 m/min
Gearbox23:1, oil-filled
Pull force30 kgf starting, 17 kgf rated
Openings a day150
Battery12V 8Ah sealed lead-acid, included
Replacement battery12V 7Ah or 7.2Ah also works
Remotes2 x Gemini 3-button code-hopping remotes, included
UseHome sliding gates
Warranty24 months mechanical, 12 months electrical (batteries excluded), per Gemini
In the boxMotor, 12V 8Ah battery, 2 x Gemini 3-button remotes
Sold asMotor kit without rack
Not in the box
  • Rack, steel or nylon, length to suit the gate
  • Rack stoppers
  • Infrared safety beams
  • Anti-theft bracket
  • Gemlink Lite smart device for phone control
  • Extra remotes (the receiver holds 30)
  • Solar kit, solar-compatible 12V power supply, cables and MC4 set, if you want to go solar
Which one fits your gate?
Your gate12V 7Ah12V 12Ah
Sliding gate up to 500kgFitsFits
Up to 150 openings a dayBest fitWorks
Up to 200 openings a dayNot ratedBest fit
Load shedding is the main worryShorter backup (8Ah battery)Longer backup (12Ah battery)
Manuals and documents
Questions people ask
What comes in the Gemini Slider 7Ah kit?

The 12V DC motor, a 12V 8Ah battery and two Gemini 3-button remotes. Rack, rack stoppers, beams and the anti-theft bracket are sold separately.

Why is it called 7Ah when the battery is 8Ah?

7Ah is Gemini's model name for this slider. The box now ships with a 12V 8Ah battery, and a 12V 7Ah or 7.2Ah battery still works as a replacement.

Should I buy the 7Ah or the 12Ah Gemini slider?

Both have the same 500kg limit, speed and pull force. The 7Ah is rated for 150 openings a day. The 12Ah is rated for 200 a day and has a bigger battery, so pick it for a busy gate or if you want more backup.

Does this kit include the rack?

No. It suits a gate that already has rack in good condition. For a bare gate, choose the Gemini 7Ah kit with 4m steel rack, or the kit with rack and anti-theft bracket. Steel or nylon rack can be used.

Will the gate stop if it hits a car or a pet?

Gemini's collision sensing reverses the gate only while it is closing. Infrared safety beams across the opening add a second check before the gate closes, so they are worth fitting.

Can I run the Gemini 7Ah on solar?

Yes, with Gemini's solar kit. Alongside the solar kit you also need the solar-compatible Gemini 12V power supply, the cables and an MC4 connector set.

How do I open the gate if the battery is flat?

Unlock the override lever with the key and release the motor, then slide the gate by hand. Lock it again once the power is back.

What warranty does Gemini give?

24 months on mechanical parts and 12 months on electrical parts. Batteries are not covered.
