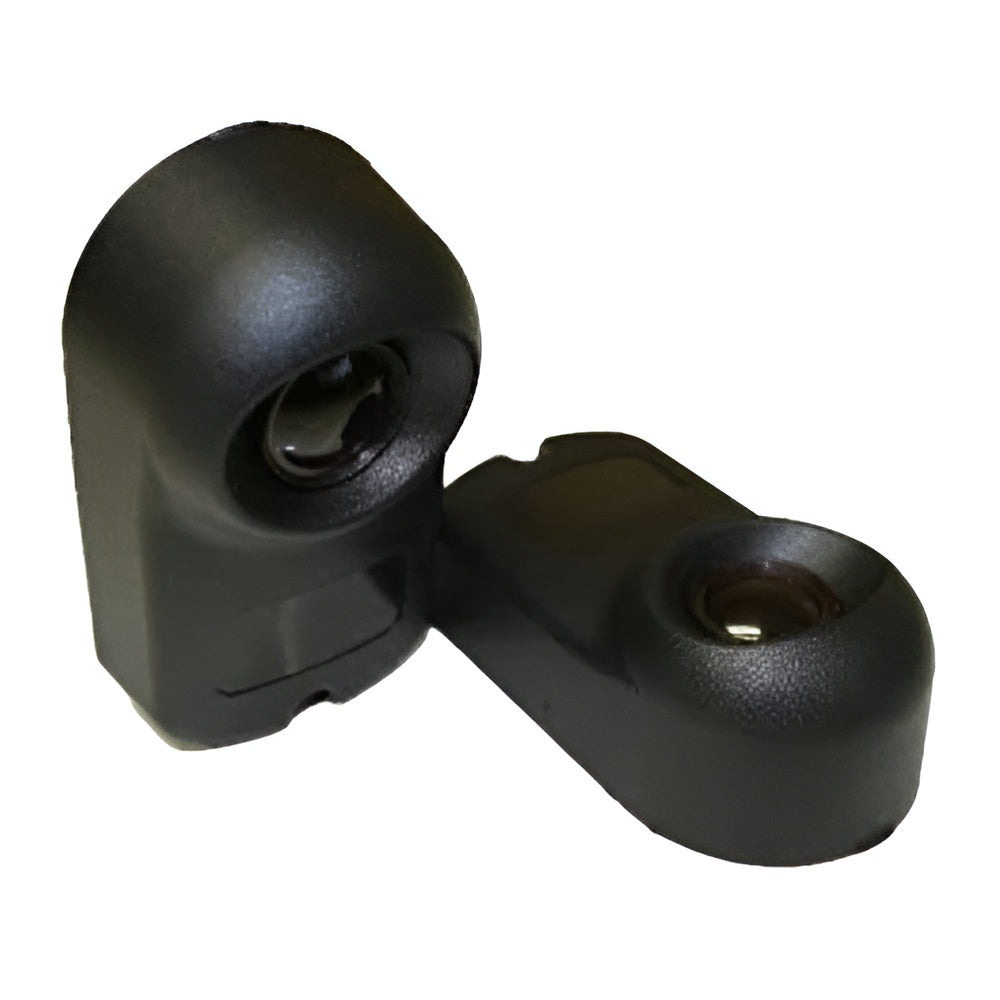

Gemini Wireless Safety Beams for Gate Motors (IRB Set, 10m)
GEMINI IRB Set Wireless (L90284) infrared safety beams, rated up to 10m. Battery-powered transmitter with LED battery check; receiver wired to the motor on 3 wires (COM, IR BEAM, 12V+), with alignment buzzer.
- Up to 10mRated range
- Battery transmitterLED battery check
- 3-wire receiverCOM, IR BEAM, 12V+
- Alignment buzzerOn the receiver
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.
These are wireless beams for gate motors from Gemini: the GEMINI IRB Set Wireless (part L90284), infrared safety beams rated for up to 10m. Here "wireless" means the transmitter runs on its own battery, with an LED to check the battery level, so it needs no cable back to the motor. The receiver is still wired to the motor on three wires: COM, IR BEAM and 12V+. They are made for Gemini gate motors such as the Gemini 12V 7Ah slider.
How these wireless beams for gate motors work
The two units face each other across the gate opening. The transmitter sends an infrared beam to the receiver, and the receiver, wired to the motor, signals the motor when an object or person breaks the beam. On this Gemini set the transmitter is battery powered, so only the receiver side needs cabling.
Wiring and lining up the receiver
Gemini's wiring diagram uses three wires from the receiver to the motor: COM, IR BEAM and 12V+. The receiver has a buzzer to help with alignment, plus an optional link for a low-battery buzzer. The Gemini wireless IRB manual is linked on this page. Alectra Solutions supplies the equipment only.
Range and size
Gemini rates the set for up to 10m. Gemini gives the weight as 0.2kg and the size as about 11.5 x 8.5 x 6cm. If you are replacing the motor's control board at the same time, see the Gemini V90 PCB.
Key features
- Battery-powered transmitter. No cable needed on the transmitter side.
- LED battery check. Shows the transmitter's battery level.
- Receiver wired to the motor. Three wires: COM, IR BEAM and 12V+.
- Rated up to 10m. Gemini's range rating for the set.
- Alignment buzzer. Helps you line up the receiver.
- Low-battery buzzer option. An optional link on the receiver.
Specifications
| Gemini name | GEMINI IRB Set Wireless |
|---|---|
| Gemini part number | L90284 |
| Type | Infrared safety beams |
| Range | Up to 10m |
| Transmitter | Battery powered, LED battery-level check |
| Receiver | Wired to the motor: COM, IR BEAM, 12V+ |
| Receiver buzzer | Alignment buzzer, optional low-battery buzzer link |
| Weight | 0.2kg |
| Size | About 11.5 x 8.5 x 6cm |
| Sold as | Gemini IRB Set Wireless |
Manuals and documents
Questions people ask
No. The transmitter runs on a battery, but the receiver is wired to the motor on three wires: COM, IR BEAM and 12V+.
Gemini rates the set for up to 10m.
The transmitter has an LED battery-level check, and the receiver has an optional link for a low-battery buzzer.
The receiver has an alignment buzzer to help you line it up with the transmitter.
Gemini gate motors. The receiver wires to the motor on COM, IR BEAM and 12V+, as shown in the Gemini manual on this page.
No. Alectra Solutions supplies the equipment only.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
