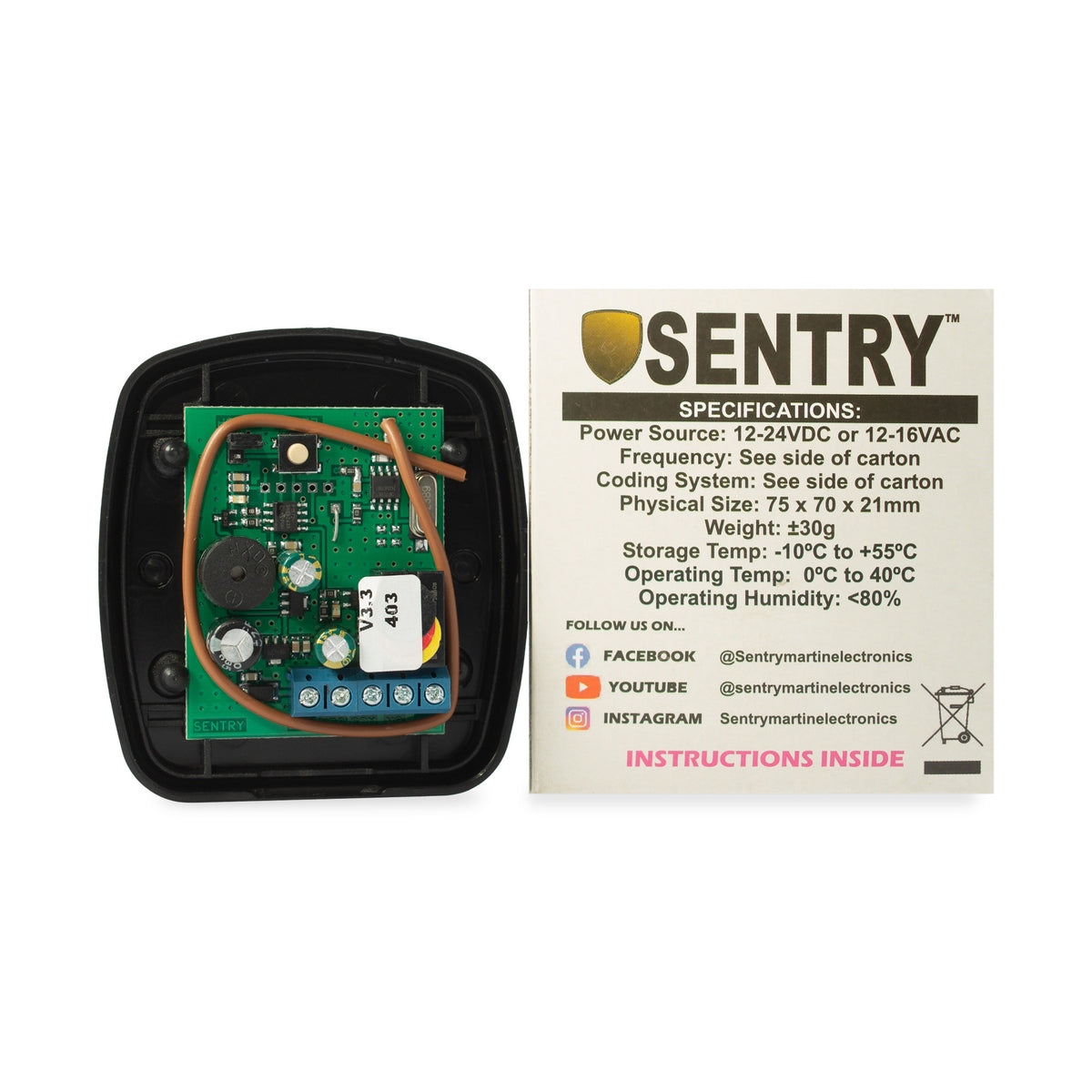

Sentry 1 channel learning receiver 403MHz opened, with its carton
Sentry learning receiver carton specifications

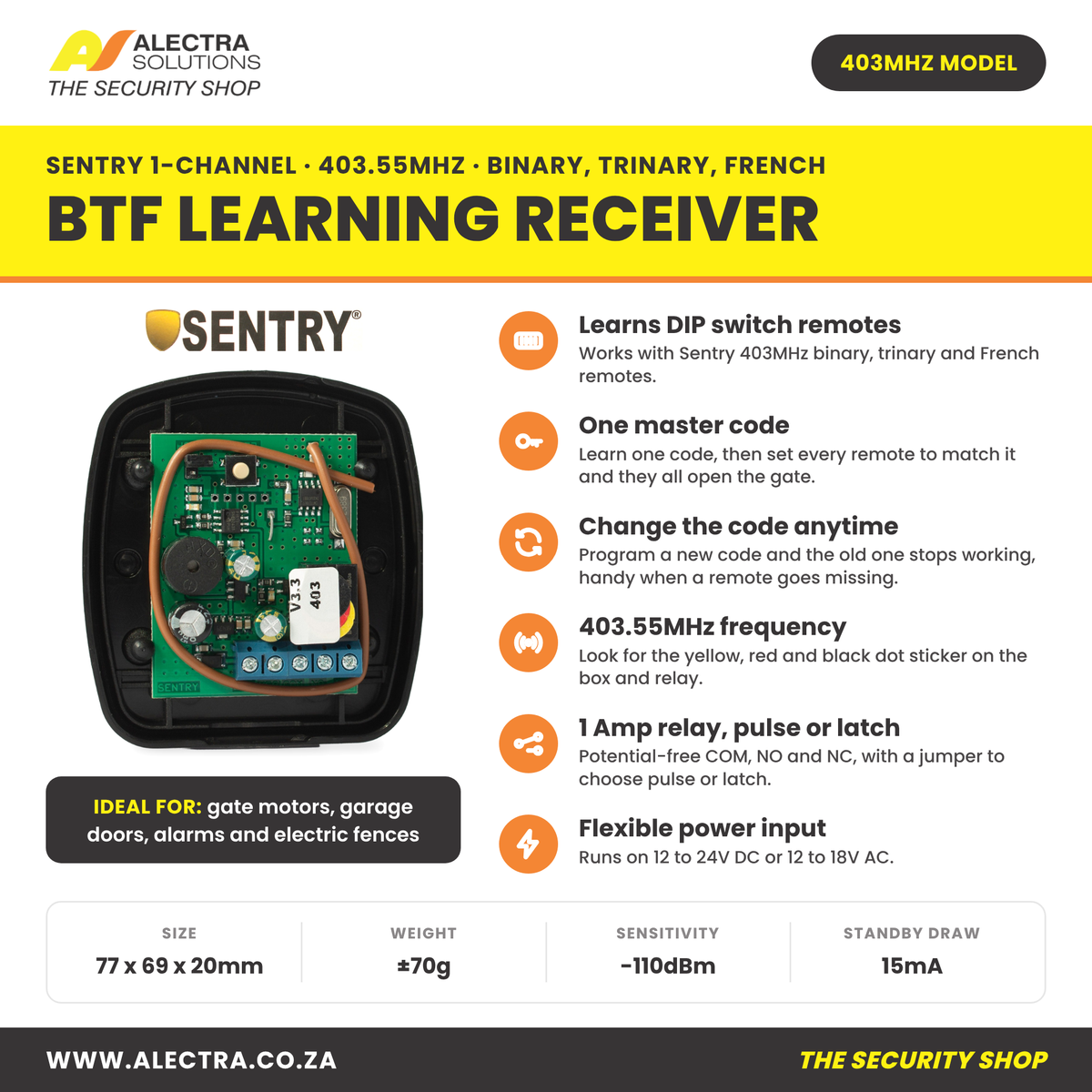

Sentry BTF learning receiver 403MHz features

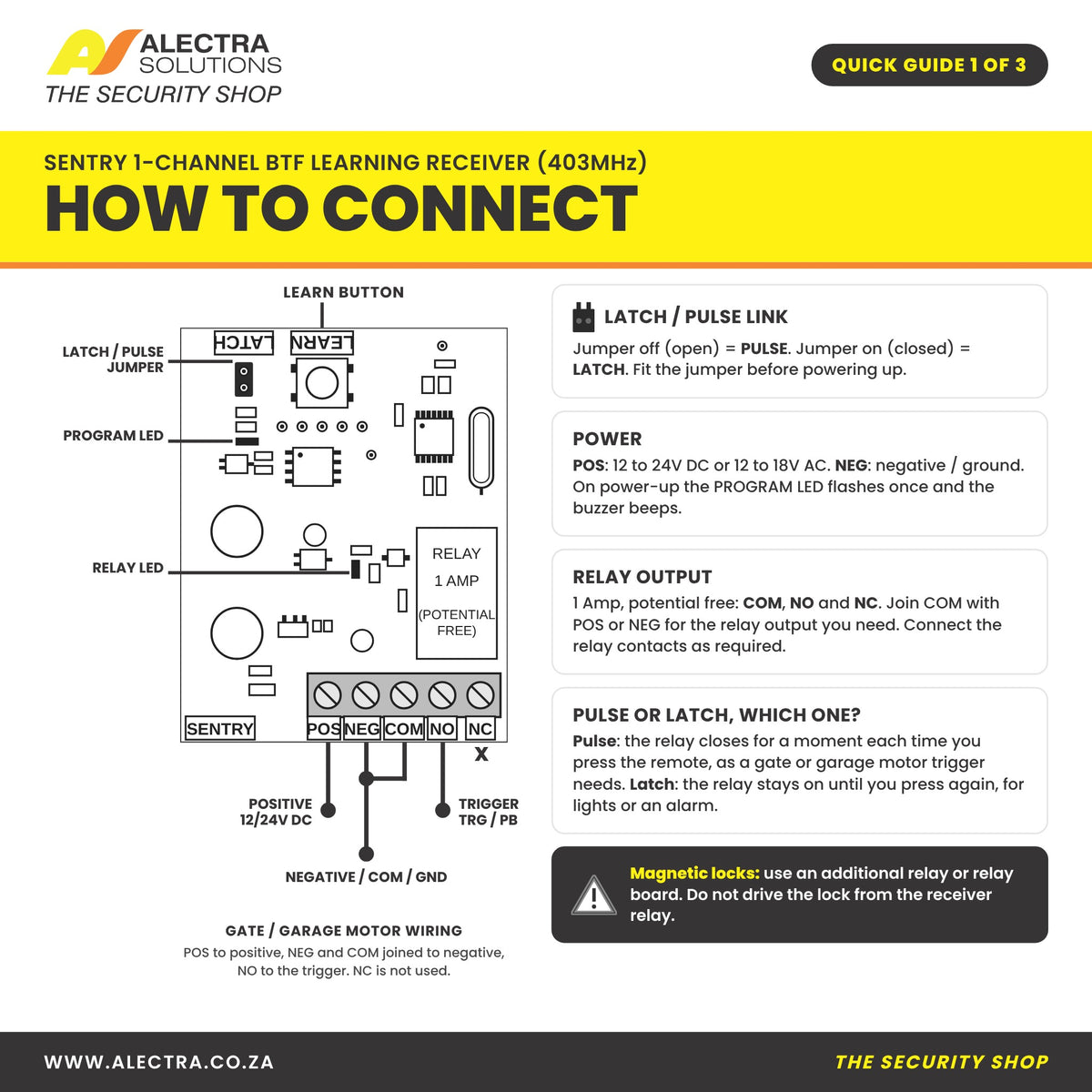

Sentry learning receiver quick guide 1 of 3: how to connect

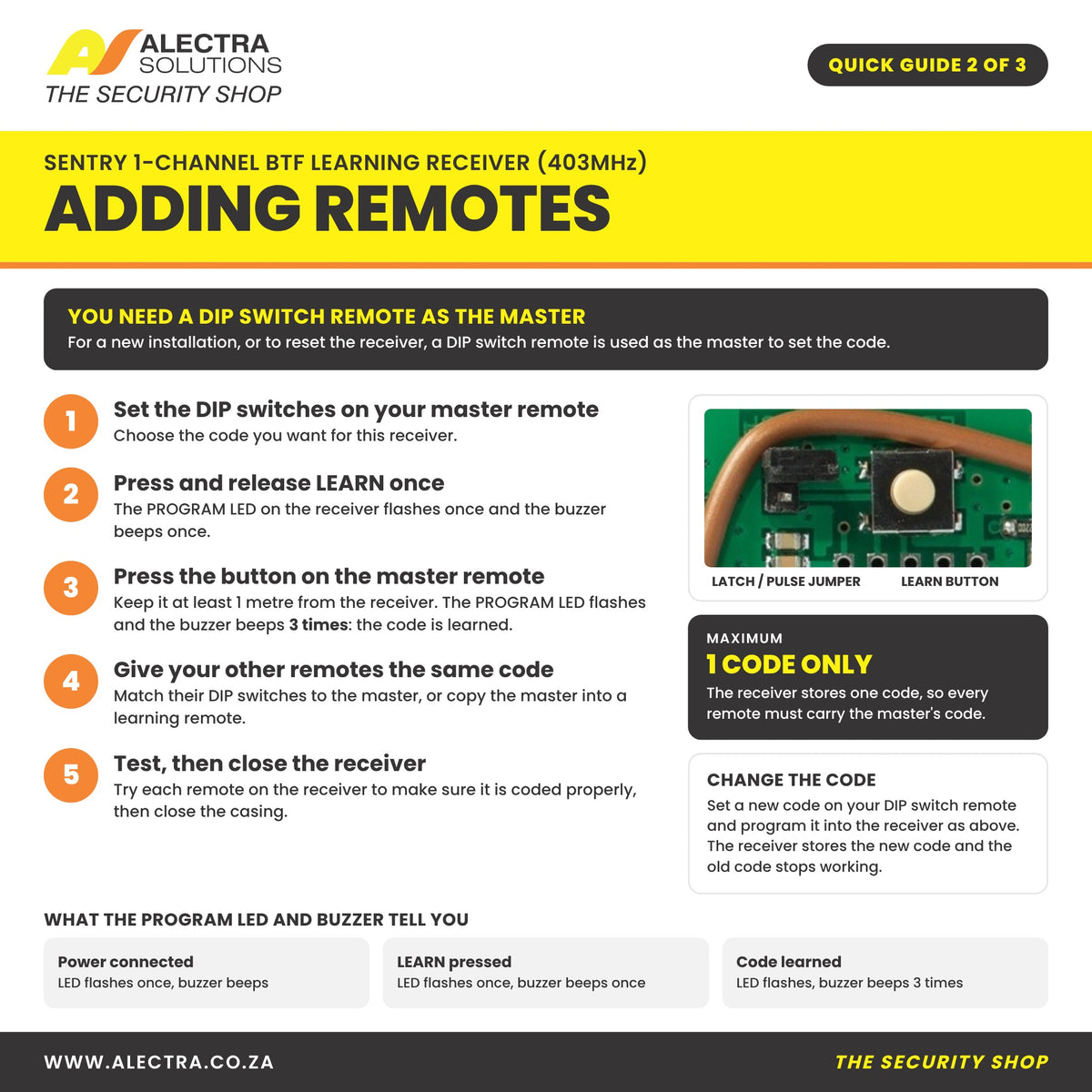

Sentry learning receiver quick guide 2 of 3: adding remotes

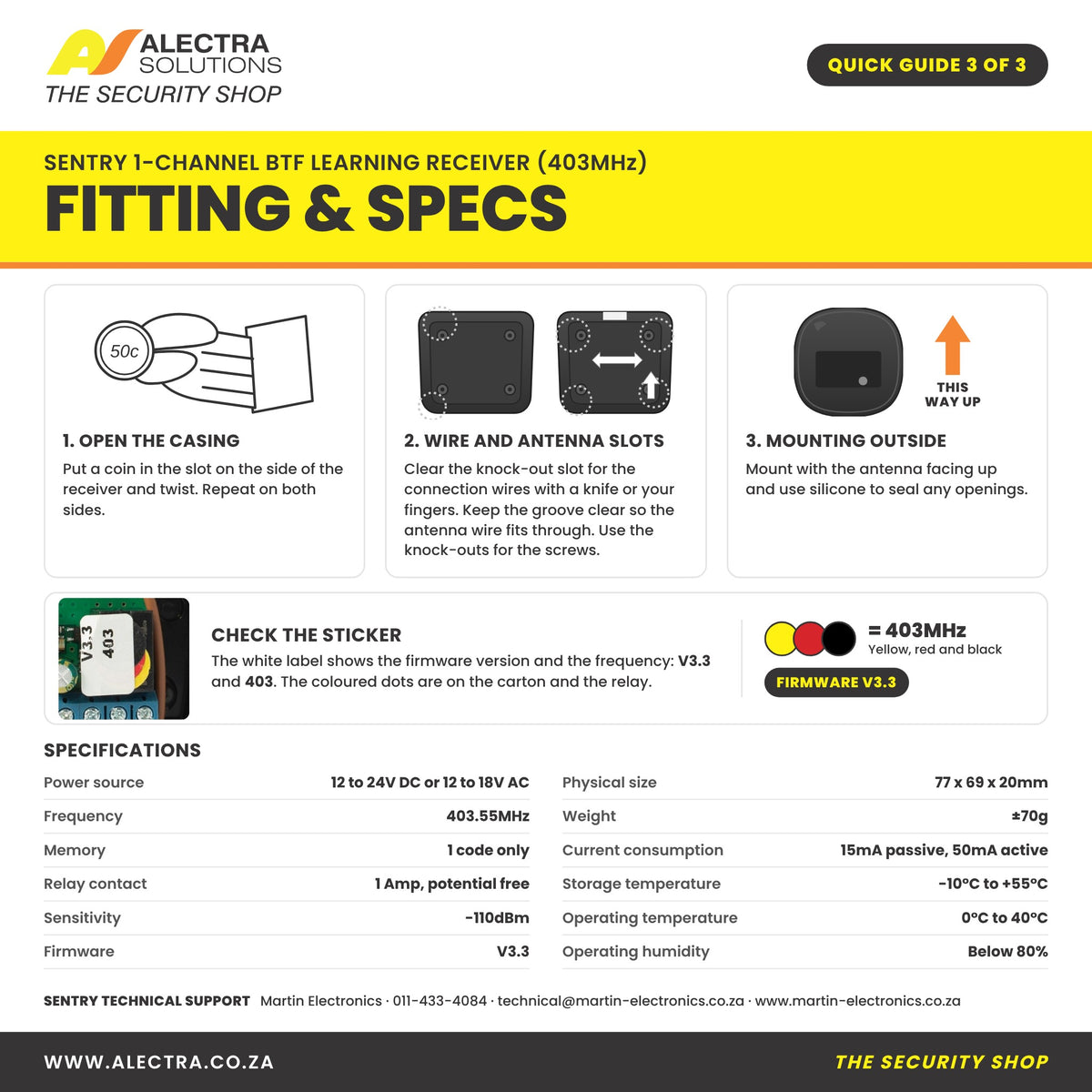

Sentry learning receiver quick guide 3 of 3: fitting and specs
By Sentry

Sentry 1 Channel Learning Receiver 403MHz (Binary, Trinary, French)

Sentry 1 channel learning (BTF) receiver on 403.55MHz. Learns one master code from a Sentry binary, trinary or French DIP switch remote. One 1 Amp potential-free relay, pulse or latch, 12 to 24V DC or 12 to 18V AC.

  • 1 master codeBinary, trinary, French
  • 403.55MHzYellow, red, black dot
  • 1 Amp relayPulse or latch
  • 12 to 24V DCOr 12 to 18V AC
R 239.00
Collect at a branch, no charge
  • Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45
    Get directions

Choose Pickup at checkout and we message you when your order is ready to collect.
Pairs well with
Sentry 1 Button Binary DIP Switch Gate Remote 403MHz
R 155.00
Sentry 3 Button Binary DIP Switch Gate Remote 403MHz
R 185.00
Sentry 1 Button Self-Learning Gate Remote 403MHz
R 150.00
Sentry 3 Button Self-Learning Gate Remote 403MHz
R 165.00

The Sentry 1 channel learning receiver, also called the BTF receiver, works with Sentry 403MHz DIP switch remotes in binary, trinary and French codes. It learns one master code: set every remote to that code and they all open the gate. Change the code any time, and the old one stops working, which is handy when a remote goes missing.

Which remotes work with it?

Sentry 403MHz binary, trinary and French DIP switch remotes, such as the Sentry 1 button binary remote and the 3 button binary remote. Remotes copied onto a Sentry self-learning remote work too.

Wiring and settings

Connect 12 to 24V DC or 12 to 18V AC to POS and NEG. The 1 Amp potential-free relay has COM, NO and NC terminals, and a jumper chooses pulse or latch, so it suits gate motors, garage doors, alarms and electric fences. For magnetic locks, add an extra relay or relay board. Alectra Solutions supplies the receiver only.

How to tell it apart

Look for the yellow, red and black dot sticker on the carton and relay. The label shows firmware V3.3 and 403. Our quick guides in the photos cover connecting, adding remotes and fitting.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • Learns DIP switch remotes. Works with Sentry 403MHz binary, trinary and French remotes.
  • One master code. Learn one code, then set every remote to match it and they all open the gate.
  • Change the code anytime. Program a new code and the old one stops working, handy when a remote goes missing.
  • 403.55MHz. Look for the yellow, red and black dot sticker on the box and relay.
  • 1 Amp relay, pulse or latch. Potential-free COM, NO and NC, with a jumper to choose pulse or latch.
  • Flexible power input. Runs on 12 to 24V DC or 12 to 18V AC.
Specifications
BrandSentry (made by Martin Electronics)
Channels1 relay output
CodesBinary, trinary and French
Memory1 code (master code)
Frequency403.55MHz (yellow, red and black dot sticker)
Relay contact1 Amp, potential free (COM, NO, NC)
Output modesPulse or latch (jumper)
Power source12 to 24V DC or 12 to 18V AC
Current consumption15mA passive, 50mA active
Sensitivity-110dBm
FirmwareV3.3
Operating temperature0°C to 40°C
Size77 x 69 x 20mm
WeightAbout 70g
Warranty24 months Sentry, carry-in
Sold asSingle receiver
Not in the box
  • Remotes (sold separately)
  • Power supply
  • Fitting and wiring (done by you or your installer)
Questions people ask
What does BTF mean?

Binary, Trinary and French, the three Sentry 403MHz DIP switch code types this receiver learns.

How many remotes can it take?

It stores one master code, and every remote set to that code opens it.

A remote went missing. What now?

Program a new code into the receiver and set your remaining remotes to it. The old code stops working.

Will it work with Sentry code hopping remotes?

No. It learns binary, trinary and French DIP switch codes only.

Can it latch for an alarm or lights?

Yes. A jumper sets pulse or latch.

Will Alectra wire it in for me?

No. Alectra Solutions supplies the receiver only. You or your installer connect it using the quick guides.
