Sentry 1 Button Binary DIP Switch Gate Remote 403MHz
Sentry 1 button binary DIP switch remote on 403.55MHz. Set your own code with 12 DIP switches (up to 4096 codes). About 40m range, one 12V A23 battery. For Sentry 403MHz binary receivers.
- 1 buttonOne gate or door
- 12 DIP switchesSet your own code
- 403.55MHzBinary fixed code
- About 40mRange
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.

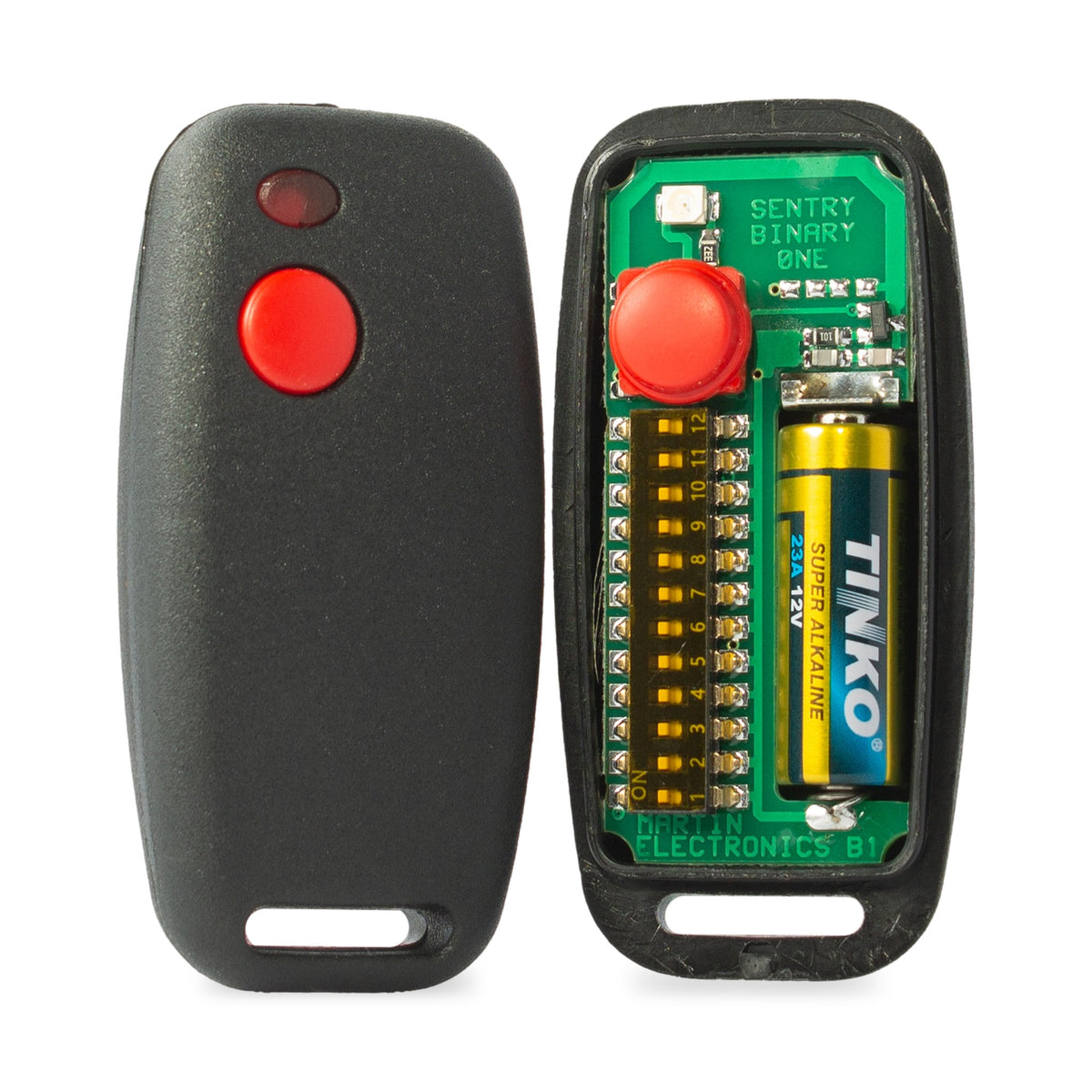

The Sentry 1 button binary remote is Sentry's fixed code DIP switch remote on 403.55MHz, the circuit board marked Sentry Binary One. You set the code yourself with the 12 DIP switches inside the case, so it can match your receiver or your existing remotes, with up to 4096 codes to choose from. It reaches about 40m and runs on one 12V A23 battery. For three buttons, see the Sentry 3 button binary remote.
Which receivers does it work with?
This remote pairs with Sentry 403MHz binary DIP switch receivers, such as the Sentry 1 channel binary DIP switch receiver 403MHz. It can also be the master code for the Sentry 1 channel learning receiver 403MHz.
Setting the code
Open the case and set the 12 DIP switches to the same positions as your receiver or your other remotes. There is no learning step: once the switches match, the remote works. To add more remotes later, set them to the same code, or copy this remote onto a Sentry 403MHz self-learning remote. Alectra Solutions supplies the remote only.
Battery and warranty

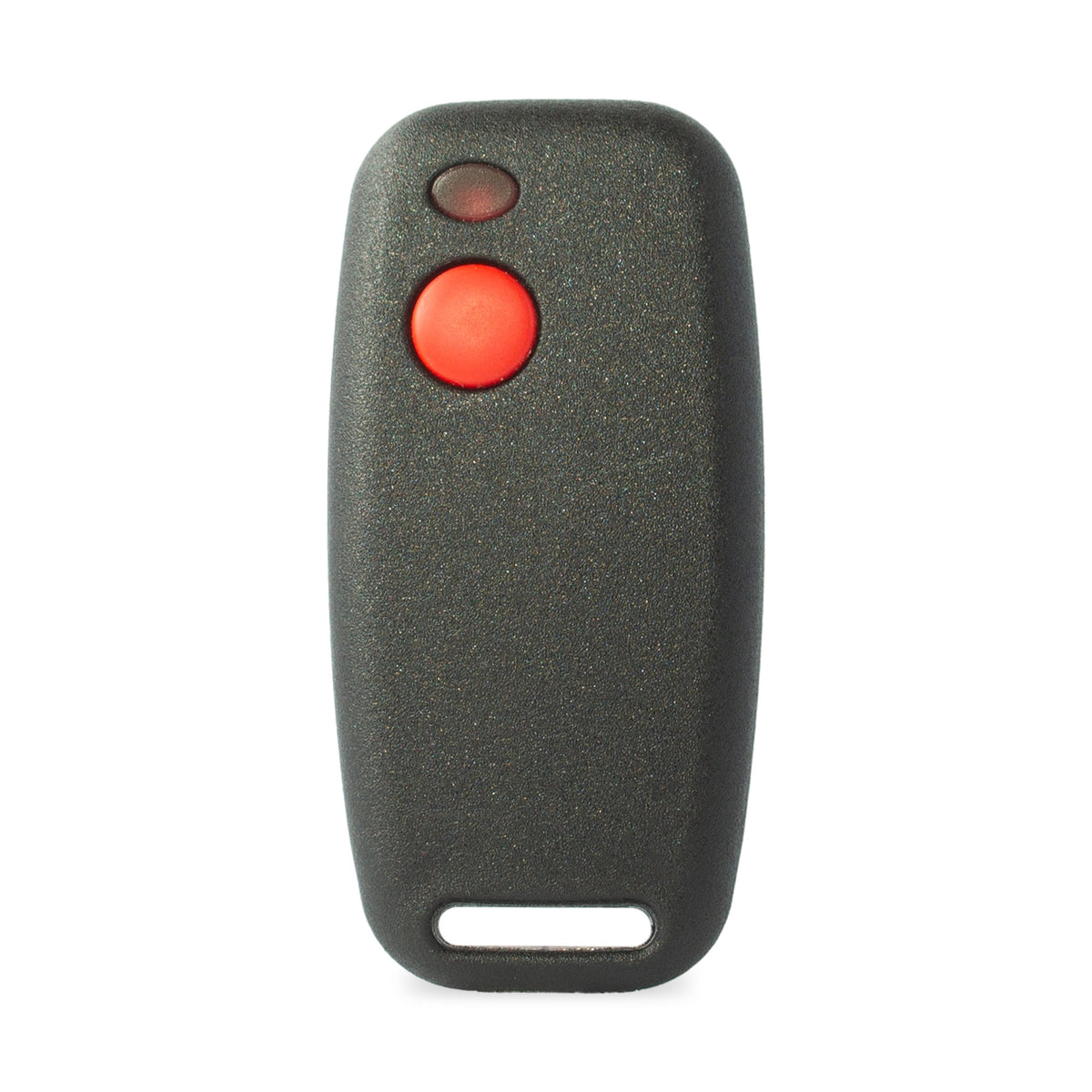

A red LED flashes on every press. The remote runs on one 12V A23 battery and carries Sentry's 24 month carry-in warranty, batteries excluded. In the photos it has a black case with one red button and a key ring slot.
Key features
- 12 DIP switch coding. Set your own code, with up to 4096 codes to choose from.
- One button. One remote for one gate, door or receiver.
- 403.55MHz binary. Pairs with Sentry 403MHz binary DIP switch receivers.
- Easy to copy. Copy it onto a Sentry 403MHz learning remote when you need more remotes.
- LED shows each press. Flashes red so you know the signal was sent.
- 12V A23 battery. Easy to find and replace when it runs flat.
Specifications
| Brand | Sentry (made by Martin Electronics) |
|---|---|
| Buttons | 1 |
| Coding | Binary fixed code, 12 DIP switches (4096 codes) |
| Frequency | 403.55MHz |
| Works with | Sentry 403MHz binary DIP switch receivers |
| Range | About 40m |
| Battery | 1 x 12V A23 |
| LED | Red |
| Colour | Black case, red button |
| Warranty | 24 months Sentry, carry-in, batteries excluded |
| Sold as | Single remote |
Not in the box
- Receiver or gate motor
- Setting the code (done by you or your installer)
Questions people ask
Open the case and set the 12 DIP switches to match your receiver or your existing remote, switch for switch. There is no learning step.
Yes. The circuit board inside is marked Sentry Binary One.
No. This is a binary fixed code remote. It works with Sentry 403MHz binary DIP switch receivers, and as the master code on the Sentry 403MHz learning receiver.
Yes. Set another binary remote to the same DIP switch code, or copy it onto a Sentry 403MHz self-learning remote.
One 12V A23 battery.
No. Alectra Solutions supplies the remote only. You or your installer set the DIP switches.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
