Sentry 3 Button Binary DIP Switch Gate Remote 403MHz
Sentry 3 button binary DIP switch remote on 403.55MHz. 12 DIP switches (up to 4096 codes), split-code mode for complexes, about 40m range. 12V 23A battery fitted. For Sentry 403MHz binary receivers.
- 3 buttonsThree receivers
- 12 DIP switchesSet your own code
- Split-codeFor complexes
- About 40mRange
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.
The Sentry 3 button binary remote is Sentry's 403.55MHz DIP switch remote with three buttons. You set the code with the 12 DIP switches inside, with up to 4096 codes to choose from, and each button can work its own Sentry binary receiver. It reaches about 40m and comes with a 12V 23A battery fitted. For one button, see the Sentry 1 button binary remote.
Built for homes and complexes
Sentry's split-code mode lets several homes share one gate code while each unit keeps its own buttons. In a townhouse complex, one button opens the shared gate and the other buttons run only that owner's garage or receivers.
Which receivers does it work with?

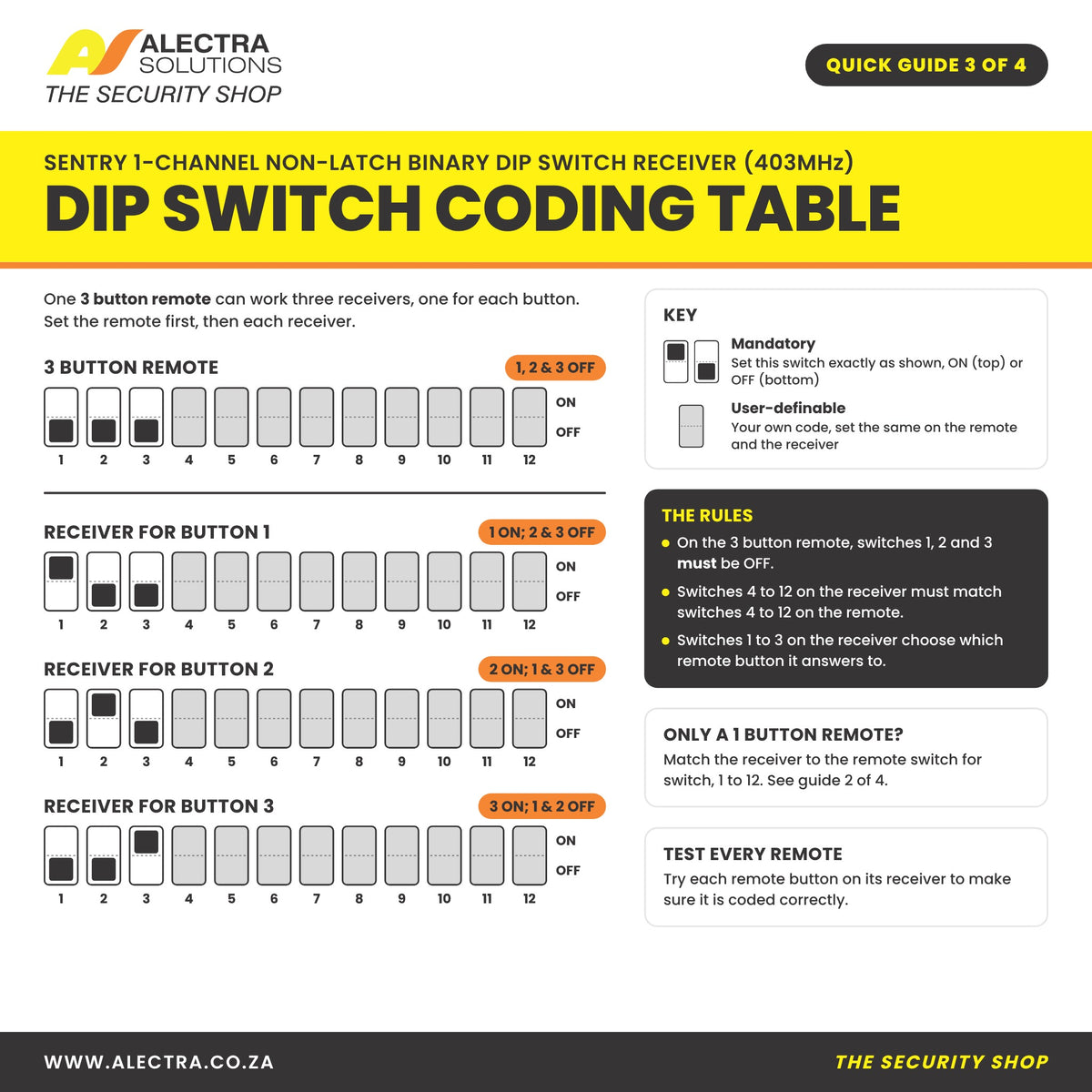

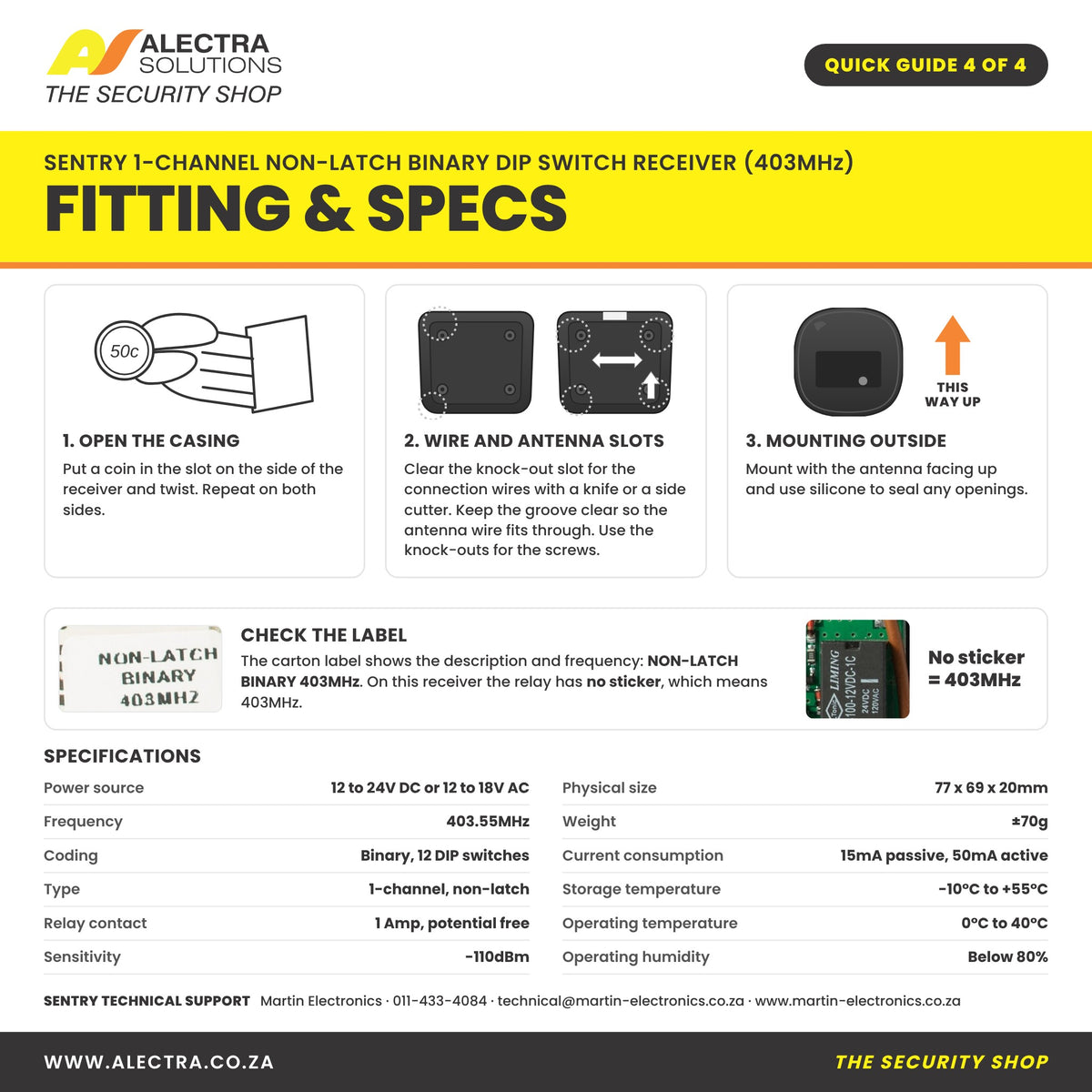

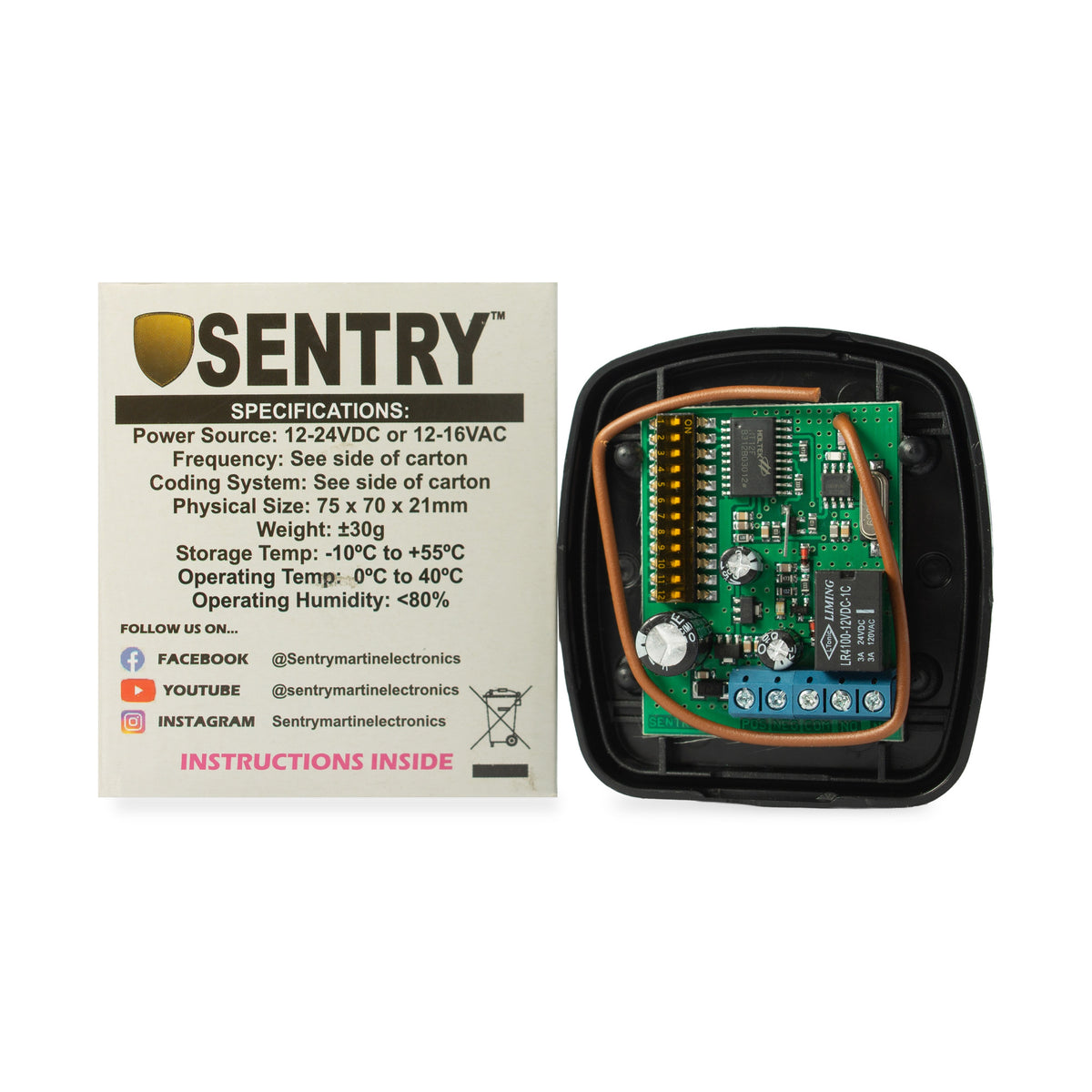

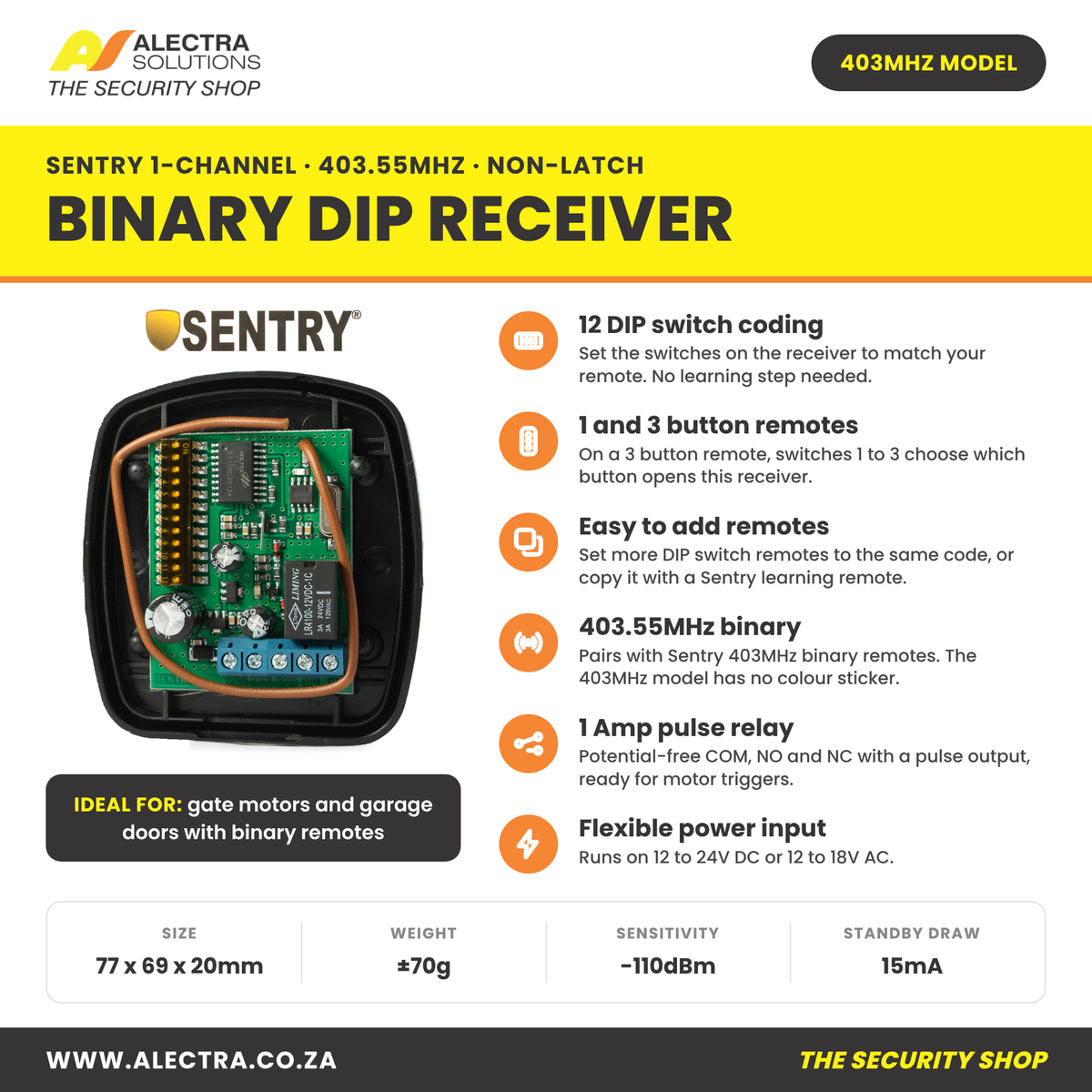

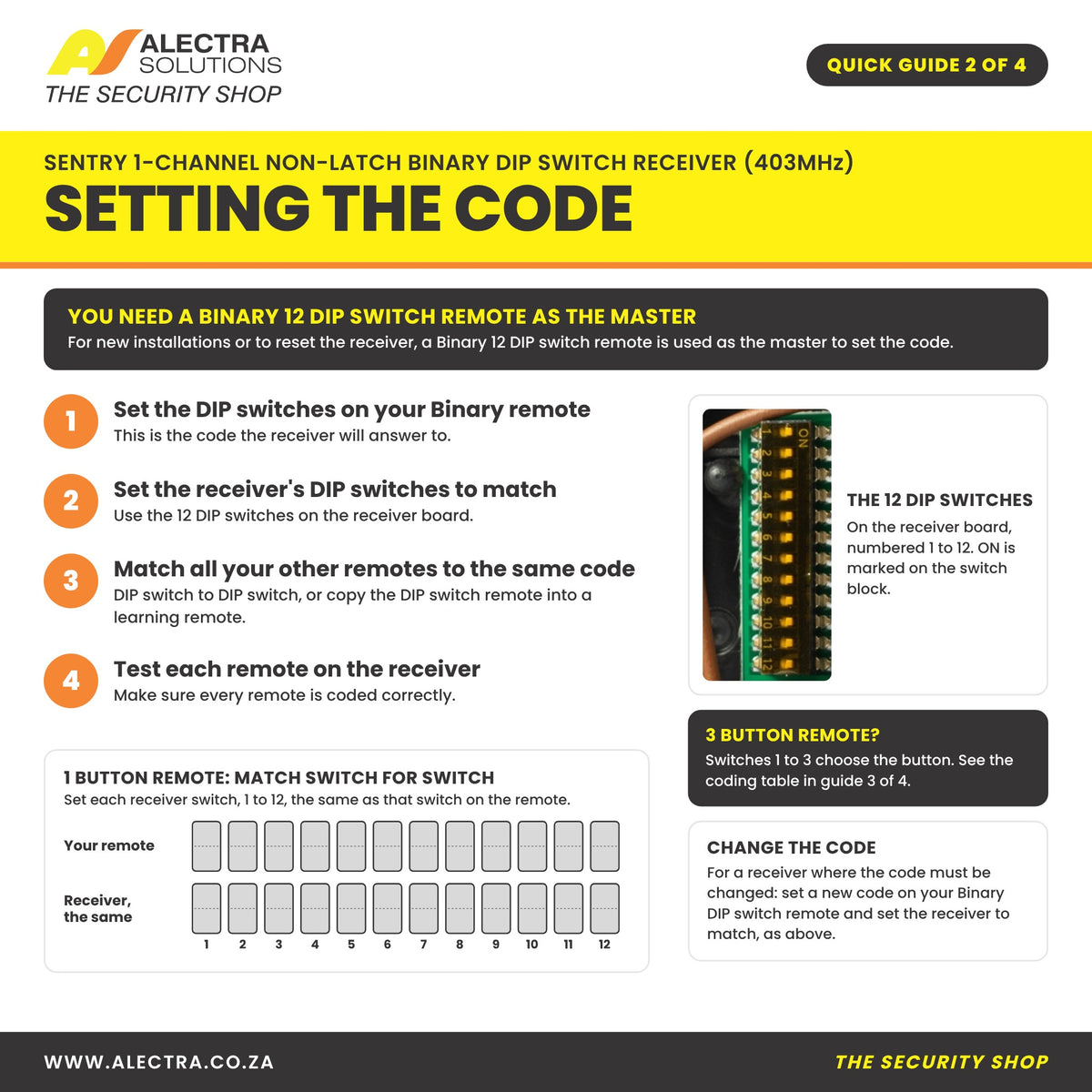

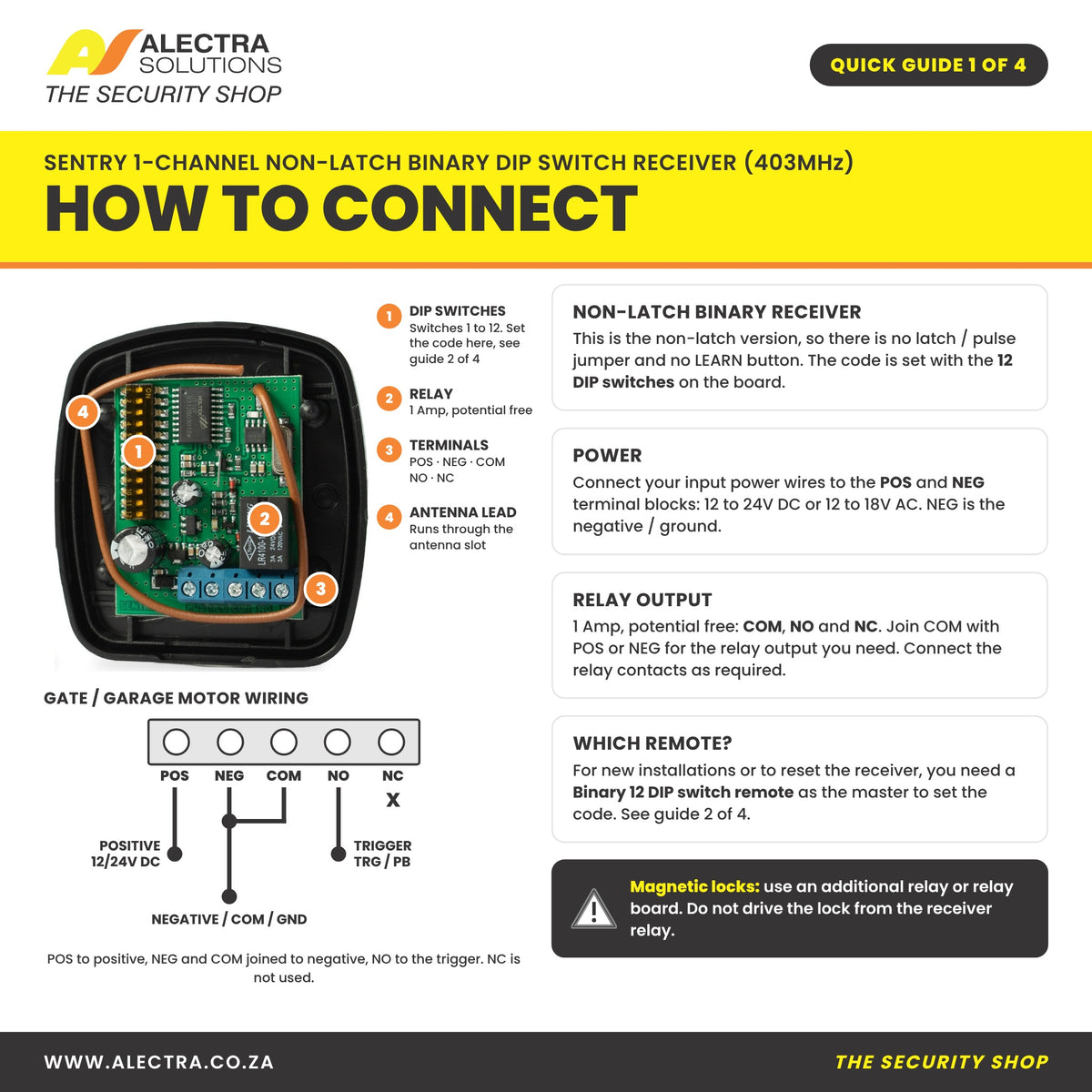

It pairs with Sentry 403MHz binary DIP switch receivers, such as the Sentry 1 channel binary DIP switch receiver 403MHz. On that receiver, DIP switches 1 to 3 choose which of the three buttons opens it. It can also be the master code for the Sentry 1 channel learning receiver 403MHz.
Adding remotes later

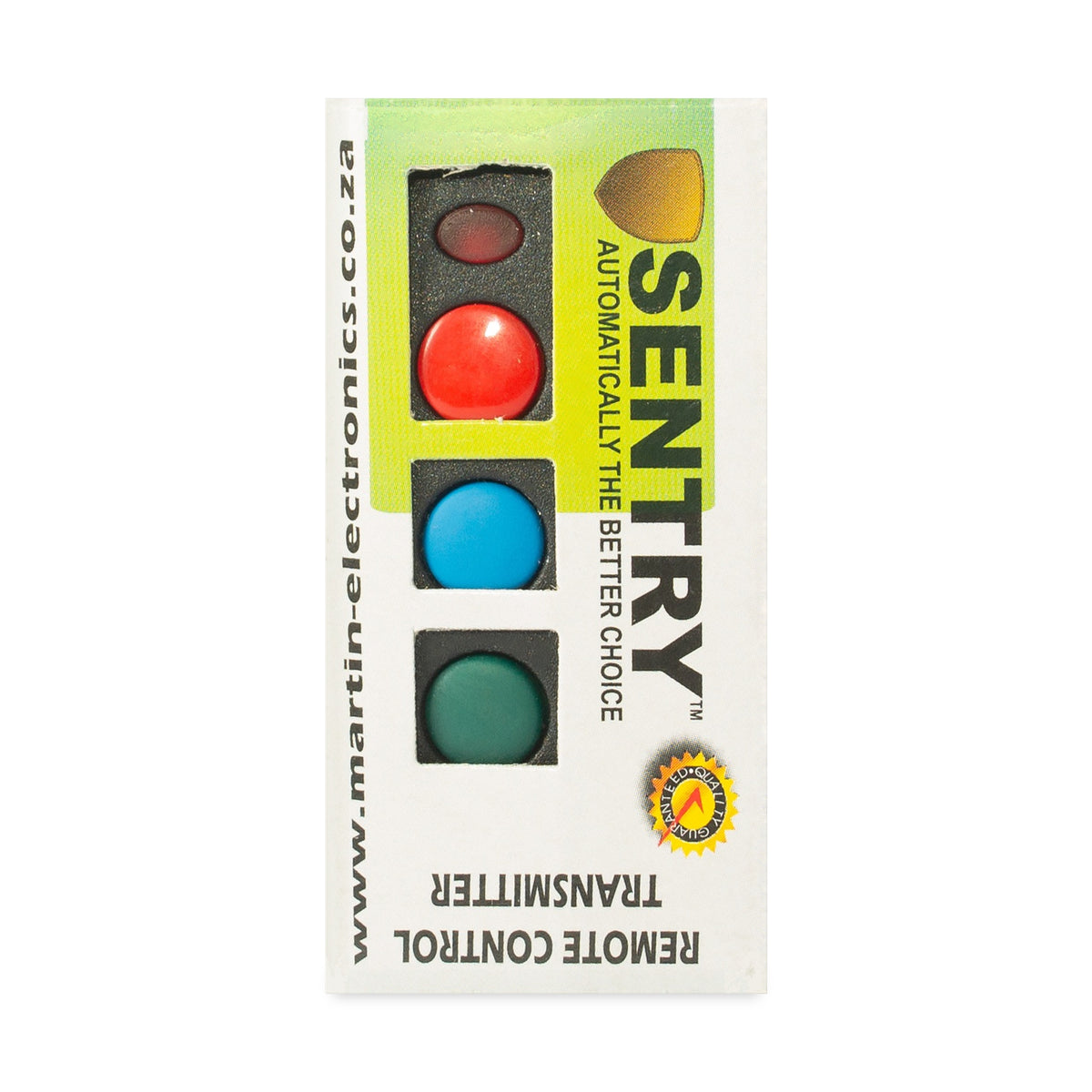

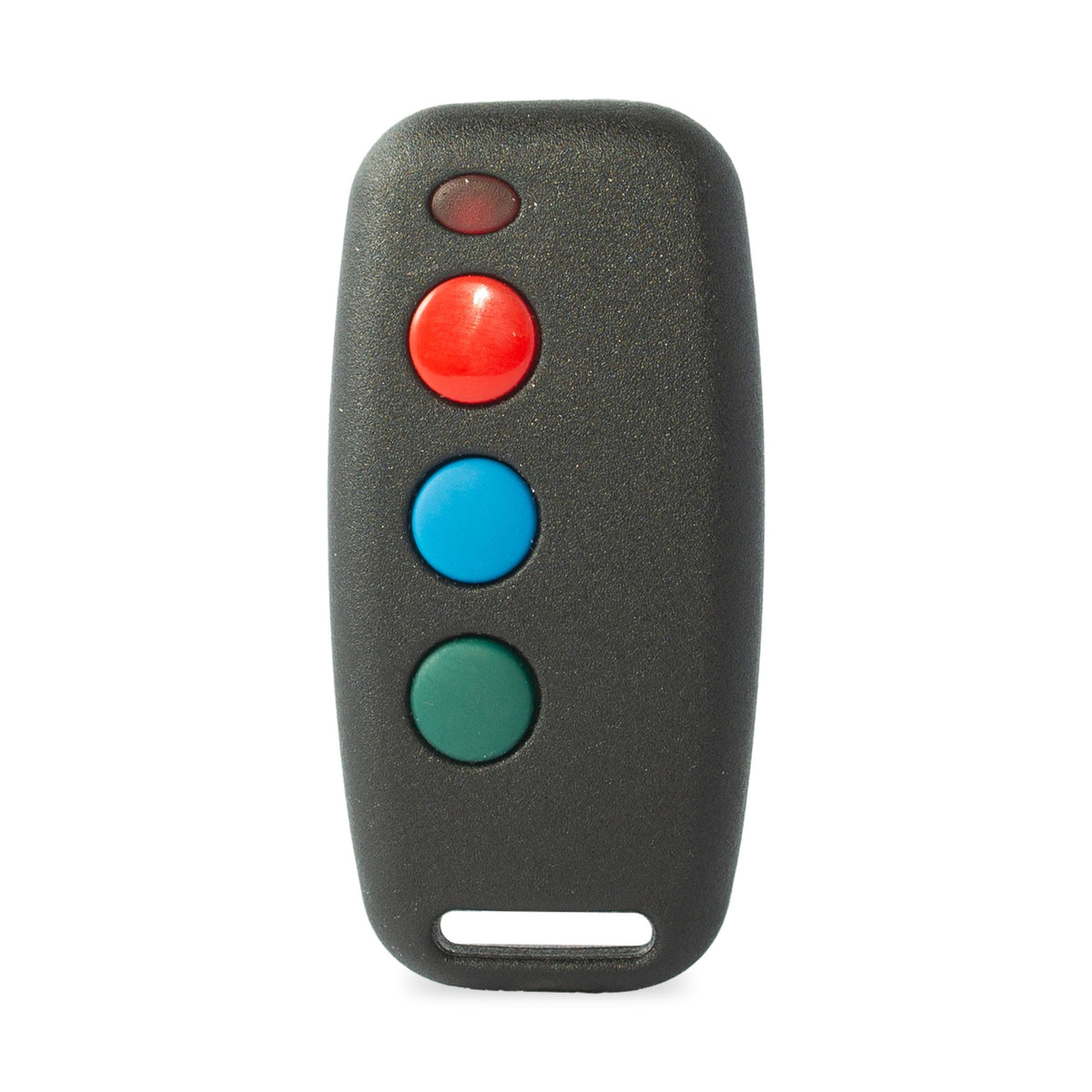

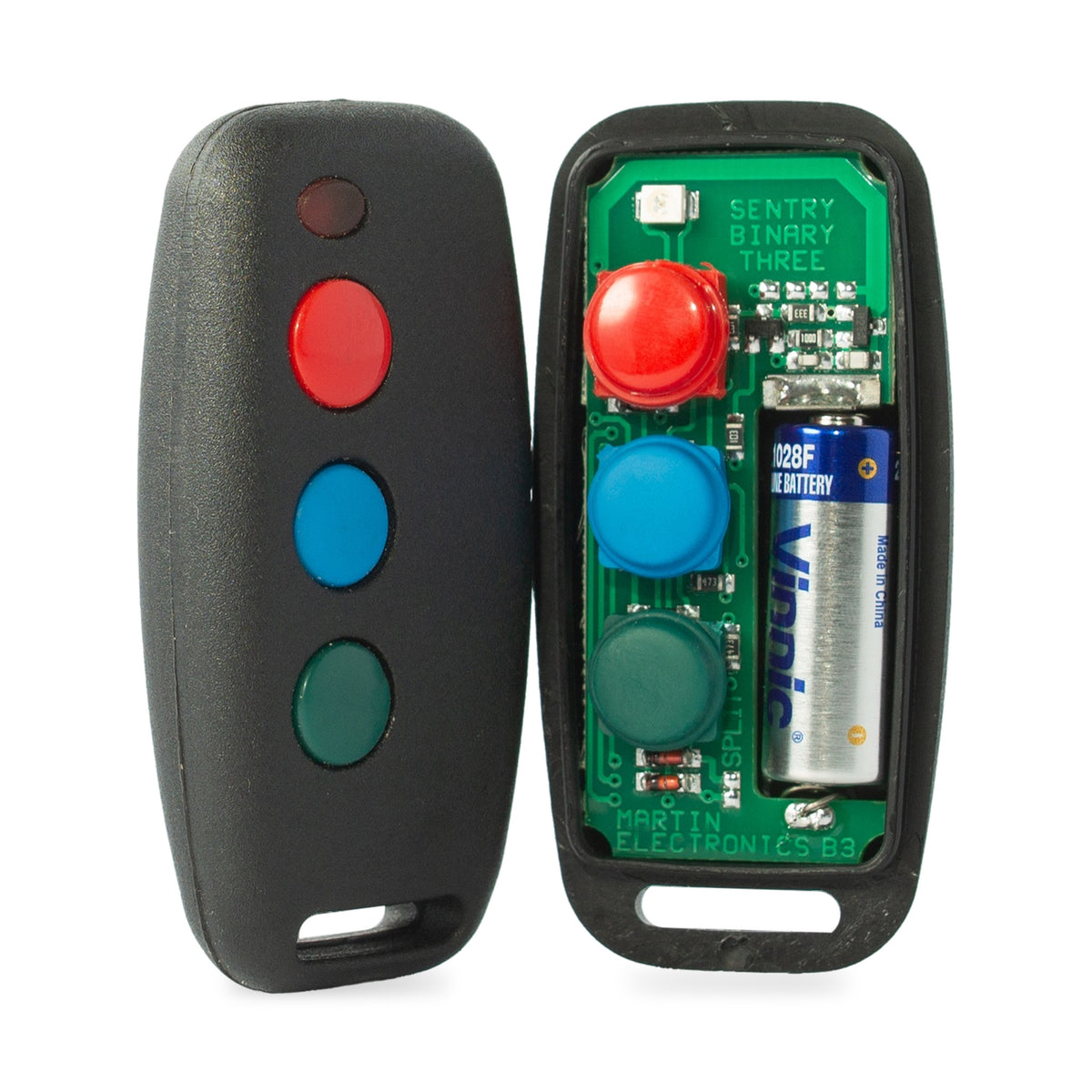

Set more binary remotes to the same code, or copy this one onto a Sentry 3 button self-learning remote. The remote carries Sentry's 24 month carry-in warranty, batteries excluded. In the photos it has a black case with red, blue and green buttons. Alectra Solutions supplies the remote only.

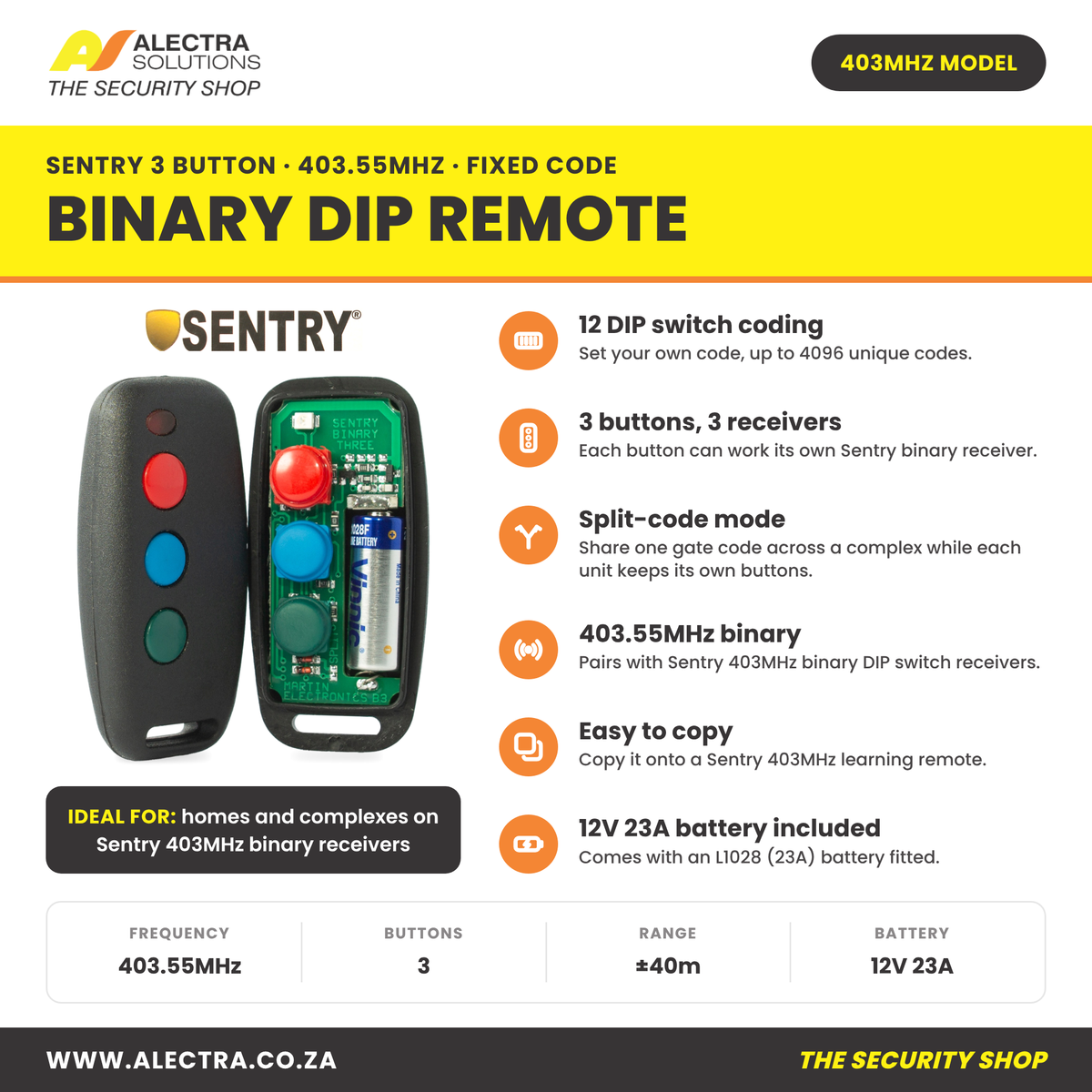

Key features
- 12 DIP switch coding. Set your own code, with up to 4096 codes to choose from.
- 3 buttons, 3 receivers. Each button can work its own Sentry binary receiver.
- Split-code mode. Share one gate code across a complex while each unit keeps its own buttons.
- 403.55MHz binary. Pairs with Sentry 403MHz binary DIP switch receivers.
- Easy to copy. Copy it onto a Sentry 403MHz learning remote.
- Battery included. Comes with an L1028 (23A) 12V battery fitted.

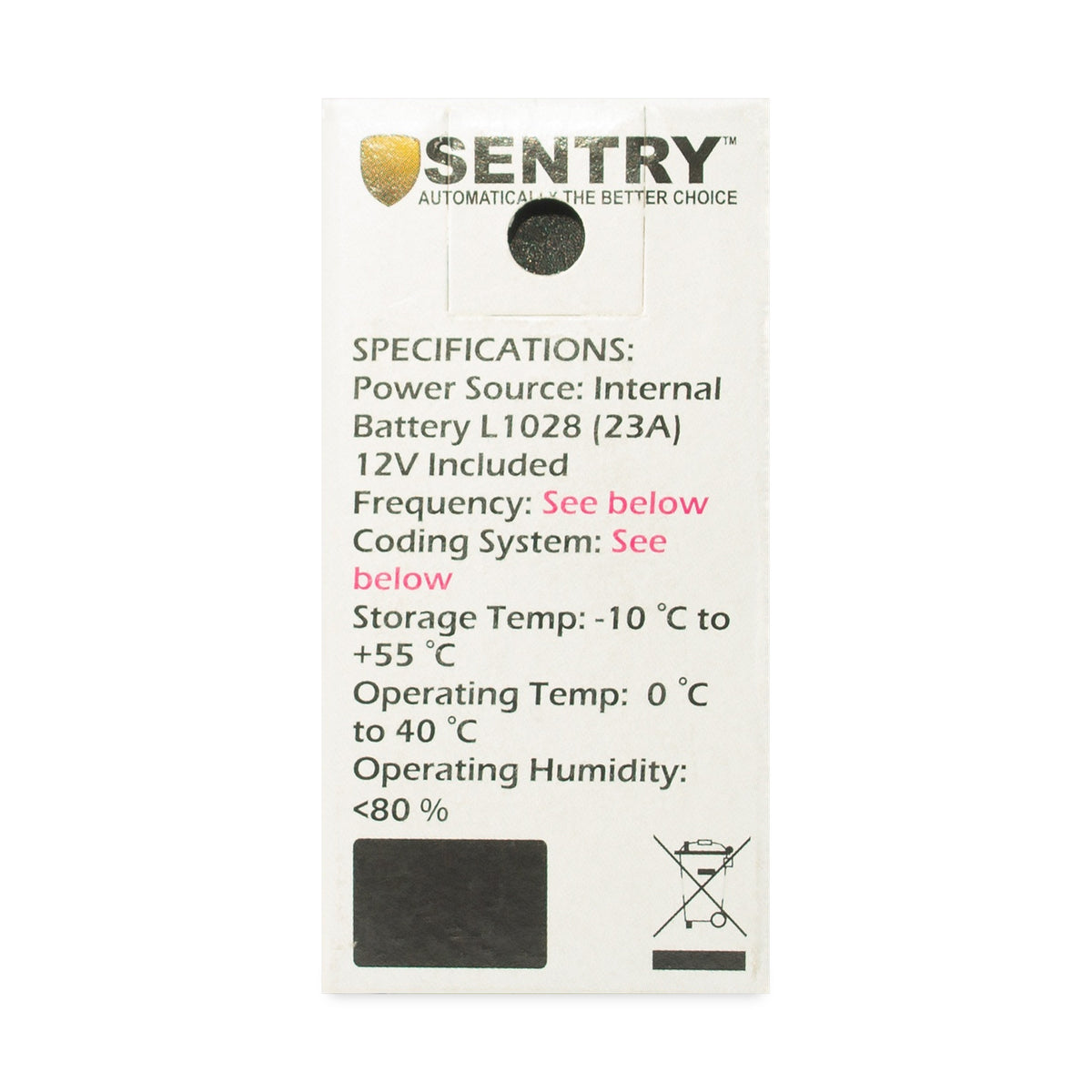

Specifications
| Brand | Sentry (made by Martin Electronics) |
|---|---|
| Buttons | 3 |
| Coding | Binary fixed code, 12 DIP switches (4096 codes), split-code mode |
| Frequency | 403.55MHz |
| Works with | Sentry 403MHz binary DIP switch receivers |
| Range | About 40m |
| Battery | 1 x 12V 23A (L1028), included |
| Operating temperature | 0°C to 40°C |
| Operating humidity | Below 80% |
| Colour | Black case, red, blue and green buttons |
| Warranty | 24 months Sentry, carry-in, batteries excluded |
| Sold as | Single remote |
Not in the box
- Receiver or gate motor
- Setting the code (done by you or your installer)
Questions people ask
It lets a group of remotes share one code for a common gate while the other buttons stay unique to each owner. It suits townhouse complexes and office parks.
On a Sentry binary DIP switch receiver, switches 1 to 3 choose which of the three buttons opens that receiver.
No. This is a binary fixed code remote for Sentry 403MHz binary receivers.
Yes. Set another binary remote to the same code, or copy it onto a Sentry 403MHz self-learning remote.
A 12V 23A (L1028) battery, which comes fitted.
No. Alectra Solutions supplies the remote only. You or your installer set the DIP switches.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
