By Nemtek

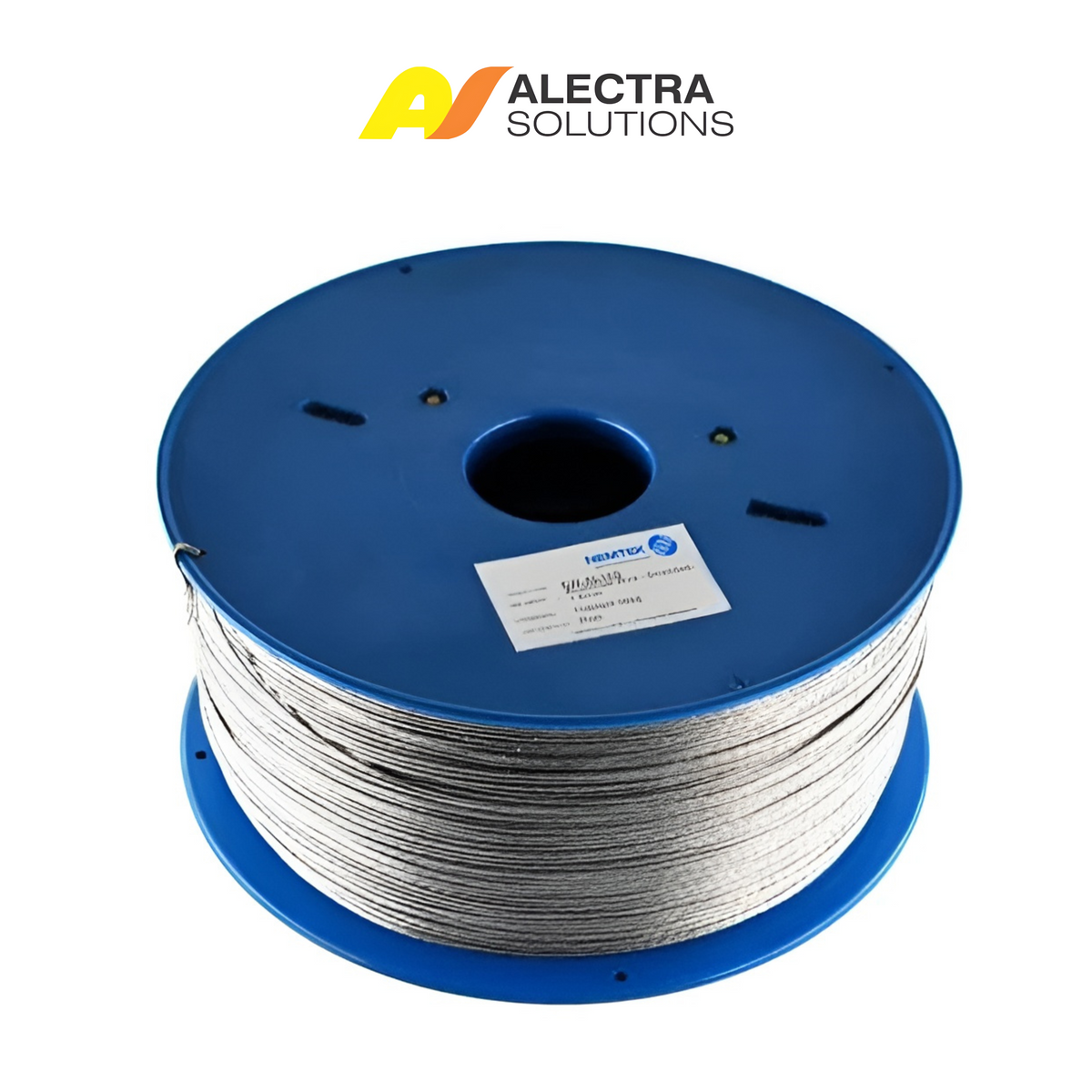

Nemtek 1.6mm Aluminium Braided (Stranded) Electric Fence Wire 500m

Half-size 500m roll of Nemtek 1.6mm stranded (braided) aluminium alloy electric fence wire. Low resistance at 27 to 31 ohm/km, 10 to 11% elongation, for sites 5km or more from the coast. Tension with the gold 8kg spring.

  • 500mHalf roll
  • 1.6mmStranded aluminium alloy
  • 27 to 31 ohm/kmResistance
  • 5km+From the coast (Nemtek)
Regular price R 399.00
Collect at a branch, no charge
  • Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00
    Get directions
  • Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45
    Get directions

Choose Pickup at checkout and we message you when your order is ready to collect, usually within 24 hours. You can pay online, or pay at the branch when you collect.

This is the 500m roll of Nemtek 1.6mm stranded aluminium electric fence wire: half the full roll, so you only buy what a smaller fence, an extra line or a repair needs. It is the same aluminium alloy wire as the 1000m roll, sold by Nemtek as stranded wire and often searched for as Nemtek braided wire. Low resistance (Nemtek quotes 27 to 31 ohm/km) means less voltage lost along the fence, and the alloy gives good corrosion resistance for most environments 5km or more from the coast.

500m or 1000m?

Pick this 500m roll for a short boundary, for adding a line or two to an existing fence, or to keep a repair length in the store room. For a full new perimeter, or six to eight lines around a bigger stand, the 1000m roll goes further on one roll with fewer roll ends to join.

Which fence wire do you need?

Aluminium is Nemtek's low resistance wire: 27 to 31 ohm/km against 175 ohm/km for the 1.2mm galvanised wire and 700 ohm/km for the 1.2mm 304 stainless steel wire. Galvanised is harder to cut and suits inland fences where corrosion is low; stainless is for corrosive environments and properties nearer the coast. If you want the aluminium as one strand rather than several, see the 1.6mm solid aluminium alloy wire, which Nemtek rates at 27 ohm/km with a 60 to 70kg breaking strength.

Joining and tensioning 1.6mm aluminium wire

Nemtek specifies its 6mm aluminium ferrules for permanent crimped joins on 1.6mm aluminium wire, and the 6mm bolt-type line clamp (wire up to 1.6mm) where you want a join you can undo. For tension, Nemtek rates the gold 8kg Hybrid Compression Spring 2 for 1.6mm aluminium; its silver 5kg Compression Spring 1 is rated for wire up to 1.2mm only. Hook the spring to the insulator with a large tail spring hook.

Energizer and lead-out

Run the fence from a Nemtek Merlin Stealth M18S, Merlin Stealth M28S or Wizord 4i energizer. For the lead-out and earth connection, Nemtek lists its A-Series aluminium HT cable as the ideal cable when aluminium wire is used; we list Nemtek single core HT cable in 30m, 50m and 100m rolls. The fence must be installed and certified by a registered electric fence installer. Alectra supplies the equipment only.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • The half roll. 500m of the same wire as the 1000m roll, for smaller fences, extra lines and repairs.
  • Low resistance. Nemtek quotes 27 to 31 ohm/km, a fraction of galvanised steel's 175 ohm/km, so less voltage is lost along the fence.
  • Aluminium alloy. Good corrosion resistance for most environments 5km or more from the coastline, in Nemtek's words.
  • Stranded and easy to work with. Several alloy strands twisted into one 1.6mm wire. Nemtek describes its stranded wires as easy to work with.
  • 10 to 11% elongation. Nemtek's published elongation figure for this wire.
  • Needs the gold 8kg spring. Nemtek rates the Hybrid Compression Spring 2 for 1.6mm aluminium wire; the silver 5kg spring stops at 1.2mm.
  • Crimps with 6mm aluminium ferrules. Nemtek's 6mm aluminium ferrules are made for this 1.6mm wire. The 6mm bolt-type line clamp fits it too.
Specifications
Wire typeStranded (braided) aluminium alloy
Diameter1.6mm
Roll length500m
Resistance27 to 31 ohm/km (Nemtek quotes both figures)
Elongation10 to 11%
Corrosion resistanceGood for most environments, 5km or more from the coastline
Matching ferruleNemtek 6mm aluminium ferrules
Matching line clampNemtek 6mm bolt-type line clamp (wire up to 1.6mm)
Matching springHybrid Compression Spring 2, gold 8kg
Matching HT cableNemtek A-Series aluminium HT cable (Nemtek's recommendation with aluminium wire)
Nemtek codeEW-AL16S/500
Sold asRoll of 500m
Not in the box
  • Ferrules, line clamps and tensioner springs
  • HT cable for the lead-out and earth connection
  • Brackets and bobbin insulators
Manuals and documents
Questions people ask
Why buy the 500m roll instead of the 1000m?

It is the same Nemtek wire in half the length. Choose it for a short boundary, adding lines to an existing fence or keeping a repair length; for a full new perimeter the 1000m roll means fewer roll ends to join.

Is this the Nemtek braided wire?

Yes, it is what many shoppers call Nemtek braided wire. Nemtek's own term is stranded: several aluminium alloy strands twisted into one 1.6mm wire.

Is the resistance 27 or 31 ohm/km?

Nemtek's product page says 27 ohm/km and its fence wire data sheet says 31 ohm/km, so we quote both. Either way it is a fraction of the 175 ohm/km of 1.2mm galvanised wire.

Can I use the silver 5kg spring with 1.6mm aluminium wire?

Nemtek rates the silver 5kg Compression Spring 1 for wire up to 1.2mm. For 1.6mm aluminium it specifies the gold 8kg Hybrid Compression Spring 2.

Is aluminium electric fence wire suitable near the coast?

Nemtek gives it good corrosion resistance for most environments 5km or more from the coastline. Closer to the sea, Nemtek recommends stainless steel wire.

How do I join two lengths?

Crimp them with Nemtek's 6mm aluminium ferrules for a permanent joint, or use the 6mm bolt-type line clamp if you may want to undo the join later.

How much fence does 500m cover?

Divide by the number of lines. On a 6 line fence, 500m of wire covers roughly 83m of wall before you allow for tails, joins and springs; on 8 lines, roughly 62m.

Do I need an installer?

Yes. An electric fence must be installed and certified by a registered electric fence installer, who also issues the compliance certificate. Alectra supplies the wire, cable and fittings only.
