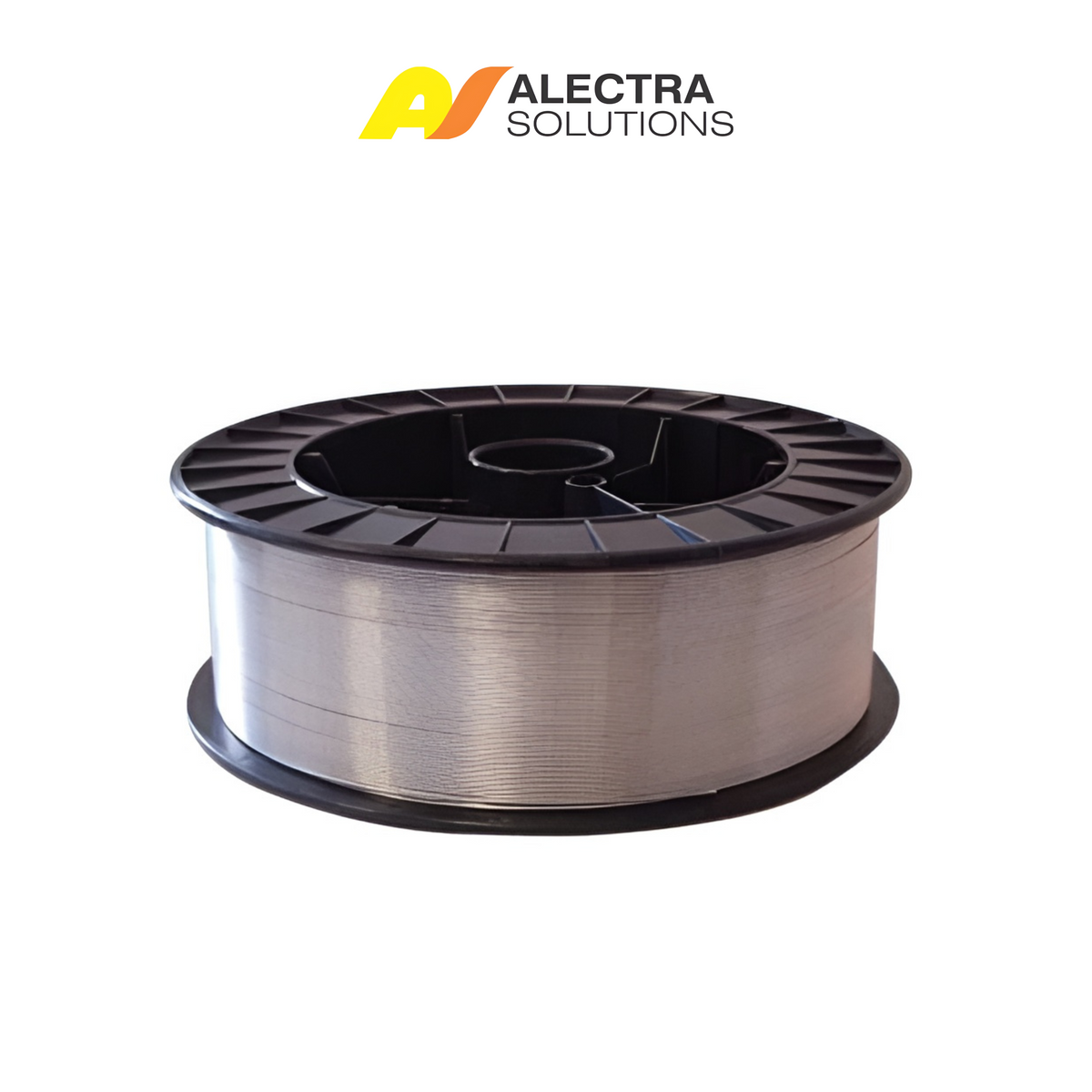

Nemtek 1.6mm Solid Aluminium Alloy Electric Fence Wire 1000m
Nemtek 1.6mm solid aluminium alloy electric fence wire, 1000m roll. 27 ohm/km, 60 to 70kg breaking strength, 10 to 11% elongation. Low resistance for longer fences; good corrosion resistance 5km or more from the coast.
- 1000mRoll length
- 27 ohm/kmResistance
- 60 to 70kgTensile breaking strength
- 1.6mmSolid aluminium alloy
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect, usually within 24 hours. You can pay online, or pay at the branch when you collect.
Nemtek 1.6mm solid aluminium electric fence wire on a 1000m roll: one solid strand of aluminium alloy rather than the twisted strands of the 1.6mm stranded aluminium wire. Nemtek rates it at 27 ohm/km, a tensile breaking strength of 60 to 70kg and 10 to 11% elongation. In Nemtek's words, the low electrical resistance allows for longer fences, and the alloy gives good corrosion resistance for most environments 5km or more from the coastline.
Solid or stranded aluminium?
Both are 1.6mm Nemtek aluminium alloy and both take the same ferrules, clamp and spring, so the choice is about the wire itself. The solid wire is a single strand with a published 60 to 70kg breaking strength. The stranded 1000m and stranded 500m rolls are several finer strands twisted together, the construction Nemtek describes as easy to work with.
Which fence wire do you need?
At 27 ohm/km this is one of the lowest resistance fence wires Nemtek makes, so it loses less voltage over a long run than the 1.2mm galvanised wire at 175 ohm/km or the 1.2mm 304 stainless steel wire at 700 ohm/km. Choose galvanised where you want a harder-to-cut steel wire on an inland fence, and stainless for corrosive environments or sites nearer the coast.
Joining and tensioning solid aluminium wire
Nemtek specifies its 6mm aluminium ferrules for permanent crimped joins on 1.6mm aluminium wire, and the 6mm bolt-type line clamp (wire up to 1.6mm) for a join you can undo. For tension, Nemtek rates the gold 8kg Hybrid Compression Spring 2 for 1.6mm aluminium; the silver 5kg Compression Spring 1 is for wire up to 1.2mm only. Link the spring to the insulator with a large tail spring hook.
Energizer and lead-out
Run the fence from a Nemtek Merlin Stealth M18S, Merlin Stealth M28S or Wizord 4i energizer. For the lead-out and earth connection, Nemtek lists its A-Series aluminium HT cable as the ideal cable when aluminium wire is used; we list Nemtek single core HT cable in 30m, 50m and 100m. The fence must be installed and certified by a registered electric fence installer. Alectra supplies the equipment only.
Key features
- Low resistance for longer fences. Nemtek quotes 27 ohm/km and says the low electrical resistance allows for longer fences.
- 60 to 70kg breaking strength. Nemtek's published tensile breaking strength for this wire, with 10 to 11% elongation.
- One solid strand. A single 1.6mm strand of aluminium alloy, the alternative to Nemtek's stranded aluminium wire.
- Aluminium alloy. Good corrosion resistance for most environments 5km or more from the coastline, in Nemtek's words.
- Tension with the gold 8kg spring. Nemtek rates the Hybrid Compression Spring 2 for 1.6mm aluminium; the silver 5kg spring is for wire up to 1.2mm.
- Crimps with 6mm aluminium ferrules. Nemtek's 6mm aluminium ferrules are made for 1.6mm aluminium wire. The 6mm bolt-type line clamp fits too.
- Full 1000m roll. One roll, Nemtek code EW-AL16. Nemtek does not publish a roll weight.
Specifications
| Wire type | Solid aluminium alloy, single strand |
|---|---|
| Diameter | 1.6mm |
| Roll length | 1000m |
| Resistance | 27 ohm/km |
| Tensile breaking strength | 60 to 70kg |
| Elongation | 10 to 11% |
| Corrosion resistance | Good for most environments, 5km or more from the coastline |
| Matching ferrule | Nemtek 6mm aluminium ferrules |
| Matching line clamp | Nemtek 6mm bolt-type line clamp (wire up to 1.6mm) |
| Matching spring | Hybrid Compression Spring 2, gold 8kg |
| Matching HT cable | Nemtek A-Series aluminium HT cable (Nemtek's recommendation with aluminium wire) |
| Nemtek code | EW-AL16 |
| Sold as | Roll of 1000m |
Not in the box
- Ferrules, line clamps and tensioner springs
- HT cable for the lead-out and earth connection
- Brackets and bobbin insulators
Manuals and documents
Questions people ask
Both are 1.6mm Nemtek aluminium alloy. The solid wire is one strand with a published 60 to 70kg breaking strength; the stranded wire is several finer strands twisted together, which Nemtek describes as easy to work with. Fittings are the same for both.
Its resistance is 27 ohm/km, against 175 ohm/km for 1.2mm galvanised steel. Nemtek puts it plainly: low electrical resistance allows for longer fences.
Nemtek rates the tensile breaking strength at 60 to 70kg with 10 to 11% elongation. On the fence it runs at the 8kg tension of the gold Hybrid Compression Spring 2 that Nemtek specifies for 1.6mm aluminium.
Nemtek's 6mm aluminium ferrules for a permanent crimped joint, or the 6mm bolt-type line clamp (wire up to 1.6mm) for a join you can undo.
No fence wire is. Nemtek gives this alloy good corrosion resistance for most environments 5km or more from the coastline; nearer the sea it recommends stainless steel wire.
Divide by the number of lines. On a 6 line fence, 1000m covers roughly 166m of wall before tails, joins and springs; on 8 lines, roughly 125m.
Yes. An electric fence must be installed and certified by a registered electric fence installer, who also issues the compliance certificate. Alectra supplies the wire, cable and fittings only.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
