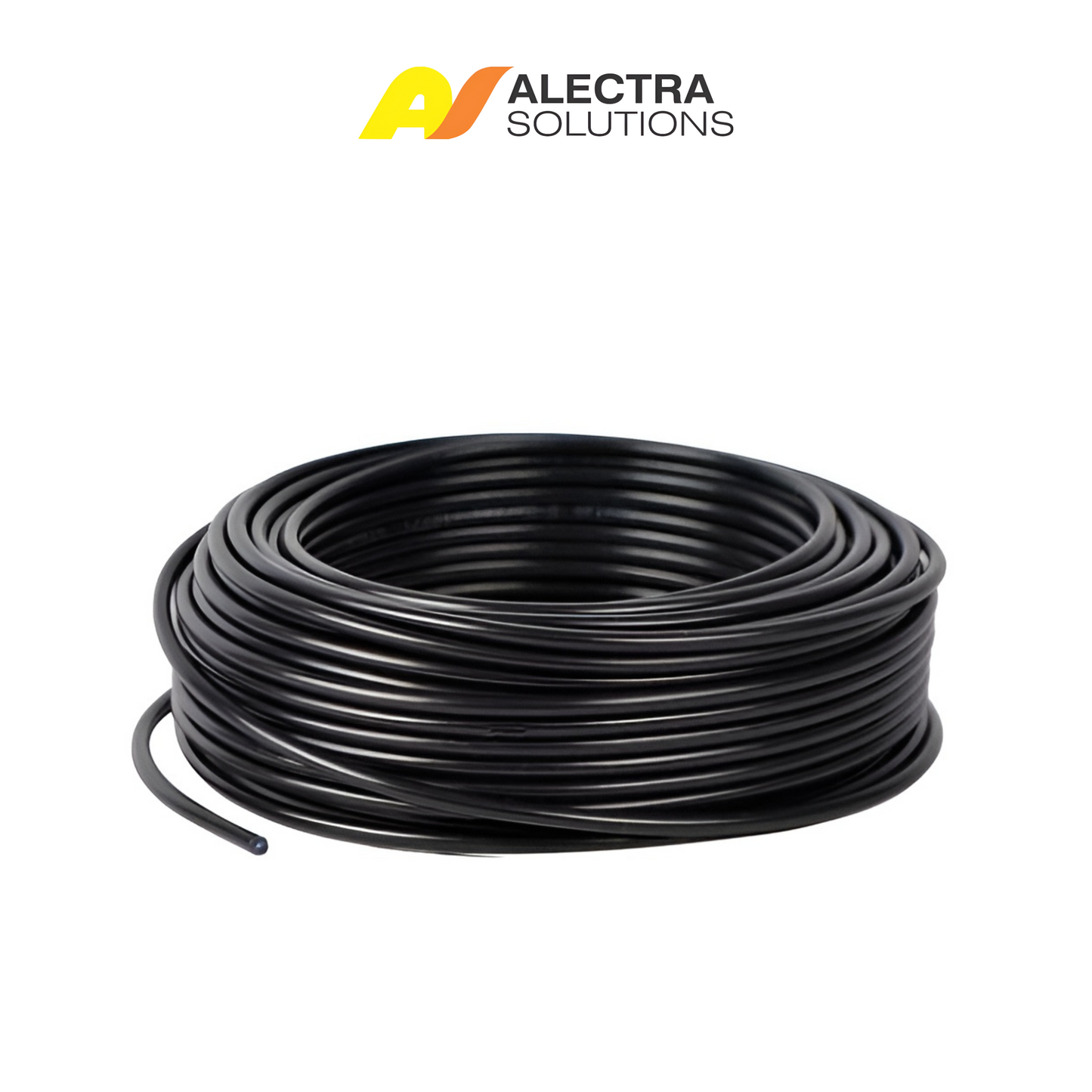

Nemtek Slimline HT Cable 30m Single Core Black
30m roll of Nemtek S-Series slimline single core HT cable for electric fences, black. Stranded tinned copper conductor, double insulated, UV stabilised. For short lead-outs, earth connections and repairs.
- 30mRoll length
- Single coreOne insulated conductor
- Tinned copperStranded conductor
- Double insulatedUV stabilised sheath
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect, usually within 24 hours. You can pay online, or pay at the branch when you collect.
A 30m roll of Nemtek slimline HT cable for short lead-outs, earth connections and fence repairs. This is Nemtek's S-Series single core HT cable for electric fence energizers: stranded tinned copper wires inside a double insulated, UV stabilised black sheath. It carries the energizer's pulse to the first live wire and takes the earth terminal to the earth spike, and 30m is enough when the energizer is mounted close to the fence. The same cable comes in 50m and 100m rolls.
Which HT cable length do you need?
Measure the route from the energizer to the first live wire, add the run from the earth terminal to the earth spike, then add every jumper between fence sections. 30m covers an energizer on the wall near the fence with the earth spike close by, with some left over for repairs. If the total comes to more than that, the 50m and 100m rolls are the same slimline cable, and we also list the Nemtek A-Series HT cable, a 100m roll with a solid aluminium core for fences strung with aluminium wire.
Tinned copper, double insulated, UV stabilised
Nemtek describes the S-Series as UV stabilised, double insulated, tinned copper stranded wires. The slim black sheath runs along the top of a wall or down to the earth spike in full sun. Nemtek also makes it in white; we list the black. This cable is not Nemtek's undergate cable: for runs under a gate or driveway Nemtek sells the U-Series Undergate HT cable.
What goes with it
Join the cable to the fence wire with a Nemtek 6mm bolt-type line clamp, and take the earth run to a Nemtek copper clad earth spike, whose double nut and washer clamp the cable. Nemtek's double pole lightning diverter sits in this cable run between the energizer and the fence, within 2m of the earth spike. Tidy the cable with 100mm cable ties. It suits the Merlin Stealth M18S, Merlin Stealth M28S and Wizord 4i energizers. The fence must be installed and certified by a registered electric fence installer. Alectra supplies the equipment only.
Key features
- Short roll for short lead-outs. 30m covers an energizer mounted near the fence, the earth connection and a few jumpers, with a little left for repairs.
- Tinned copper strands. Nemtek's S-Series conductor is stranded tinned copper wire.
- Double insulated. Nemtek describes the S-Series as double insulated for the high voltage pulse it carries.
- UV stabilised sheath. Made to run exposed along a wall or down to the earth spike in the sun.
- Slimline black. Nemtek's slim profile in black. Nemtek also makes it in white.
- Single core. One conductor per cable: one run for the live feed, another for the earth.
- Nemtek code EH-BS030S. The 30m black slimline roll in Nemtek's S-Series range.
Specifications
| Series | Nemtek S-Series Tinned Copper HT Cable (slimline) |
|---|---|
| Cores | Single core |
| Conductor | Stranded tinned copper wires |
| Insulation | Double insulated, UV stabilised |
| Colour | Black (Nemtek also makes white) |
| Roll length | 30m |
| Other lengths listed | 50m and 100m slimline rolls |
| Use | Lead-out from energizer to fence and to the earth spike; not Nemtek's undergate cable |
| Nemtek code | EH-BS030S |
| Sold as | Roll of 30m |
Not in the box
- Line clamps for the joins to the fence wire
- Earth spike
- Lightning diverter
Manuals and documents
Questions people ask
It is the insulated lead-out: it carries the energizer's high voltage pulse from the fence terminal to the first live wire, and links the earth terminal to the earth spike, so the pulse reaches the fence without leaking to the wall, brackets or ground on the way.
It is when the energizer sits near the fence and the earth spike is close by. Measure the run to the first live wire, the run to the earth spike and any jumpers between sections; if the total is more than 30m, take the 50m or 100m roll.
Nemtek does not publish a kV figure, conductor size or outside diameter for the S-Series. It describes the cable as double insulated and UV stabilised, and it is Nemtek's own HT cable for its electric fence energizers.
Nemtek does not say the slimline S-Series can be buried. For runs under gates and driveways Nemtek sells a separate U-Series Undergate HT cable with a galvanised conductor; ask the branch about it.
One insulated conductor per cable. You run one length from the energizer's fence terminal to the fence and a second length from the earth terminal to the earth spike.
With a Nemtek 6mm bolt-type line clamp, which Nemtek lists for joining electric fence cables and wires. At the earth spike, the Nemtek copper clad spike has a double nut and washer that clamps the cable.
Nemtek makes the slimline S-Series in white as well as black, in 30m, 100m and 200m rolls. We list the black; ask the branch about white.
Yes. An electric fence, including the energizer connection and the earthing, must be installed and certified by a registered electric fence installer. Alectra supplies the cable and fittings only.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
