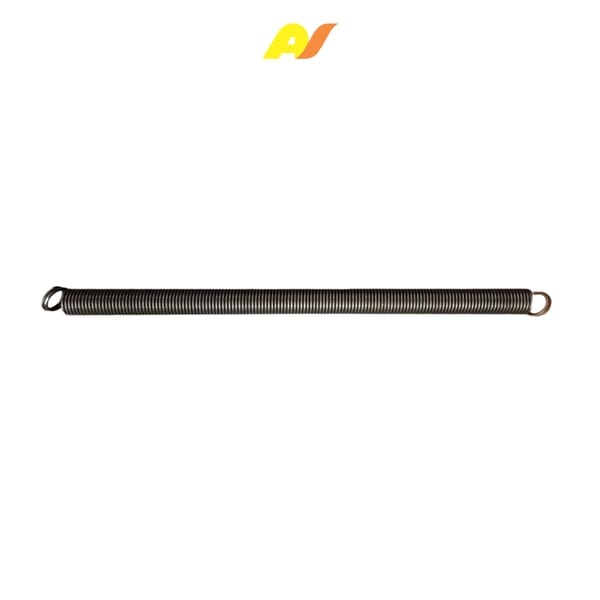

Garage Door Tension Spring 70kg (Brown End Loop)
70kg tension (extension) spring with a brown end loop for single sectional garage doors. Sold singly; a door needs two, each rated for the full door weight. Run a safety cable through each spring.
- 70kgSpring rating
- Brown loopEnd loop marking
- 2 per doorSold singly
- Single doorsSectional
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.
This is the 70kg tension spring, also called an extension spring, with a brown end loop. It is the heavier of the two garage door springs we sell for tension-spring doors; the lighter one is the 65kg with the red end loop. The spring is sold singly and a door needs two, each rated for the full door weight, so a 70kg door takes two 70kg springs. It suits single sectional doors. Springs on a shaft above the door opening are torsion springs: see our torsion spring range.
Two garage door springs, each rated for the whole door
This is the part people most often get wrong. The two springs on a tension-spring door do not split the weight half each; each one is rated for the full door. A 70kg door therefore takes two 70kg springs, one on each side. When one spring breaks, replace both together so the door stays balanced. Each spring hooks to a spring mount pulley that carries the lifting cable.
Single doors only
Tension springs run along the top of the door beside the horizontal tracks, stretching as the door closes and helping to lift it as it opens. In South Africa they are used mainly on single sectional doors. Double doors only use them when the door is light, up to about 60kg, so a 70kg tension spring is a single-door part.
The brown end loop
Brown is our supplier's mark for the 70kg spring. It is not an industry colour standard: other colour charts put brown on a slightly different weight, so a brown spring from another supplier is not necessarily 70kg. Order by the kg rating, not the colour.
Safety cables and fitting
Run a safety cable through each tension spring. If a spring snaps, the cable stops it from flying loose across the garage. Safety cables are not included. The springs, cables and pulleys are under high tension, so spring and cable work should be done by an experienced garage door installer. Alectra Solutions supplies the parts only.
Key features
- 70kg rating. Each spring is rated for a 70kg door, so the door takes two.
- Brown end loop. Our supplier's mark, so it is easy to tell from the red-loop 65kg.
- Sold singly. A door needs two, so order a pair.
- Single sectional doors. Where tension springs are mainly used in South Africa.
- Safety cable through the middle. Run one through each spring in case it breaks.
Specifications
| Type | Tension (extension) spring |
|---|---|
| Weight rating | 70kg, rated for the full door weight |
| Marking | Brown end loop (supplier code) |
| Suits | Single sectional garage doors |
| Springs per door | Two, one per side (2 x 70kg for a 70kg door) |
| Safety cable | One through each spring, not included |
| Sold as | One spring |
Not in the box
- Safety cable (one per spring)
- Spring mount pulley
- Track mount pulley
- Lifting cables
Questions people ask
Two. Each spring is rated for the whole door, so a 70kg door takes two 70kg springs. They are sold singly, so add two to your order.
Tension springs are used on single sectional doors, and on double doors only when the door is light, up to about 60kg. A 70kg tension spring is a single-door spring.
No. Brown is our supplier's mark. Other colour charts use brown for a slightly different weight, so order by the kg rating, not the colour.
The rating and the end loop. The 65kg has a red end loop and the 70kg a brown one. Order the weight that matches your door.
Yes. Replace tension springs in pairs so the door stays balanced.
Yes. Run a safety cable through each spring. If a spring breaks, the cable keeps it from flying loose. Safety cables are not included.
No. Alectra Solutions supplies the parts only. Spring and cable work should be done by an experienced garage door installer.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
