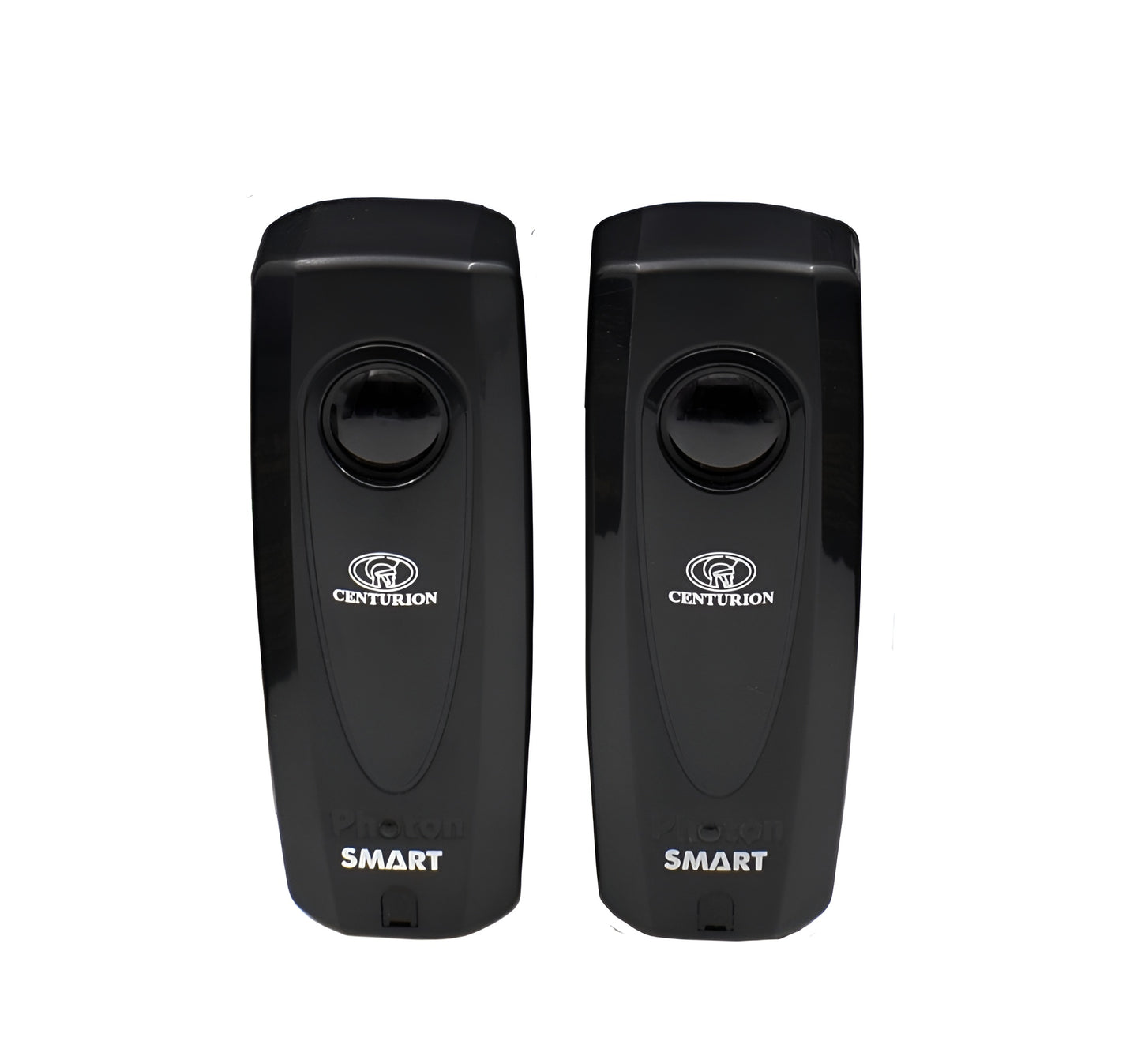

Centurion Systems Photon SMART fully wireless safety beams 30m
By Centurion Systems

Centurion Systems Photon SMART Fully Wireless Safety Beams 30m

Fully wireless Centurion Systems Photon SMART safety beams for SMART and SMART+ controllers only. 2 x AA alkaline batteries in each unit, over 2 years. 30m range, receiver within 10m of the controller, IP54.

  • Fully wireless2 x AA in each unit
  • 30mRange
  • 2+ yearsBattery life
  • SMART and SMART+Controllers only
Trade Account

Pricing for registered gate motor installers, electricians, security installation companies and building contractors.

Log in to see your price

No trade account yet? Apply for one here

Retail pricing

Buying for your own home? Ask for a formal quote and a sales agent will send you the price.

Get a formal quote

Photon SMART beams are the fully wireless Centurion Systems safety beams: the transmitter and the receiver both run on 2 x AA alkaline batteries, so neither side needs a cable. They work only with Centurion Systems SMART and SMART+ controllers. For any other motor, choose the Photon II wireless beams, which have a battery transmitter and a wired receiver, or the wired i5 infrared safety beams. Pricing is shown to trade account holders after login.

Which motors take Photon SMART beams?

Photon SMART pairs only with Centurion Systems SMART and SMART+ controllers. That covers the D3, D5-Evo, D6, D10, D10 Turbo and D20 sliding gate motors, the VANTAGE (V-Series) swing gate motors and the SDO5 SMART+ garage door motor. A VANTAGE SMART+ takes up to 3 sets. Photon SMART will not work with a controller that is not SMART or SMART+, or with another make of motor.

Fully wireless, set up in MyCentsys Pro

Each unit takes 2 x AA alkaline batteries, and Centurion Systems rates battery life at over 2 years. Do not use rechargeable batteries. The beams are paired with the gate motor's SMART controller in the MyCentsys Pro app. Photon SMART is a safety beam for the gate motor, not a smart home device.

Range and placement

The two units work up to 30m apart, and the receiver has to be within 10m of the SMART controller. Both units are rated IP54. Alectra Solutions supplies the equipment only. Trade account holders can open the Centurion Systems Photon SMART installation guide on this page after login.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • Fully wireless. The transmitter and the receiver both run on 2 x AA alkaline batteries.
  • Over 2 years' battery life. Centurion Systems' figure. Use alkaline batteries only, not rechargeables.
  • For SMART and SMART+ controllers only. D3, D5-Evo, D6, D10, D10 Turbo, D20, VANTAGE (V-Series) and the SDO5 SMART+ garage door motor.
  • 30m range. With the receiver within 10m of the SMART controller.
  • Paired in MyCentsys Pro. The beams are linked to the SMART controller in the MyCentsys Pro app.
  • Up to 3 sets on a VANTAGE SMART+. A VANTAGE SMART+ controller takes up to 3 sets of Photon SMART beams.
  • IP54 rated. Both units.
Specifications
ManufacturerCenturion Systems (Pty) Ltd
ModelPhoton SMART
Power2 x AA alkaline batteries in each unit (no rechargeables)
Battery lifeOver 2 years
Range between beamsUp to 30m
Receiver to controllerWithin 10m
ProtectionIP54
Works withCenturion Systems SMART and SMART+ controllers: D3, D5-Evo, D6, D10, D10 Turbo, D20, VANTAGE (V-Series), SDO5 SMART+
Does not work withControllers that are not SMART or SMART+, and other makes of motor
AppMyCentsys Pro
VANTAGE SMART+Up to 3 sets
Sold asOne set of Photon SMART beams (transmitter and receiver)
Not in the box
  • Gate motor with a Centurion Systems SMART or SMART+ controller
  • Fitting (Alectra Solutions supplies the equipment only)
Questions people ask
Will Photon SMART beams work on my older gate motor?

Only if it has a Centurion Systems SMART or SMART+ controller. For any other motor, use the Photon II wireless beams or the wired i5 beams.

Which motors are Photon SMART beams made for?

The Centurion Systems D3, D5-Evo, D6, D10, D10 Turbo and D20 with SMART or SMART+ controllers, the VANTAGE (V-Series) and the SDO5 SMART+ garage door motor.

Can I use rechargeable batteries?

No. Centurion Systems says to use AA alkaline batteries only.

How long do the batteries last?

Centurion Systems rates battery life at over 2 years.

How far can the receiver be from the gate motor?

Within 10m of the SMART controller. The two beams can be up to 30m apart.

Is Photon SMART a smart home device?

No. It is a safety beam that pairs with the gate motor's SMART controller, set up in the MyCentsys Pro app.

How many sets can I fit on a VANTAGE?

A VANTAGE SMART+ takes up to 3 sets.

Need it fitted? Alectra Solutions supplies product only. Find a certified Centurion Systems installer at myinstaller.co.za.
