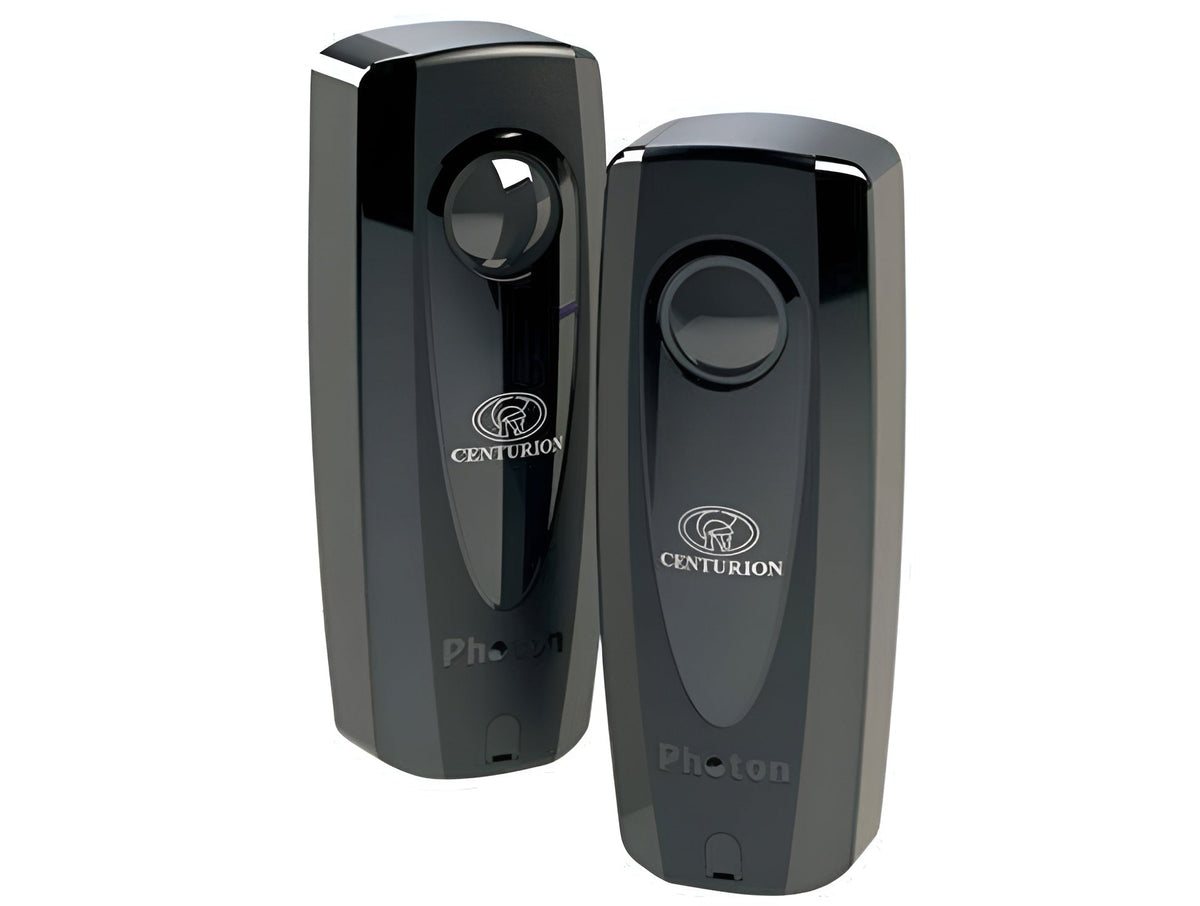

Centurion Systems Photon Wireless Safety Beams 30m
Centurion Systems Photon II safety beams with a wireless transmitter on 2 x AA batteries (minimum 2 years) and a wired 12 to 24V AC/DC receiver. 30m range, fail-safe N/C and N/O output, IP54.
- 30mRange
- 2 x AATransmitter batteries
- 12 to 24VWired receiver, AC/DC
- IP54-15°C to +65°C
Pricing for registered gate motor installers, electricians, security installation companies and building contractors.
Log in to see your priceNo trade account yet? Apply for one here
Buying for your own home? Ask for a formal quote and a sales agent will send you the price.
Get a formal quoteThe Centurion Systems Photon II are Photon beams with a battery-powered wireless transmitter, so there is no trench to dig across the driveway for a cable. The transmitter runs on 2 x AA alkaline batteries, while the receiver wires to the gate motor and runs on 12 to 24V AC/DC. Range is up to 30m. For a Centurion Systems SMART or SMART+ motor there is also the fully wireless Photon SMART, and the i5 infrared safety beams are the fully wired option. Pricing is shown to trade account holders after login.
How Photon beams work on a gate
The transmitter and receiver go on opposite sides of the opening, facing each other, about 750mm above the ground. When a car or a person breaks the infrared beam, the receiver's output changes and the gate motor's controller decides what the gate does. The two units can be up to 30m apart.
Wireless transmitter, wired receiver
Only the transmitter is battery powered. It takes 2 x AA alkaline batteries, and Centurion Systems rates them at a minimum of 2 years. The receiver needs 12 to 24V AC or DC and draws 30mA at 12V. Its fail-safe output gives N/C and N/O contacts, rated 3A at 30V DC. Both units are rated IP54 and work from -15°C to +65°C.
Photon II, Photon SMART or i5?
- Photon II (this set): battery transmitter, wired receiver, up to 30m.
- Photon SMART: both units on batteries, for Centurion Systems SMART and SMART+ controllers only, up to 30m.
- i5: both units wired, 12 to 24V AC/DC, up to 40m.
Alectra Solutions supplies the equipment only. Trade account holders can open the Centurion Systems safety beam catalogue pages on this page after login.
Key features
- Wireless transmitter. Runs on 2 x AA alkaline batteries, rated at a minimum of 2 years, so no cable across the driveway.
- Wired receiver. Runs on 12 to 24V AC/DC and draws 30mA at 12V.
- 30m range. Between the transmitter and the receiver.
- Fail-safe output. N/C and N/O contacts, rated 3A at 30V DC.
- Made for outdoors. IP54, working from -15°C to +65°C.
- Simple placement. Mount the pair facing each other, about 750mm above the ground.
Specifications
| Manufacturer | Centurion Systems (Pty) Ltd |
|---|---|
| Model | Photon II |
| Transmitter power | 2 x AA alkaline batteries, minimum 2 years |
| Receiver power | 12 to 24V AC/DC, 30mA at 12V |
| Range | Up to 30m |
| Output | Fail-safe N/C and N/O, 3A at 30V DC |
| Protection | IP54 |
| Operating temperature | -15°C to +65°C |
| Mounting height | About 750mm |
| In the box | Transmitter and receiver |
| Sold as | One set of Photon II beams |
Not in the box
- Gate motor
- Fitting (Alectra Solutions supplies the equipment only)
Questions people ask
Not the Photon II. Only the transmitter runs on batteries; the receiver is wired and needs 12 to 24V AC/DC. For a fully wireless set on a Centurion Systems SMART or SMART+ motor, look at the Photon SMART.
2 x AA alkaline batteries. Centurion Systems rates them at a minimum of 2 years.
Up to 30m.
About 750mm above the ground, with the two units facing each other.
A fail-safe output with N/C and N/O contacts, rated 3A at 30V DC.
Only on the receiver side, where it wires to the gate motor. The transmitter side needs no cable, so there is no trench across the driveway.
Yes. They are rated IP54 and work from -15°C to +65°C.
Need it fitted? Alectra Solutions supplies product only. Find a certified Centurion Systems installer at myinstaller.co.za.
