Sentry 1 Channel Code Hopping Receiver 433MHz (Blue Dot)
Sentry 1 channel code hopping receiver on 433.92MHz (blue dot sticker). Learns up to 50 Sentry code hopping remotes, one 1 Amp potential-free relay, pulse or latch. Runs on 12 to 24V DC or 12 to 18V AC.
- 50 remotesMemory
- 433.92MHzBlue dot sticker
- 1 Amp relayPulse or latch
- 12 to 24V DCOr 12 to 18V AC
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.
The Sentry 1 channel code hopping receiver adds Sentry remote control to a gate motor, garage door motor, alarm or lights. This is the 433.92MHz version, marked with a blue dot sticker. It learns up to 50 Sentry code hopping remotes and switches one 1 Amp potential-free relay. For 403MHz remotes, see the Sentry 1 channel code hopping receiver 403MHz.
Which remotes work with it?

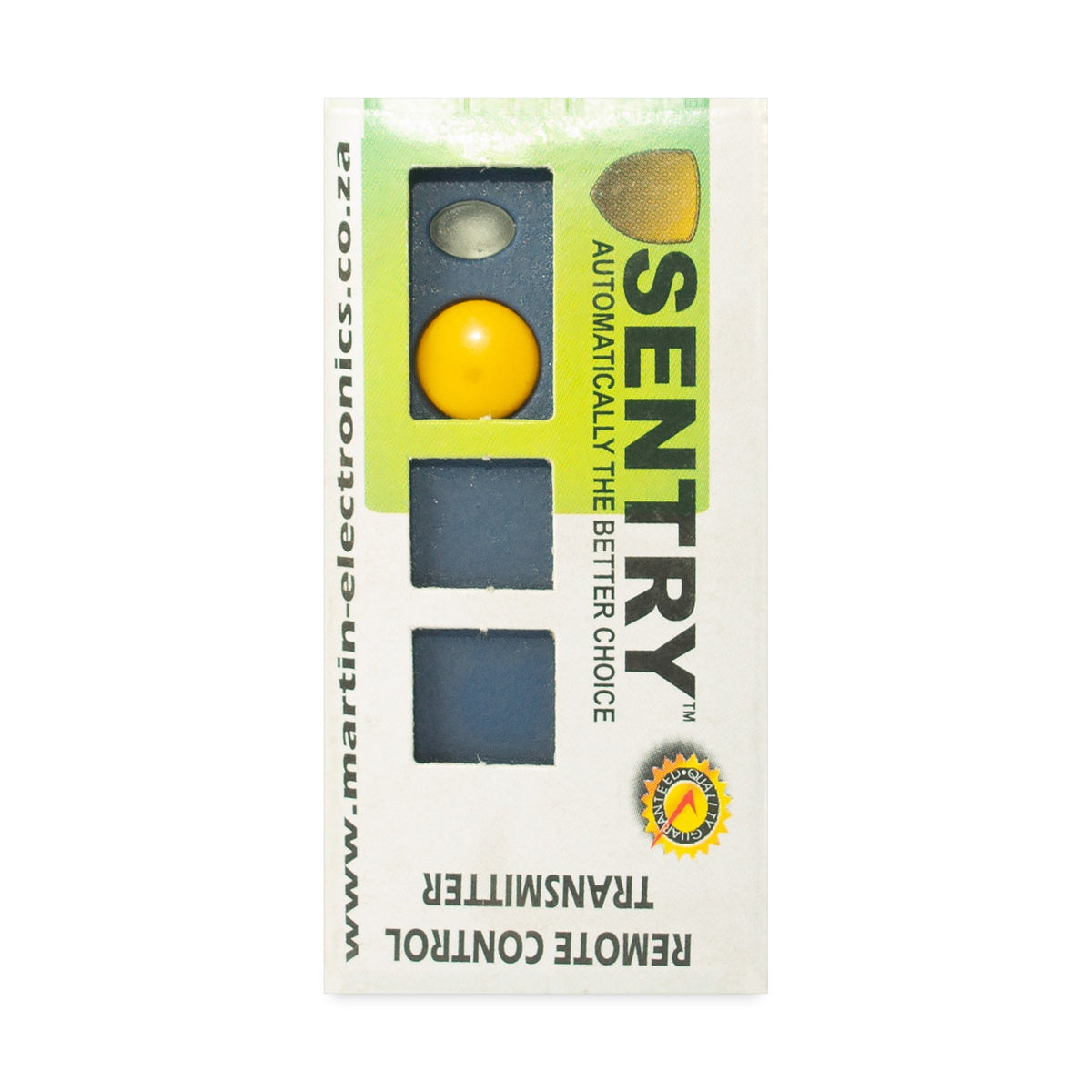

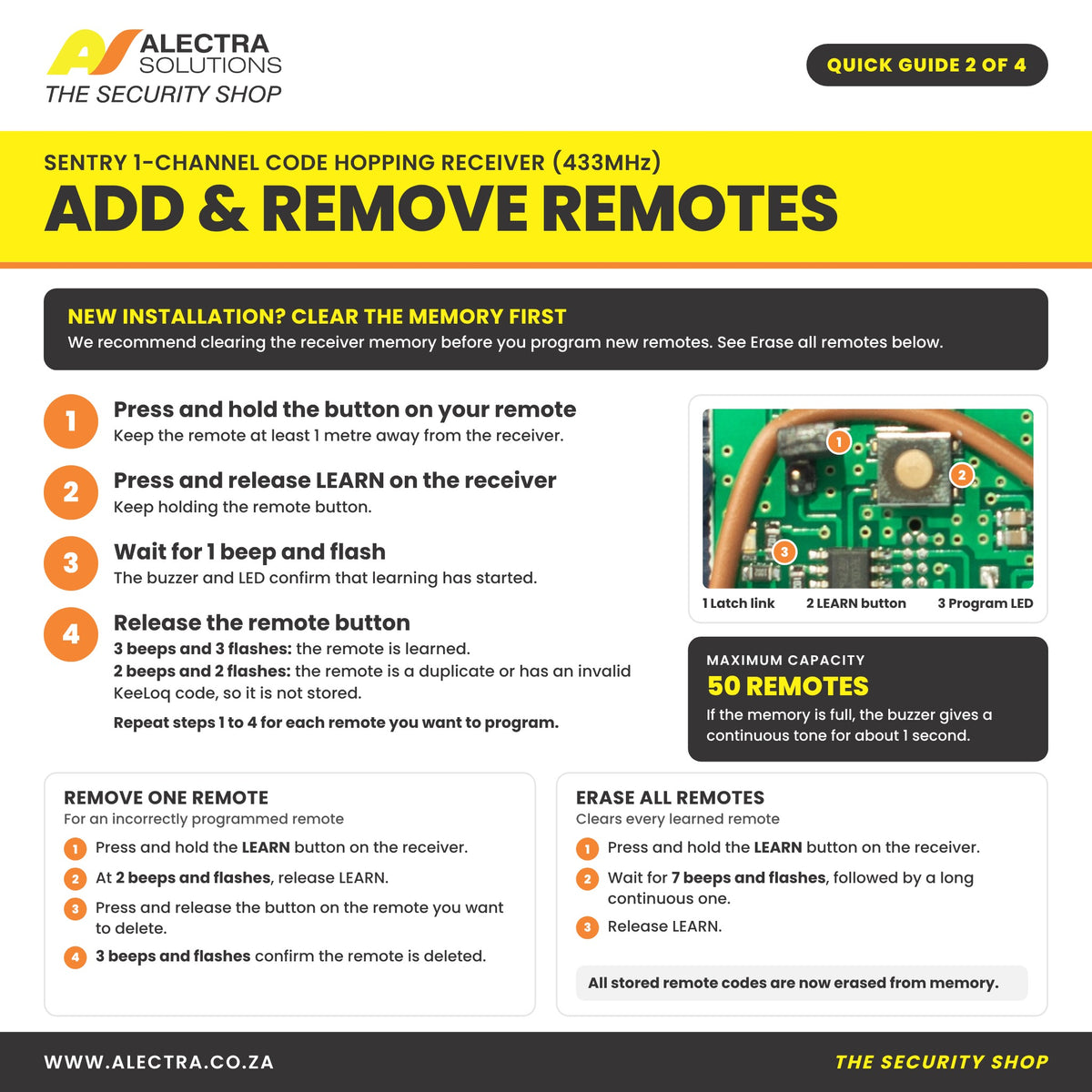

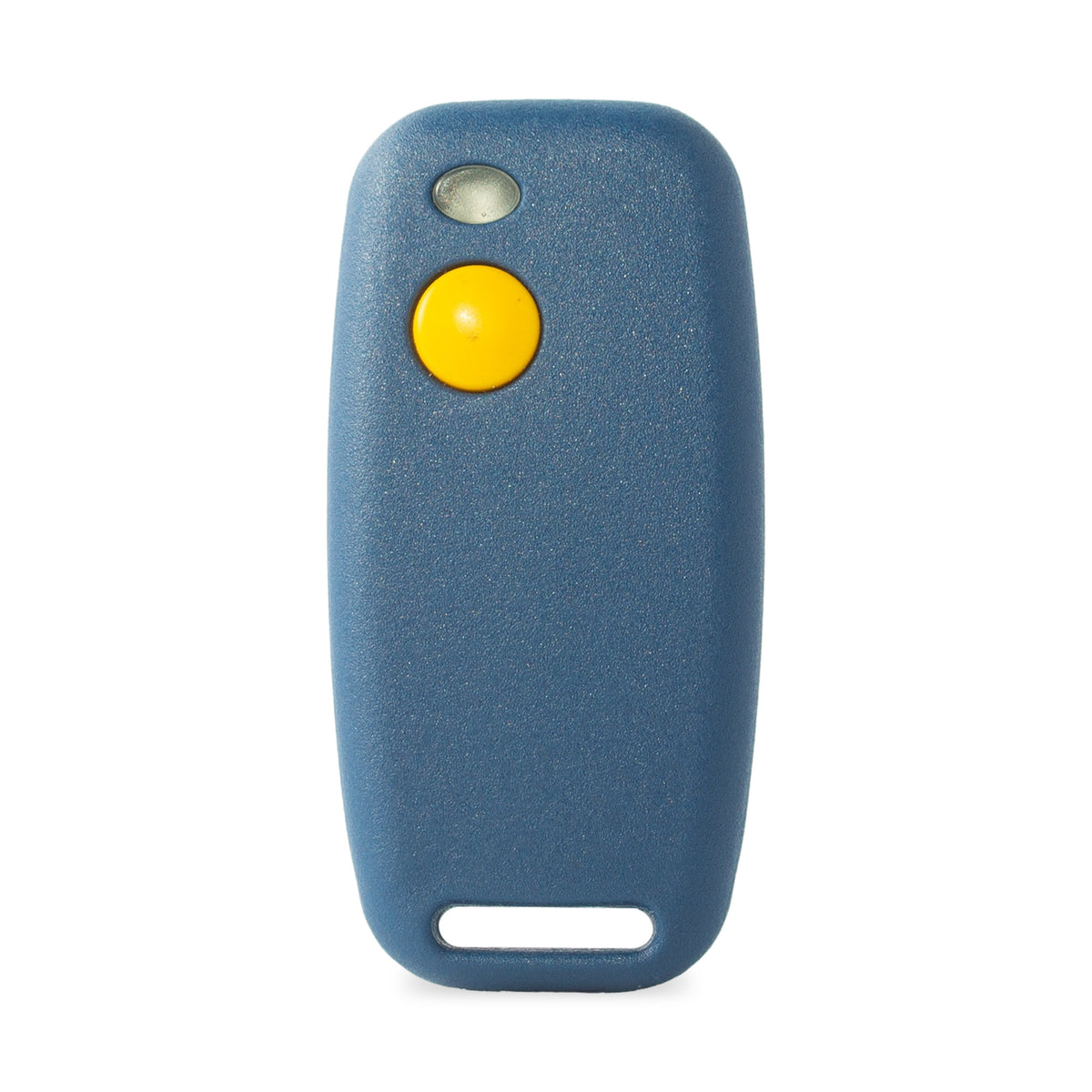

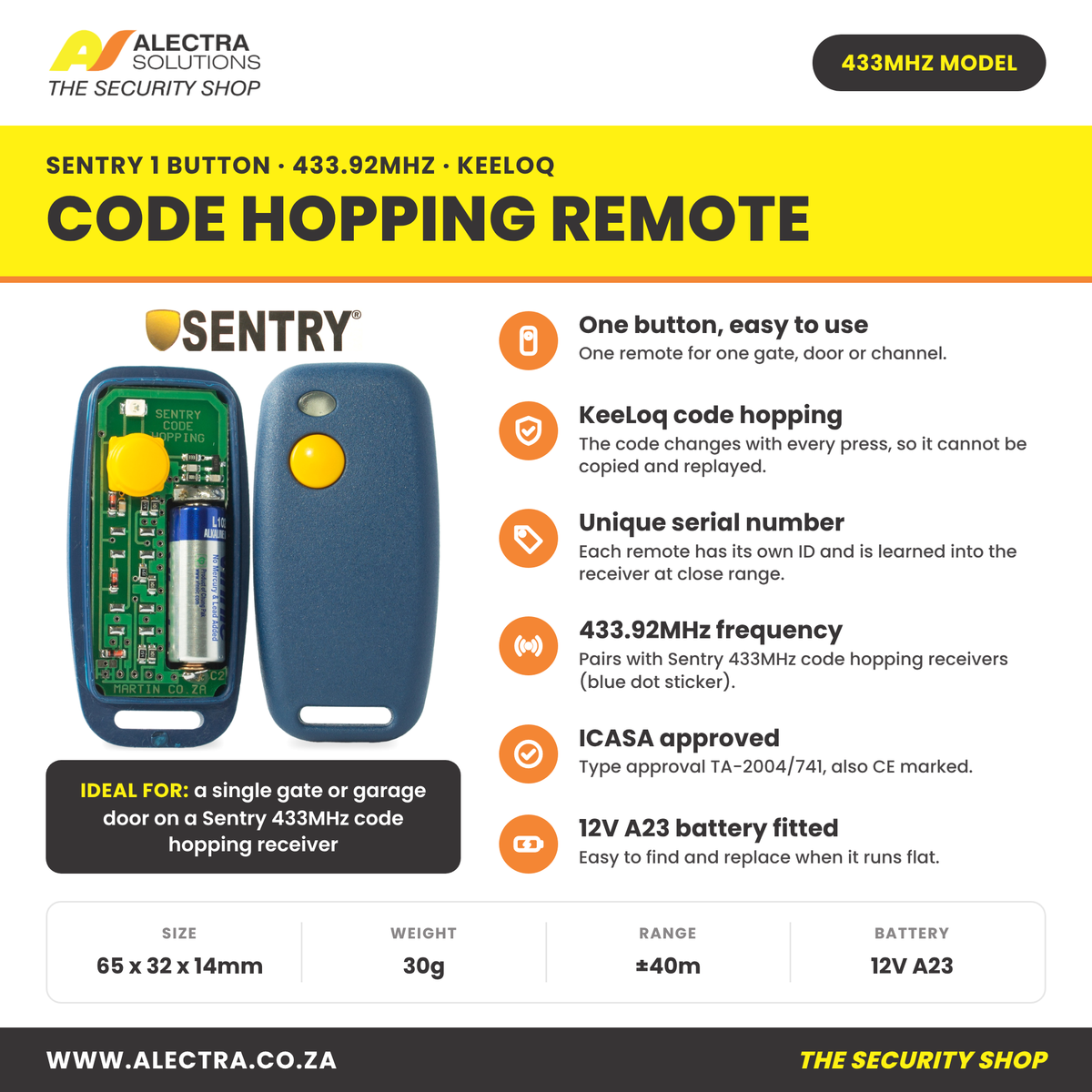

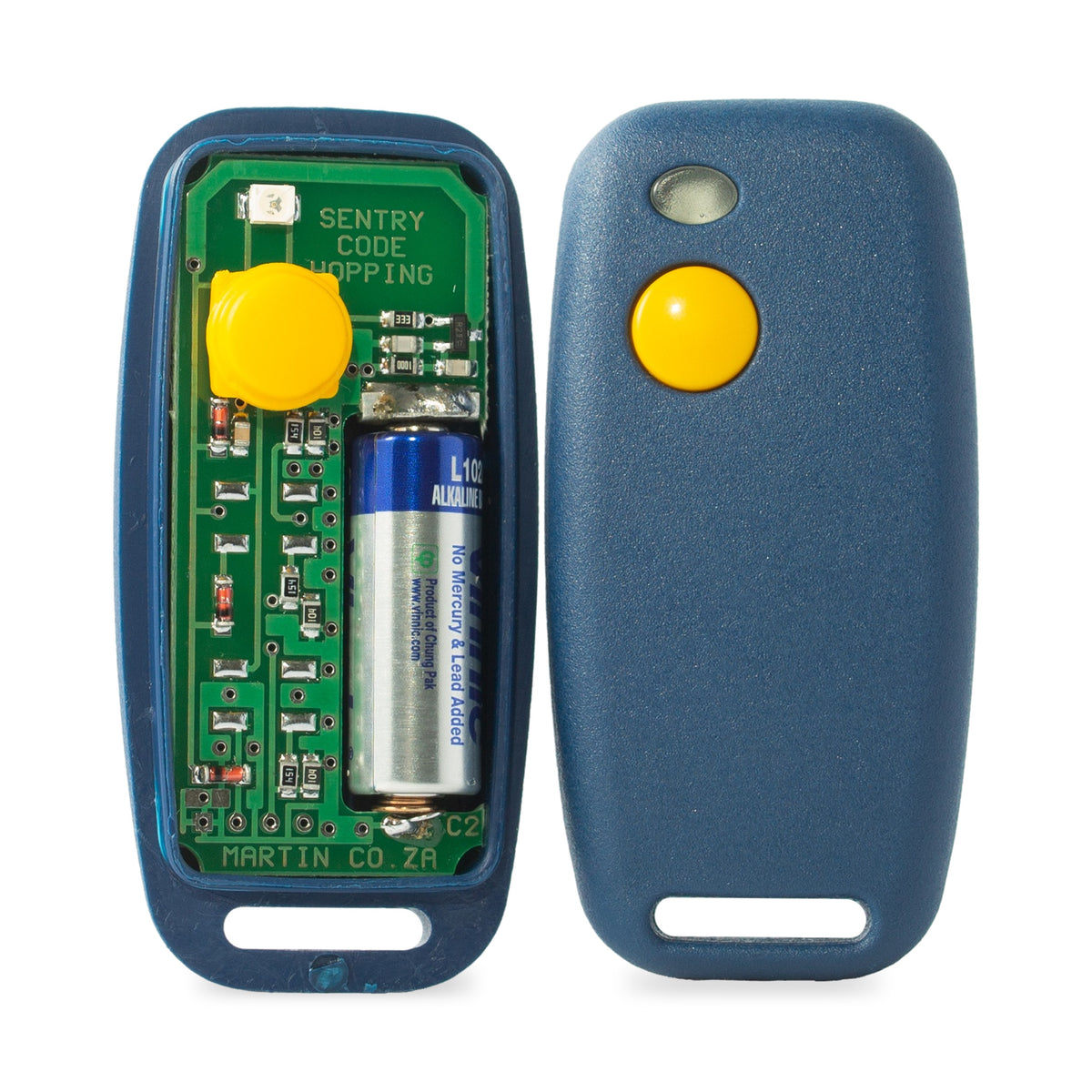

Sentry 433MHz code hopping remotes, such as the Sentry 1 button code hopping remote 433MHz. Each remote is learned into the receiver with the learn button, and the buzzer and LED confirm each step. You can remove one lost remote on its own, or erase them all.
Wiring and settings

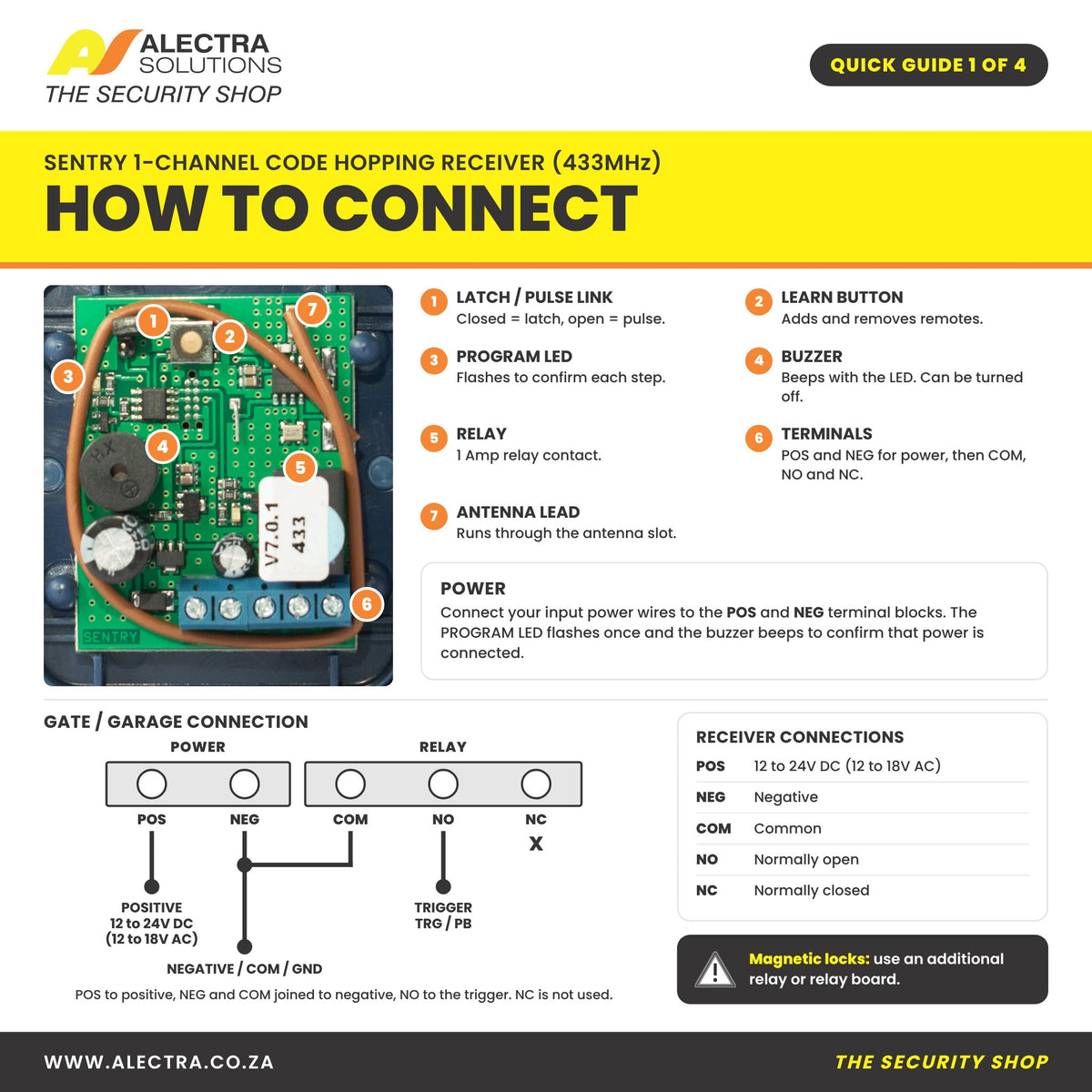

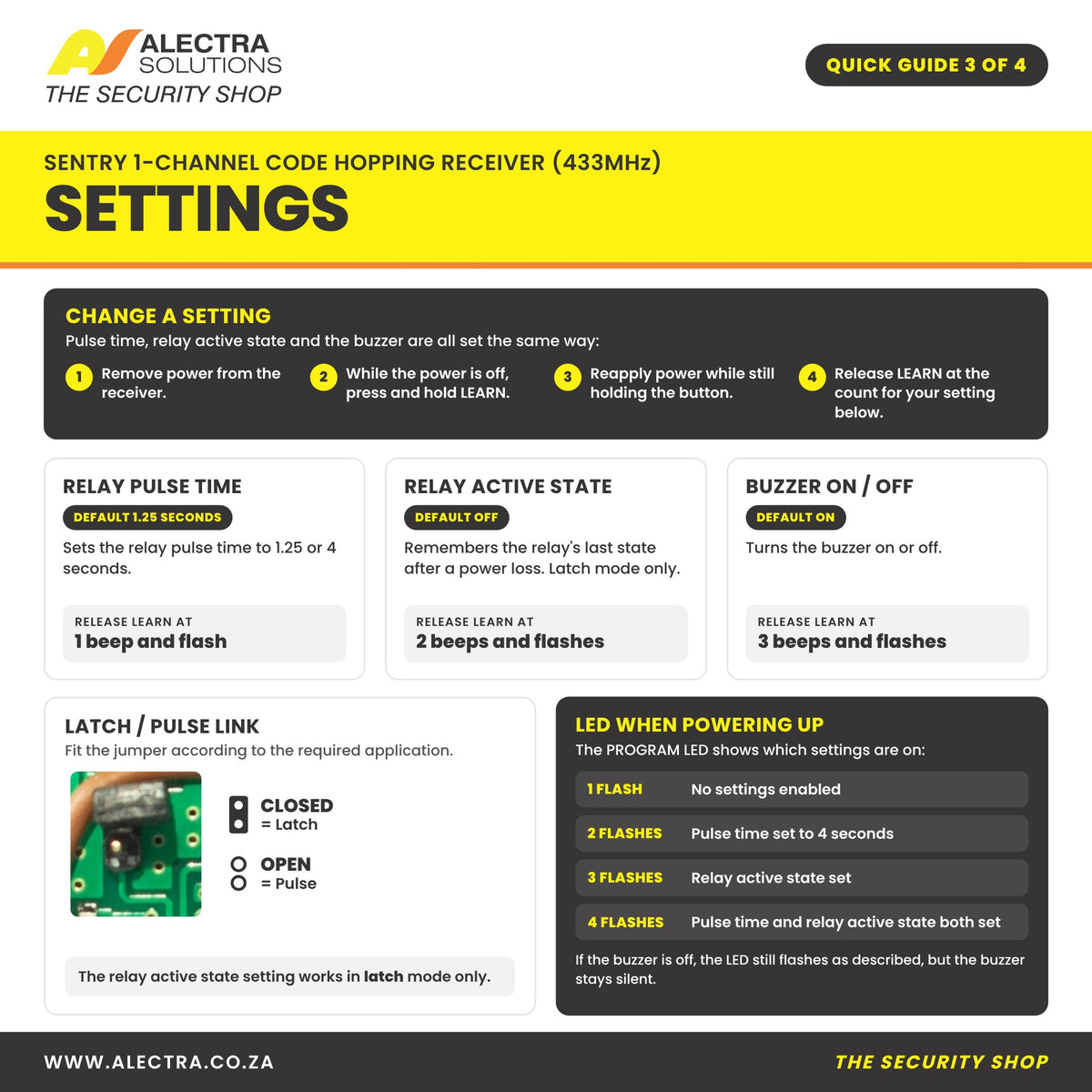

Power goes to the POS and NEG terminals: 12 to 24V DC or 12 to 18V AC. The relay has COM, NO and NC terminals that wire straight into the trigger input of most gate and garage motors. A jumper sets pulse (for motors) or latch (for lights and alarms). You can set the pulse time to 1.25 or 4 seconds, switch the buzzer off, and in latch mode have the relay remember its state after a power loss. For magnetic locks, add an extra relay or relay board. Alectra Solutions supplies the receiver only.
Mounting

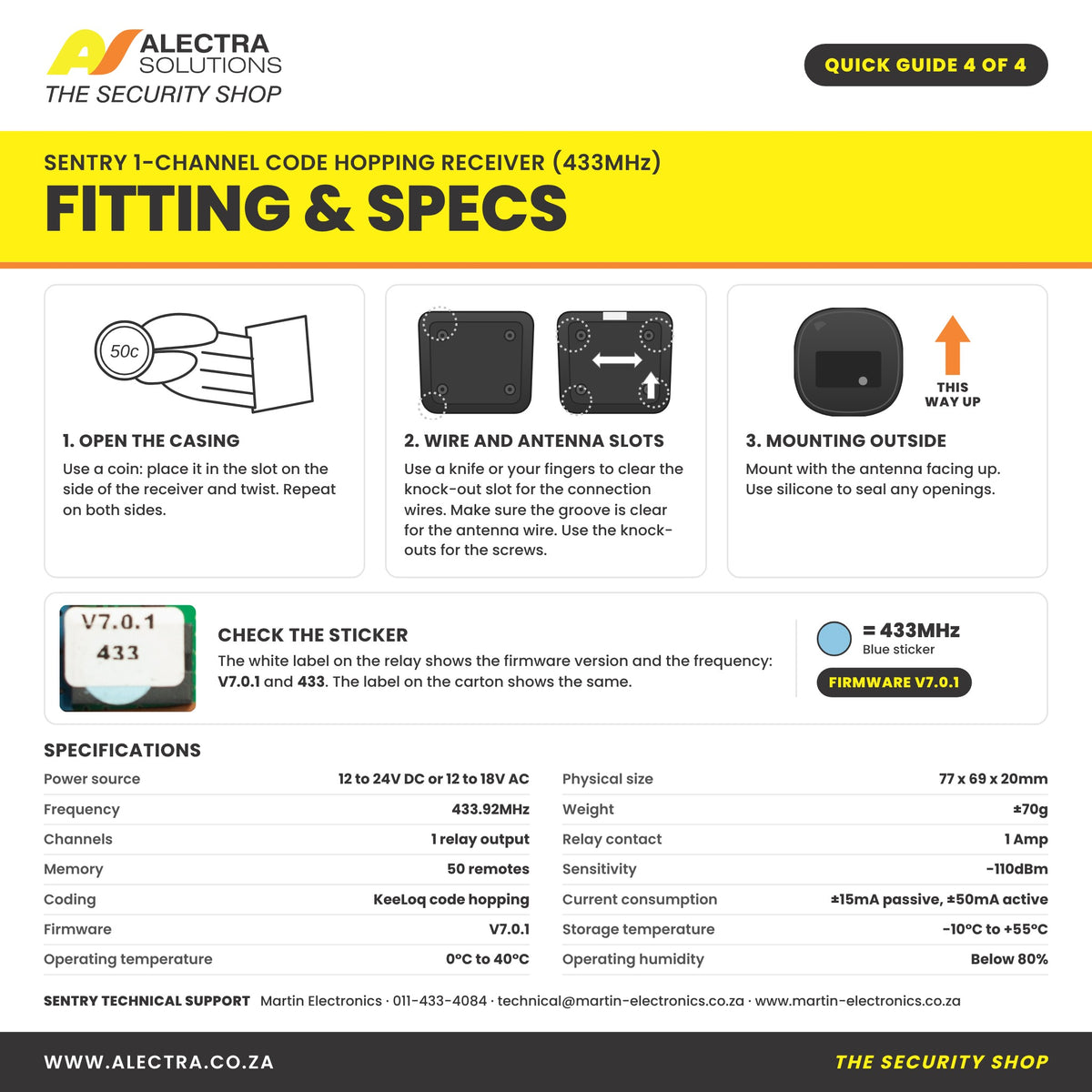

Open the casing with a coin in the side slot. If you mount it outside, fit it with the antenna facing up and seal it with silicone. The manual and our quick guides are on this page and in the photos.
Key features
- Learns 50 Sentry remotes. Pair each remote with the learn button; the buzzer and LED confirm it.
- KeeLoq code hopping. The code changes with every press, so it stays hard to copy.
- Remove one remote. Delete a lost remote on its own without re-coding the rest.
- 1 Amp potential-free relay. COM, NO and NC terminals wire straight into gate and garage motors.
- Pulse or latch. Set with a jumper. Pulse time 1.25 or 4 seconds.
- Flexible power input. Runs on 12 to 24V DC or 12 to 18V AC.

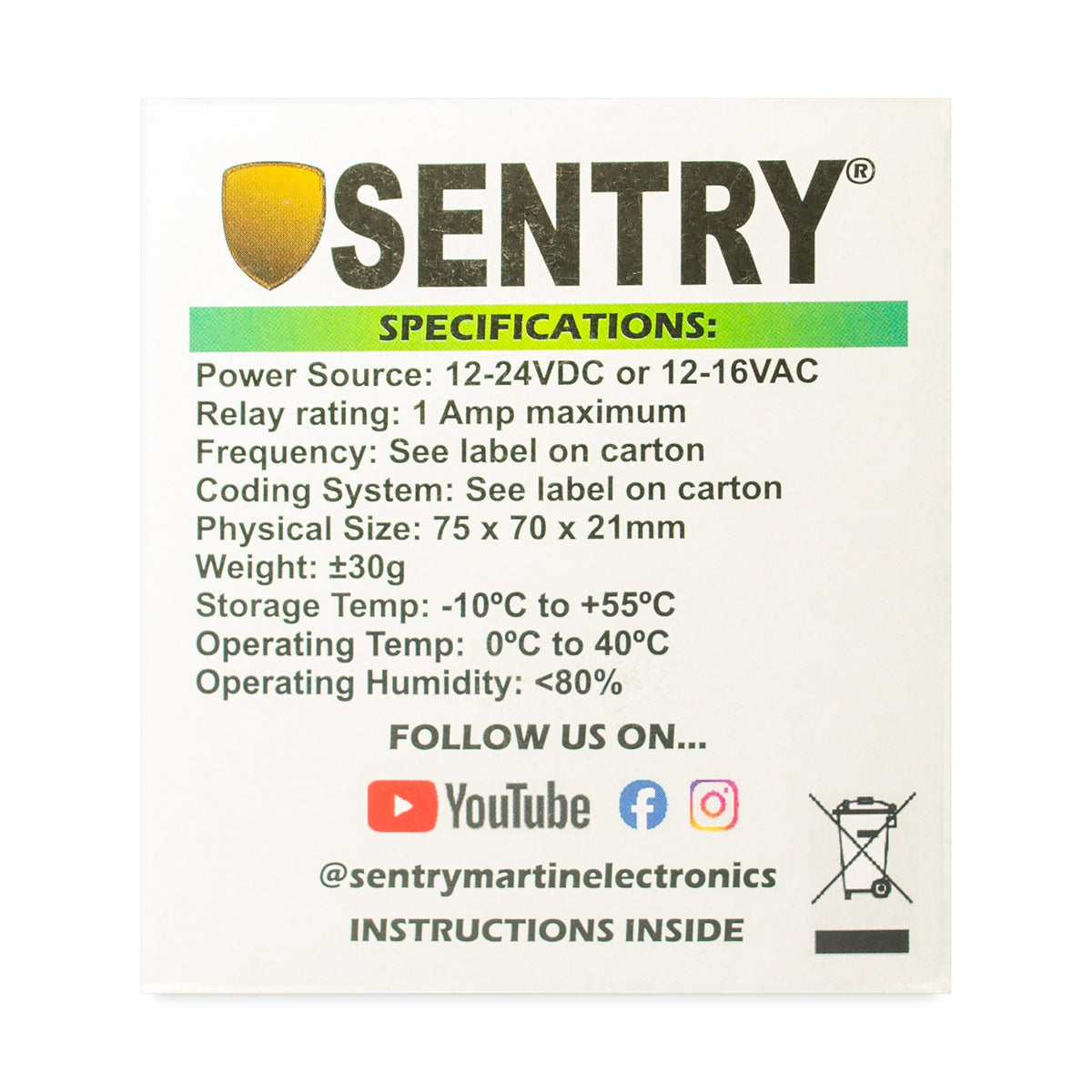

Specifications
| Brand | Sentry (made by Martin Electronics) |
|---|---|
| Channels | 1 relay output |
| Coding | KeeLoq code hopping |
| Frequency | 433.92MHz (blue dot sticker) |
| Memory | 50 remotes |
| Relay contact | 1 Amp, potential free (COM, NO, NC) |
| Output modes | Pulse or latch (jumper); pulse time 1.25 or 4 seconds |
| Power source | 12 to 24V DC or 12 to 18V AC |
| Current consumption | About 15mA passive, 50mA active |
| Sensitivity | -110dBm |
| Firmware | V7.0.1 |
| Size | 77 x 69 x 20mm |
| Weight | About 70g |
| Operating temperature | 0°C to 40°C |
| Warranty | 24 months Sentry, carry-in |
| Sold as | Single receiver |
Not in the box
- Remotes (sold separately)
- Power supply
- Fitting and wiring (done by you or your installer)
Manuals and documents
Questions people ask
Sentry 433MHz code hopping remotes. This receiver has the blue dot sticker. Remotes for blue and black dot receivers are 403MHz and will not work with it.
Up to 50 remotes.
Yes. You can remove a single remote without re-coding the others, or erase all remotes at once.
Pulse for gate and garage motors. Latch for lights, alarms and other devices that stay on until the next press.
Sentry says to use an additional relay or relay board for magnetic locks.
No. Alectra Solutions supplies the receiver only. You or your installer connect it using the manual on this page.
