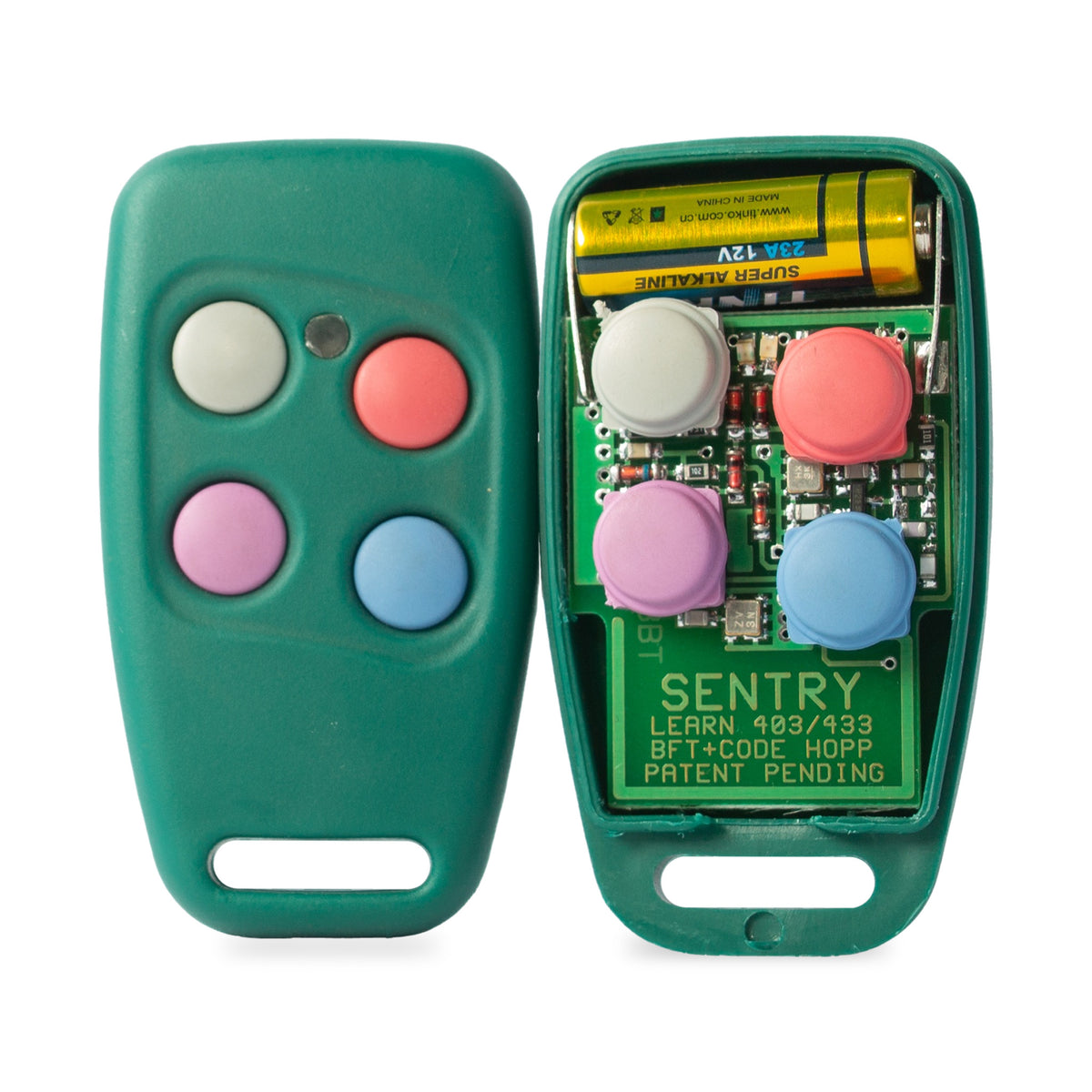

Sentry METX4-D dual frequency remote opened, circuit board and battery

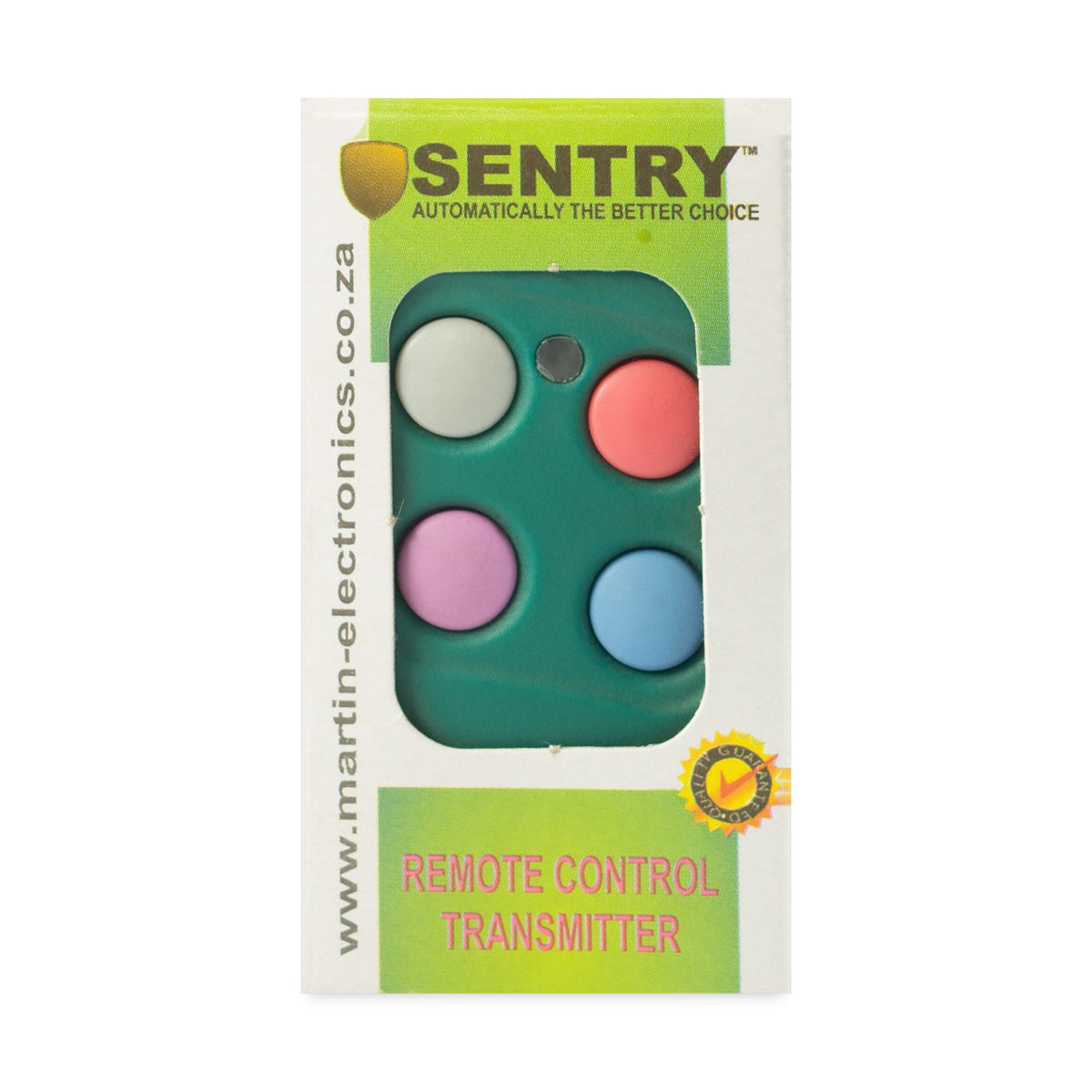

Sentry dual frequency learning remote in its box
Sentry dual frequency learning remote METX4-D features

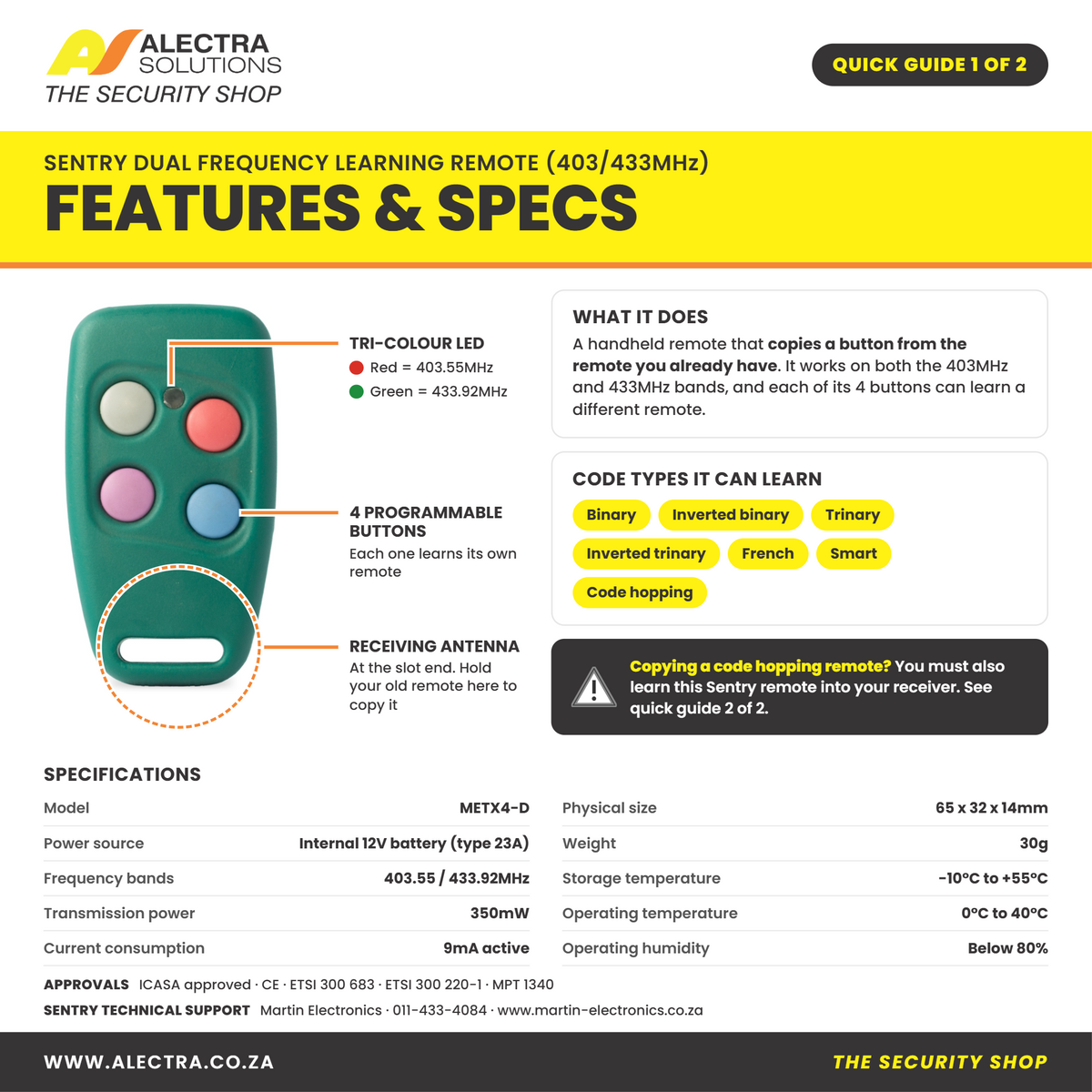

Sentry dual frequency learning remote quick guide 1 of 2: features and specs
Sentry dual frequency learning remote quick guide 2 of 2: how to copy a remote
By Sentry

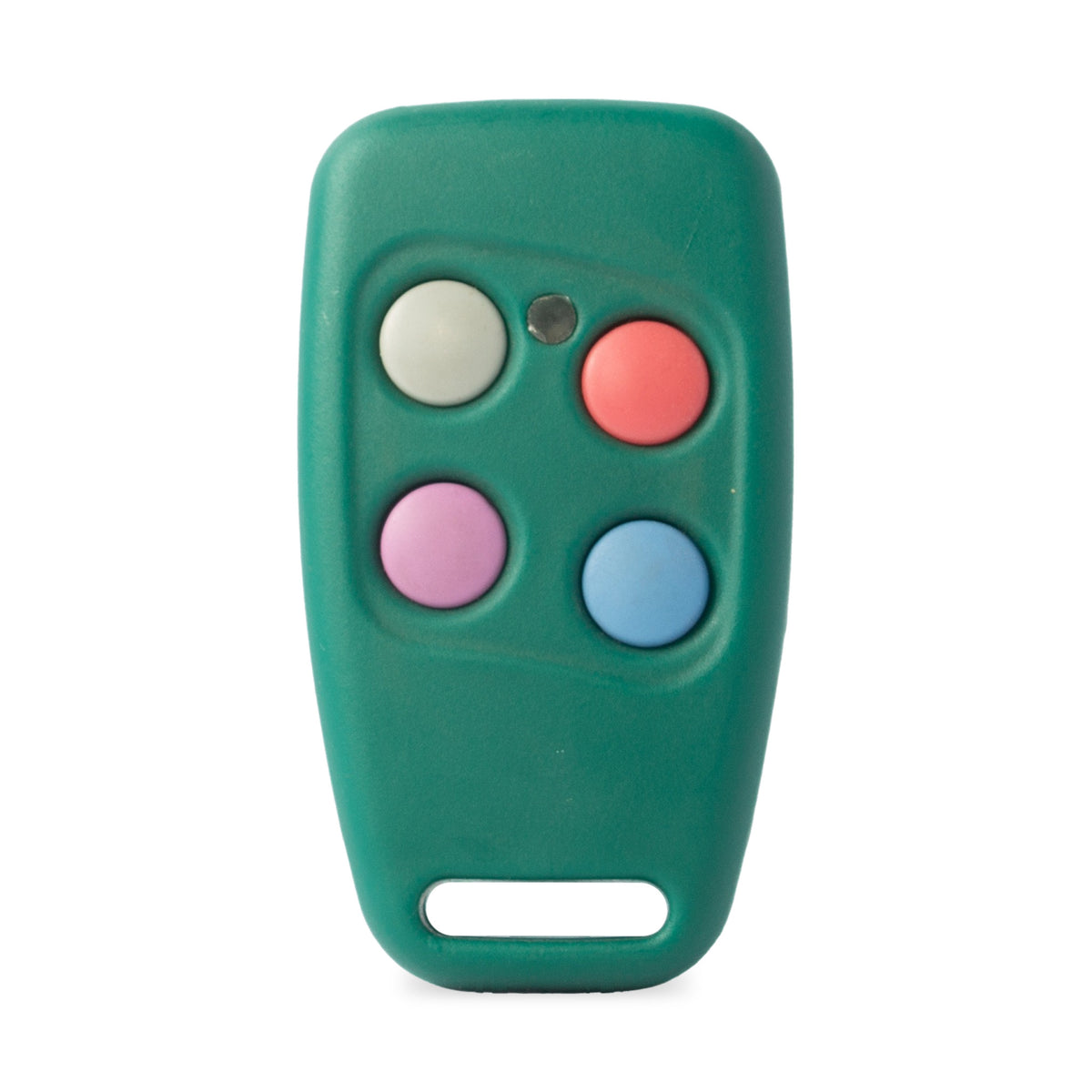

Sentry Dual Frequency 4 Button Learning Remote, 403MHz and 433MHz

Sentry dual frequency learning remote, model METX4-D. Four buttons that each copy a different remote on 403.55MHz or 433.92MHz. Learns binary, trinary, French, Smart and code hopping. 12V 23A battery.

  • 4 buttonsEach copies a remote
  • 403 + 433MHzDual frequency
  • 7 code typesIncl. code hopping
  • METX4-DModel
R 199.00
Collect at a branch, no charge
  • Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45
    Get directions

Choose Pickup at checkout and we message you when your order is ready to collect.
Pairs well with

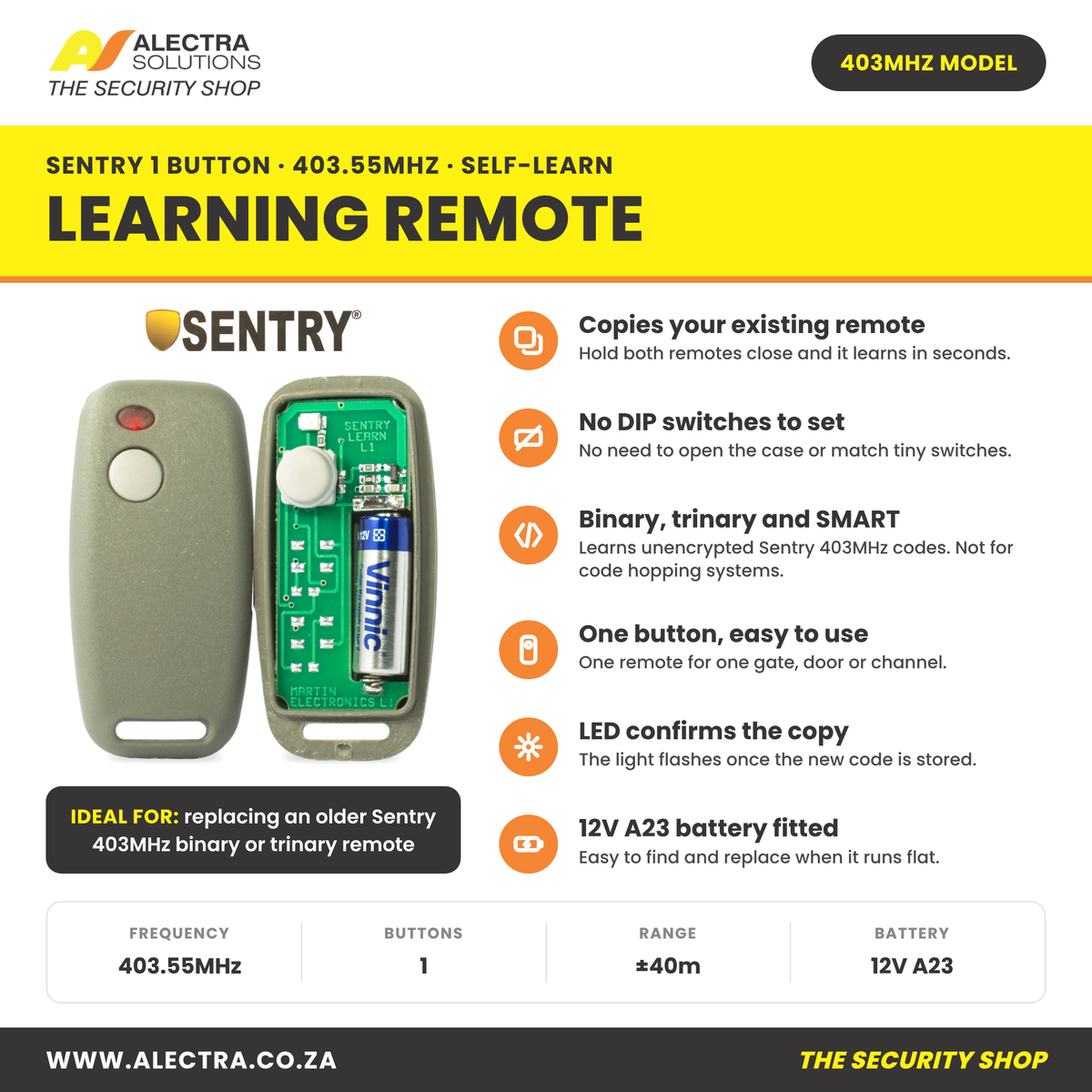

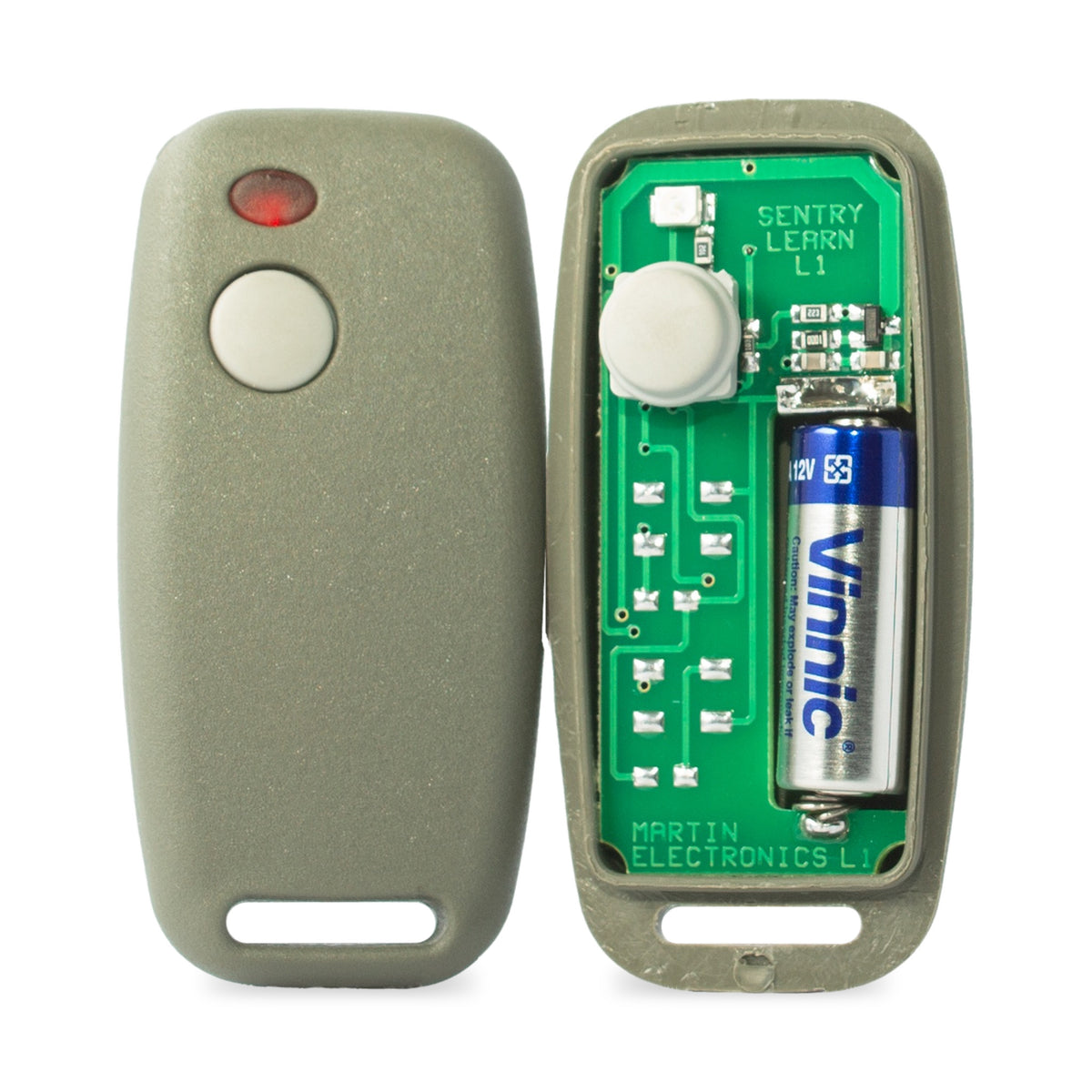

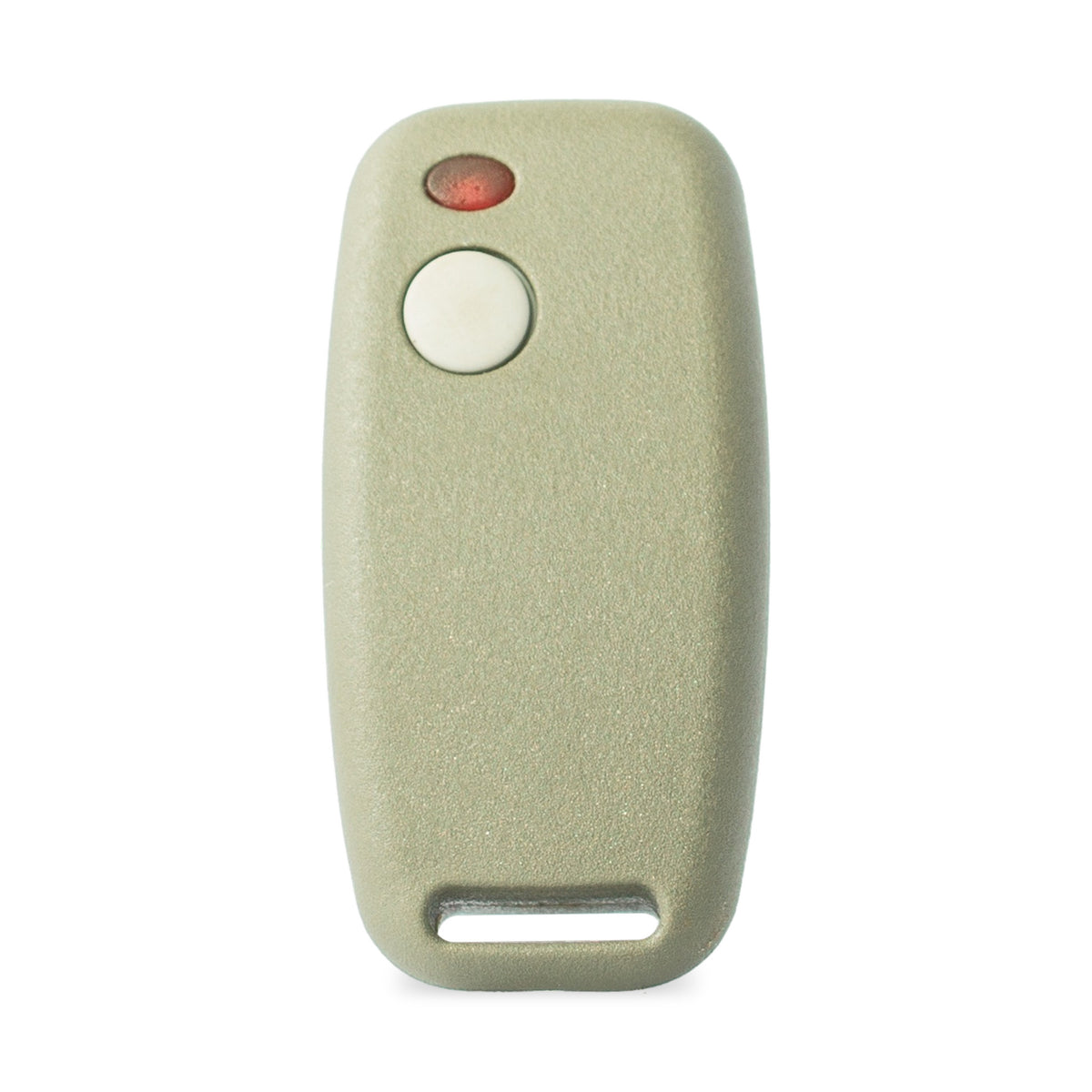

Sentry 1 Button Self-Learning Gate Remote 403MHz
R 150.00

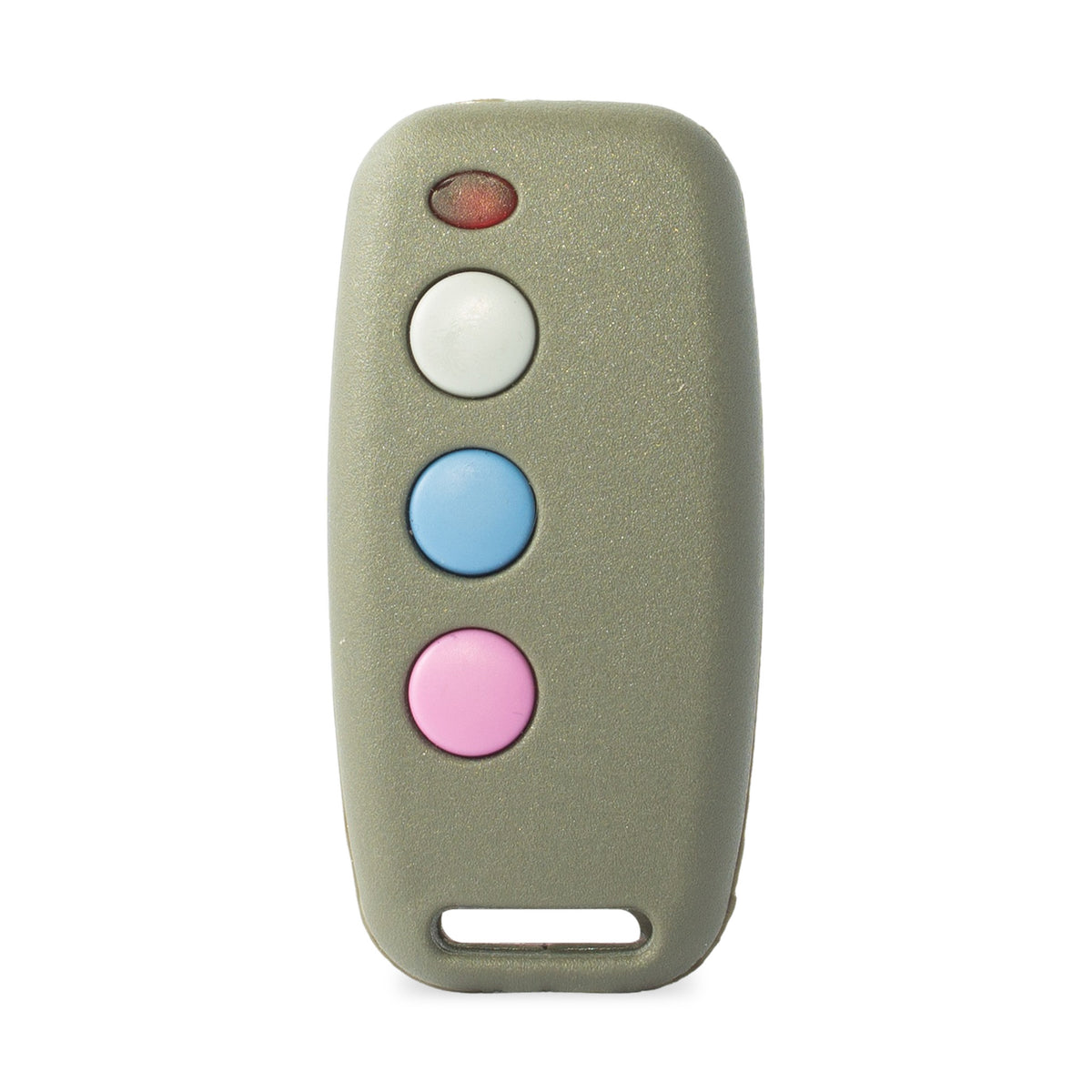

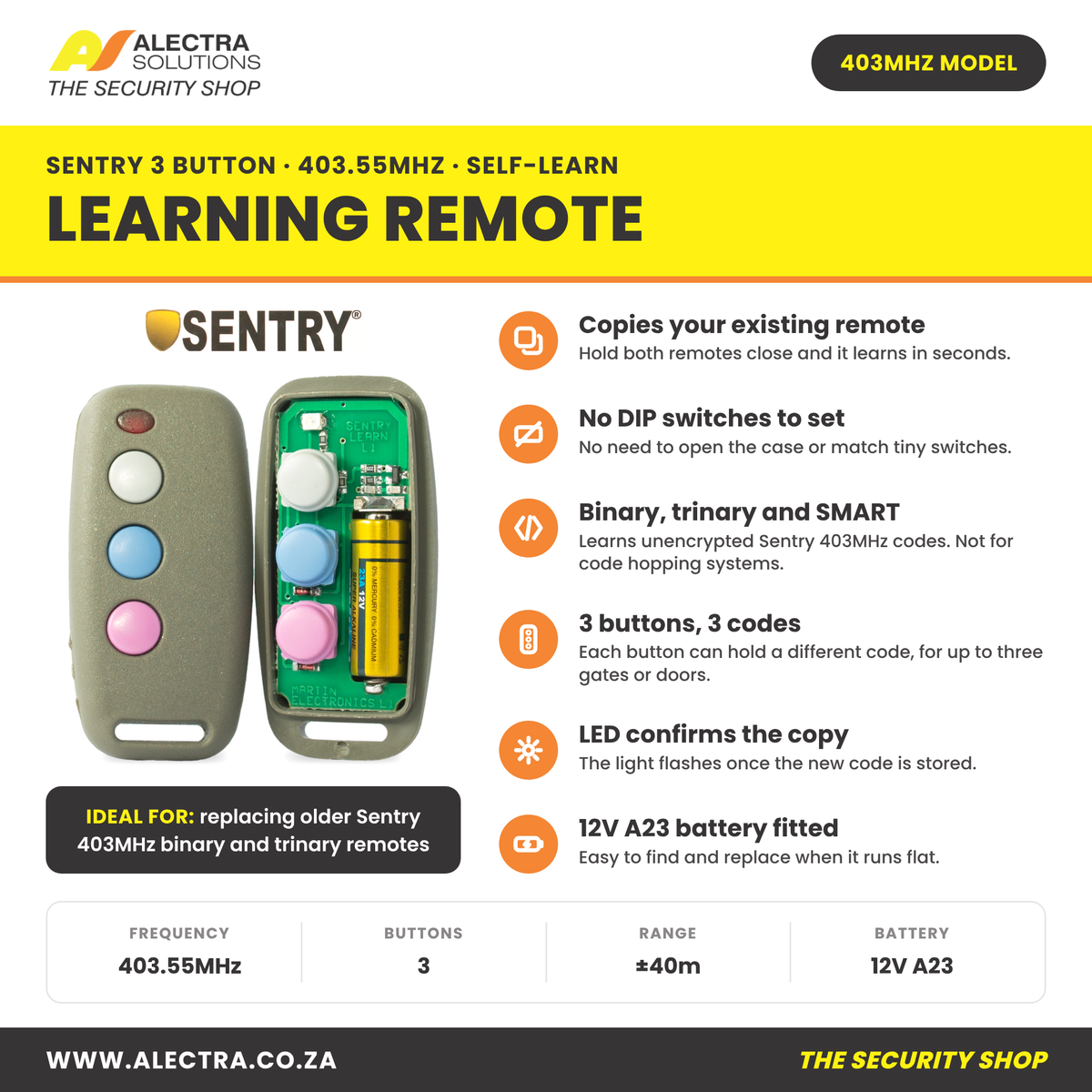

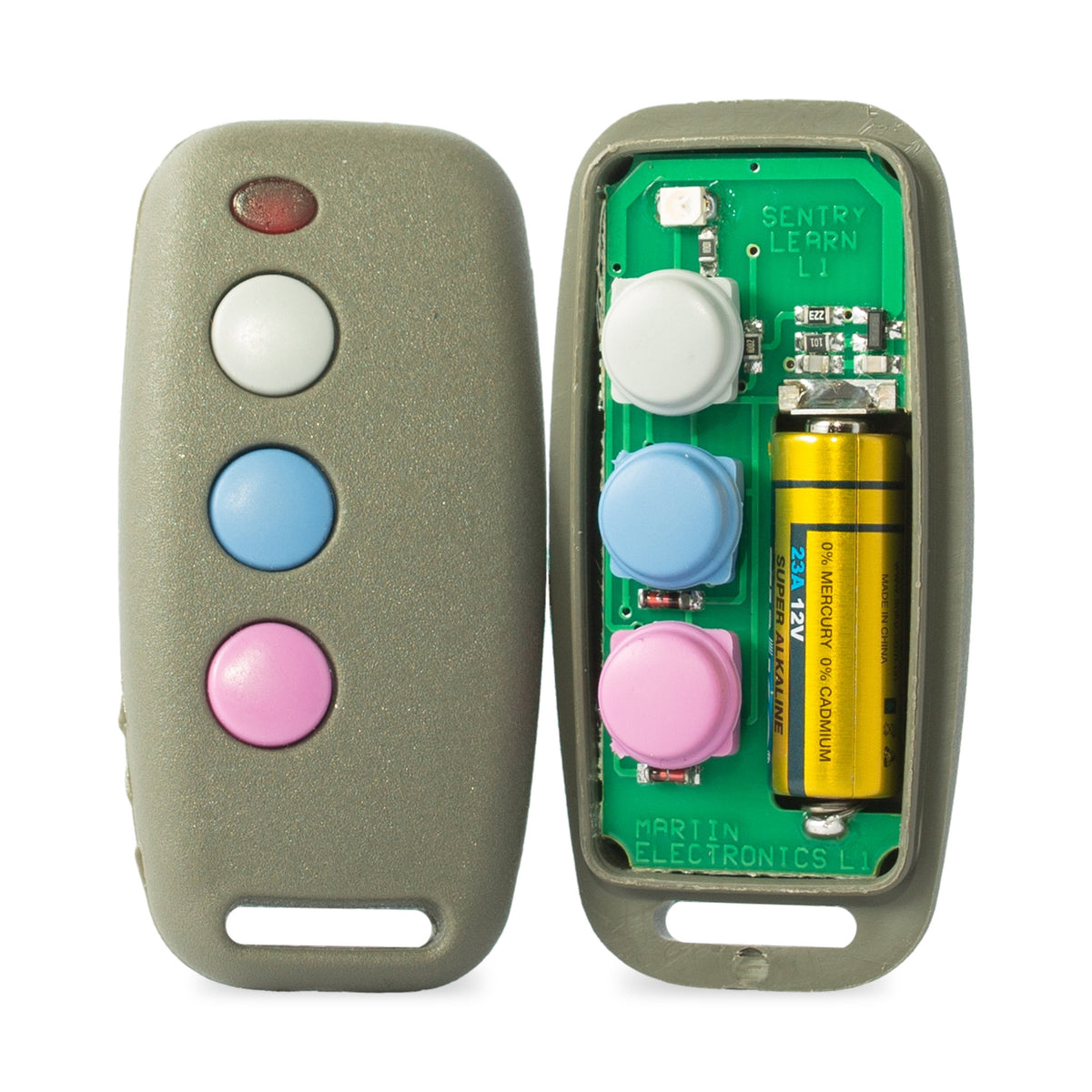

Sentry 3 Button Self-Learning Gate Remote 403MHz
R 165.00
Sentry 1 Channel Code Hopping Receiver 433MHz (Blue Dot)
R 245.00
Sentry 1 Channel Code Hopping Receiver 403MHz
R 185.00

The Sentry dual frequency learning remote (model METX4-D) copies the remotes you already have onto one handset. It works on both 403.55MHz and 433.92MHz, each of its four buttons can learn a different remote, and it knows seven code types, so one Sentry can replace several gate, garage and alarm remotes.

Which remotes can it copy?

It learns binary, inverted binary, trinary, inverted trinary, French, Smart and code hopping remotes on 403MHz or 433MHz. If you are not sure what your remote uses, bring it to one of our branches and we will check the frequency and code type for you.

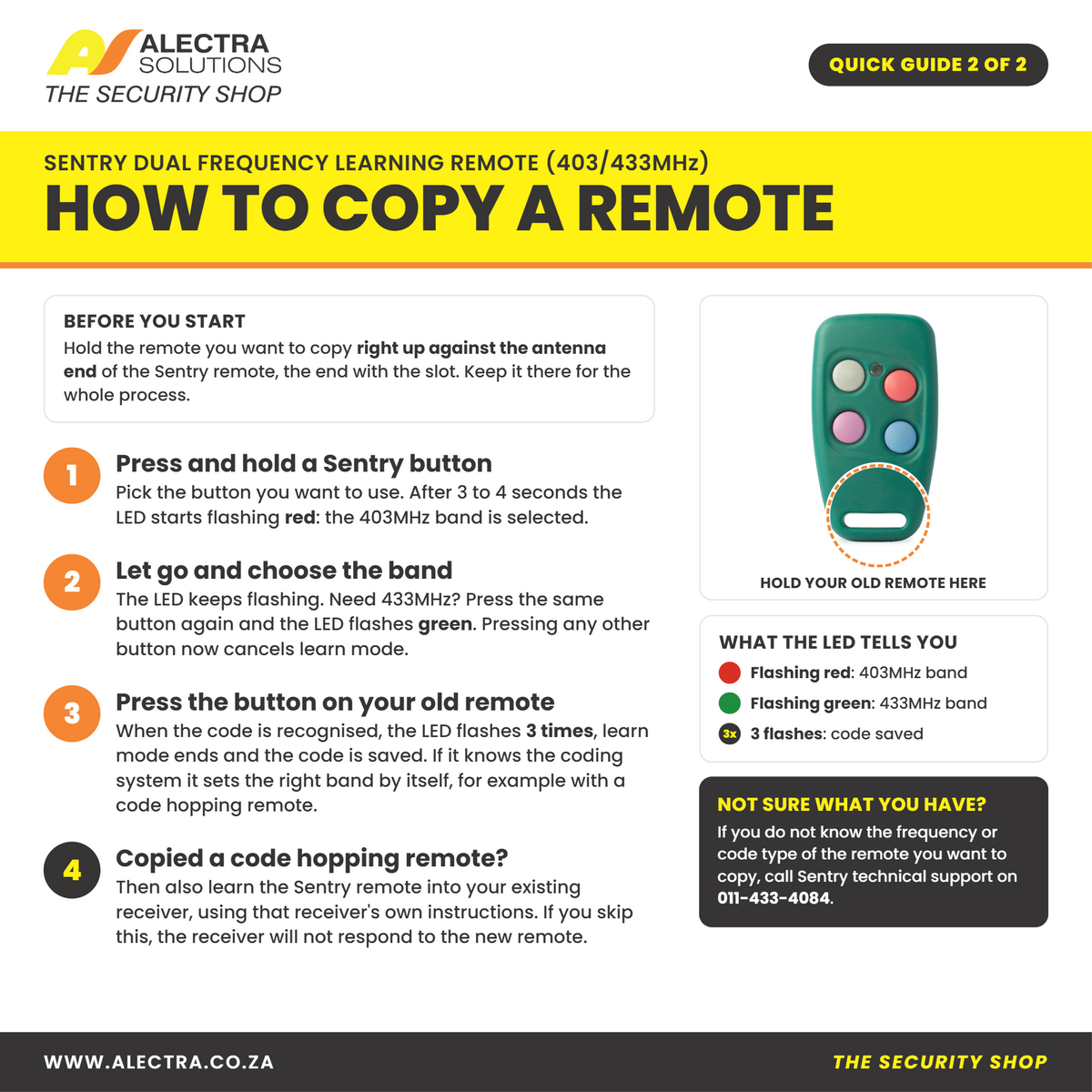

How to copy a remote

  • Hold your old remote right up against the slot end of the Sentry, where its receiving antenna is.
  • Press and hold the Sentry button you want to use. After 3 to 4 seconds the LED flashes red for the 403MHz band.
  • Need 433MHz? Press the same button again and the LED flashes green.
  • Press the button on your old remote. The LED flashes 3 times when the code is saved.

Copying a code hopping remote? Then the Sentry must also be learned into your receiver, using that receiver's own instructions, or the receiver will not respond to it. The full steps are in the quick guides in the photos. Alectra Solutions supplies the remote only.

Specs and warranty

It runs on an internal 12V 23A battery, transmits at 350mW, measures 65 x 32 x 14mm and weighs 30g. It is ICASA approved and CE marked, and carries Sentry's 24 month carry-in warranty, batteries excluded. For a single-frequency 403MHz copier, see the Sentry 1 button self-learning remote.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.

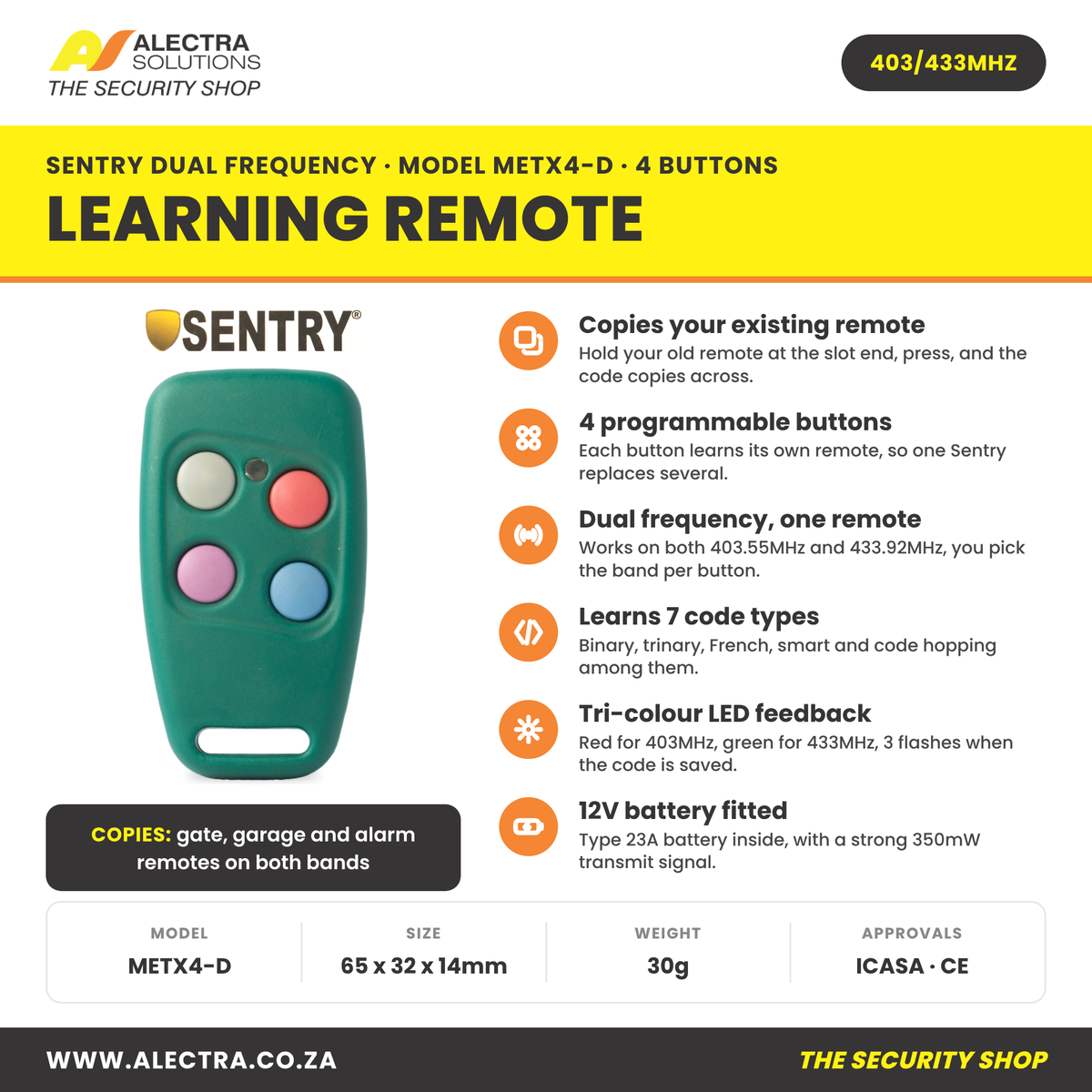

Key features
  • Copies your existing remote. Hold your old remote at the slot end, press, and the code copies across.
  • 4 programmable buttons. Each button learns its own remote, so one Sentry replaces several.
  • Dual frequency, one remote. Works on both 403.55MHz and 433.92MHz, and you pick the band per button.
  • Learns 7 code types. Binary, inverted binary, trinary, inverted trinary, French, Smart and code hopping.
  • Tri-colour LED. Red for 403MHz, green for 433MHz, 3 flashes when the code is saved.
  • Strong signal. 350mW transmit power from an internal 12V 23A battery.
Specifications
BrandSentry (made by Martin Electronics)
ModelMETX4-D
Buttons4, each programmable
Frequency bands403.55MHz and 433.92MHz
Codes it learnsBinary, inverted binary, trinary, inverted trinary, French, Smart, code hopping
Power sourceInternal 12V battery (type 23A)
Transmit power350mW
Current consumption9mA active
Size65 x 32 x 14mm
Weight30g
Operating temperature0°C to 40°C
Operating humidityBelow 80%
ApprovalsICASA, CE, ETSI 300 683, ETSI 300 220-1, MPT 1340
ColourGreen case, grey, red, pink and blue buttons
Warranty24 months Sentry, carry-in, batteries excluded
Sold asSingle remote
Not in the box
  • Your existing remotes to copy from
  • Receiver or gate motor
Questions people ask
Can it clone any gate remote?

It copies remotes that use binary, inverted binary, trinary, inverted trinary, French, Smart or code hopping codes on 403MHz or 433MHz. If you are not sure what yours uses, bring it to a branch and we will check.

Why does a copied code hopping remote not open my gate?

With code hopping, the Sentry must also be learned into your receiver after the copy. Use your receiver's own learning steps.

Can each button copy a different remote?

Yes. Each of the four buttons learns its own remote, on either band.

How do I know which band a button is on?

The LED flashes red for 403MHz and green for 433MHz while you program it.

Which battery does it take?

An internal 12V battery, type 23A.

Will Alectra copy my remote for me?

No. Alectra Solutions supplies the remote only. The quick guides in the photos show each step.
