ET Nice Drive 600 High Traffic Sliding Gate Motor Kit (500kg)
High traffic 12V sliding gate motor for gates up to 500kg. A built-in ACDC power pack runs it from 220V at a 98% duty cycle, with battery backup. In the box: motor and base plate, 4m nylon rack and a 12V 7Ah battery.
- 500kgMax gate weight
- 98%Duty cycle on mains
- 30 m/minGate speed
- 1,023 remotesReceiver memory
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.

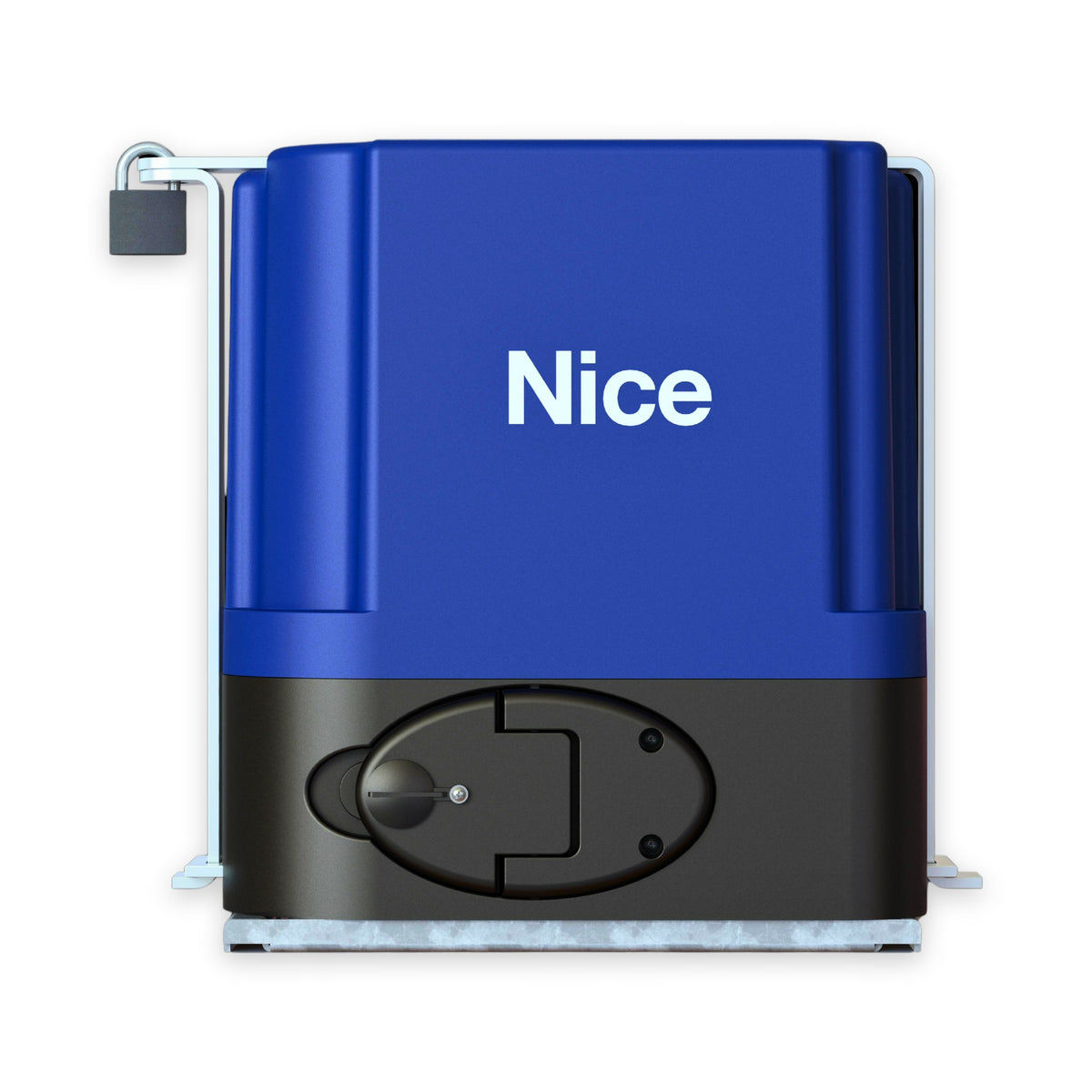

The ET Nice Drive 600 is the high traffic motor in the ET Drive range, for sliding gates up to 500kg that open all day: complexes, estates, offices and busy driveways. An ACDC power pack inside the motor runs it from 220V mains at a 98% duty cycle, and the 12V battery is there for power cuts. This kit is the motor with its base plate, 4m of nylon rack and a 12V 7Ah battery. For a quieter home gate see the Drive 500, and for gates over 500kg this ET Nice gate motor's big brother, the Drive 1000.
What's in the box
- ET Nice Drive 600 motor with base plate and built-in ACDC power pack
- 2 x 2m nylon racks (4m)
- 1 x 12V 7Ah battery
Power pack with battery backup
The Drive 600 is hard-wired to 220V through an all-pole isolator within 1.5m of the motor, by a registered electrician. On mains the power pack drives the motor directly, so the battery is not worn down by normal use. When the power goes off the Drive 600 switches to the battery, for about 100 openings in the first 24 hours on a 5m gate. When the battery is old, swap in a standard 12V 7Ah gate motor battery such as our G-MAX7 12V 7.2Ah sealed lead acid battery. Alectra Solutions supplies the equipment only.
Drive 600 or Drive 500: which ET Nice gate motor?

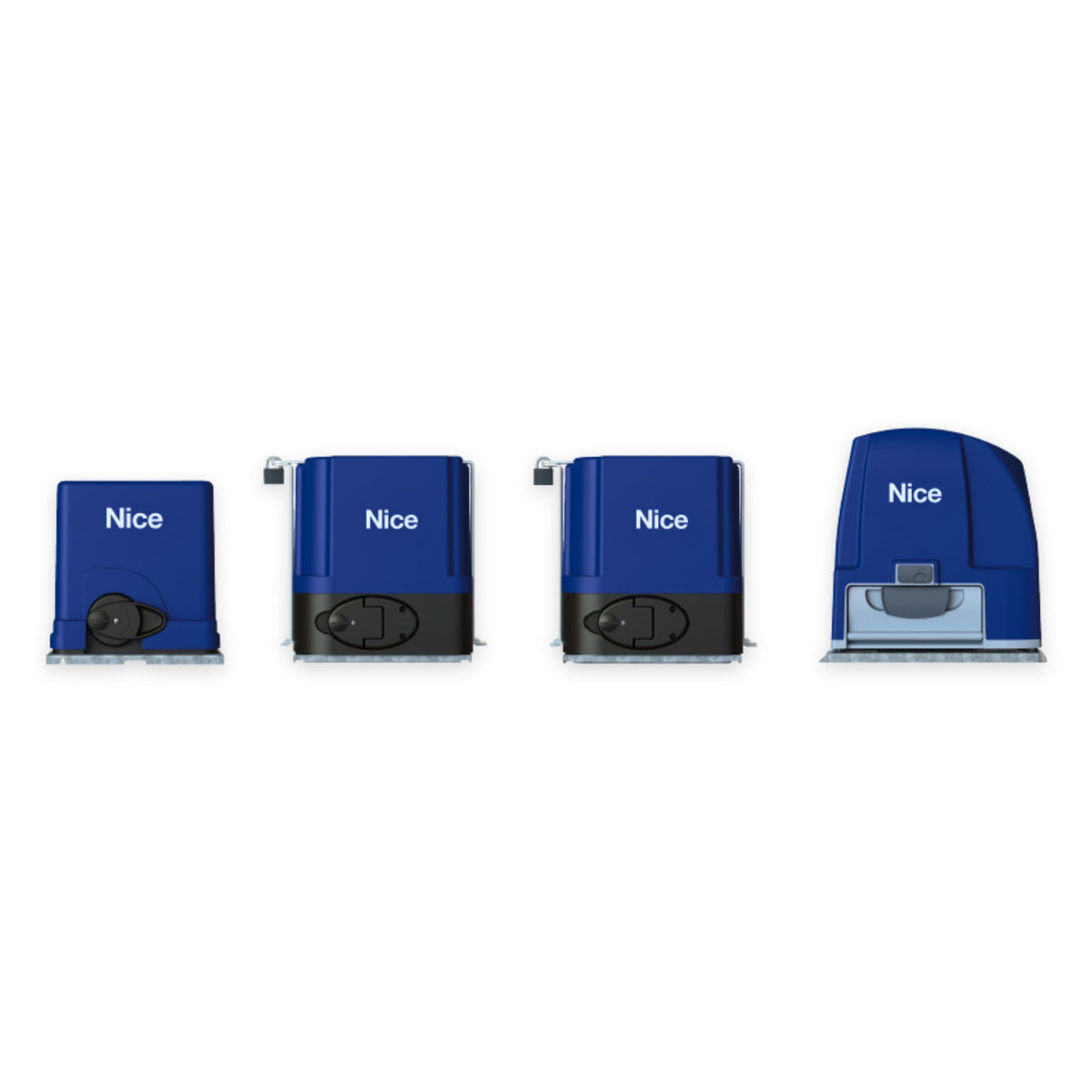

Both are rated for 500kg gates. The Drive 500 is the low traffic model (25% duty cycle) for most homes. The Drive 600 is the one to choose when the gate opens many times an hour. For industrial gates up to 1,000kg see the Drive 1000, and for light gates the Drive 300.
Make it smart
Want to open the gate from your phone? Add the Gemini Gemlink Lite. Gemini says it works with almost any gate motor, old or new, and it gives you Bluetooth control at the gate and WiFi control from anywhere.
Built with security in mind
The ET Blu Mix rolling code receiver stores up to 1,023 remotes and still works with older ET Blue remotes. Programming can be locked with a PIN code, and the controller monitors the gate and safety beams for tampering. Holiday lock-out, party mode and positive close are built in. ET Nice gives a 12 month warranty on the motor and 6 months on the battery, with brushes excluded.
Key features
- Built for high traffic. The ACDC power pack runs the motor from the mains at a 98% duty cycle, so it copes with gates that open all day.
- True battery backup. The 12V 7Ah battery is only used when the power is off, for about 100 openings in the first 24 hours of a power cut.
- Hard-wired 220V supply. The power pack is inside the motor, so there is no separate transformer. A registered electrician wires the 220V through an all-pole isolator within 1.5m.
- Up to 30 m/min. A DC motor with removable brushes for easy maintenance.
- Backlit display. Large backlit display for programming, diagnostics and fault reporting.
- ET Blu Mix receiver. Rolling code on 433.92MHz with memory for 1,023 remotes, and it still takes ET Blue remotes.
- Collision detection. Electronic gate profiling stops the gate when it meets an obstruction.
- Security built in. Monitors the gate and the safety beams for tampering, PIN-lockable programming and a lockable manual release.
- Useful modes. Auto-close, holiday lock-out, party mode and positive close.
Specifications
| Max gate weight and travel | 500kg, up to 99m of travel |
|---|---|
| Power supply | 220 to 240V AC, 50/60Hz, to the built-in ACDC power pack; hard-wired through an all-pole isolator within 1.5m by a registered electrician |
| Motor | 12V DC, current limited to 25A |
| Battery and charger | 12V 7Ah battery in the box, backup only; multi-stage auto-calibrating 1A charger |
| Openings in a power cut | About 100 in the first 24 hours, 5m gate |
| Duty cycle | 98% with mains present (high traffic) |
| Gate speed | Up to 30 m/min |
| Rated load | 200N |
| Peak power | 240W |
| Receiver | ET Blu Mix rolling code, 433.92MHz, 4 channels, 1,023 remotes, also takes ET Blue |
| Auxiliary output | 12V DC, 500mA |
| Size and protection | 285 x 227 x 318mm (W x D x H), IPX4, -10°C to +50°C |
| In the box | Motor with base plate and built-in ACDC power pack, 2 x 2m nylon racks, 12V 7Ah battery |
| Sold as | Kit |
Not in the box
- Safety beams
- Extra rack for gates longer than 4m
- Solar kit
Manuals and documents
Questions people ask
The motor with its base plate and built-in power pack, 2 x 2m nylon racks and a 12V 7Ah battery.
No. ET rates the Drive 600 for gates up to 500kg, the same as the Drive 500. The 600 is the high traffic version with a 98% duty cycle. For heavier gates use the Drive 1000.
It is hard-wired to 220V through an all-pole isolator within 1.5m of the motor, by a registered electrician. The power pack is built in, so there is no separate transformer. Alectra Solutions supplies the equipment only.
Yes. It switches to the 12V battery and ET rates it at about 100 openings in the first 24 hours of a power cut on a 5m gate.
12V. It takes a standard 12V 7Ah gate motor battery.
ET Blu Mix remotes, and it still works with older ET Blue remotes. The receiver stores up to 1,023 remotes.
Yes. There is a monitored safety beam input, and ET requires beams when you use auto-close.
ET Nice gives 12 months on the motor and 6 months on the battery. Brushes are excluded.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
