ET Nice Drive 1000 sliding gate motor

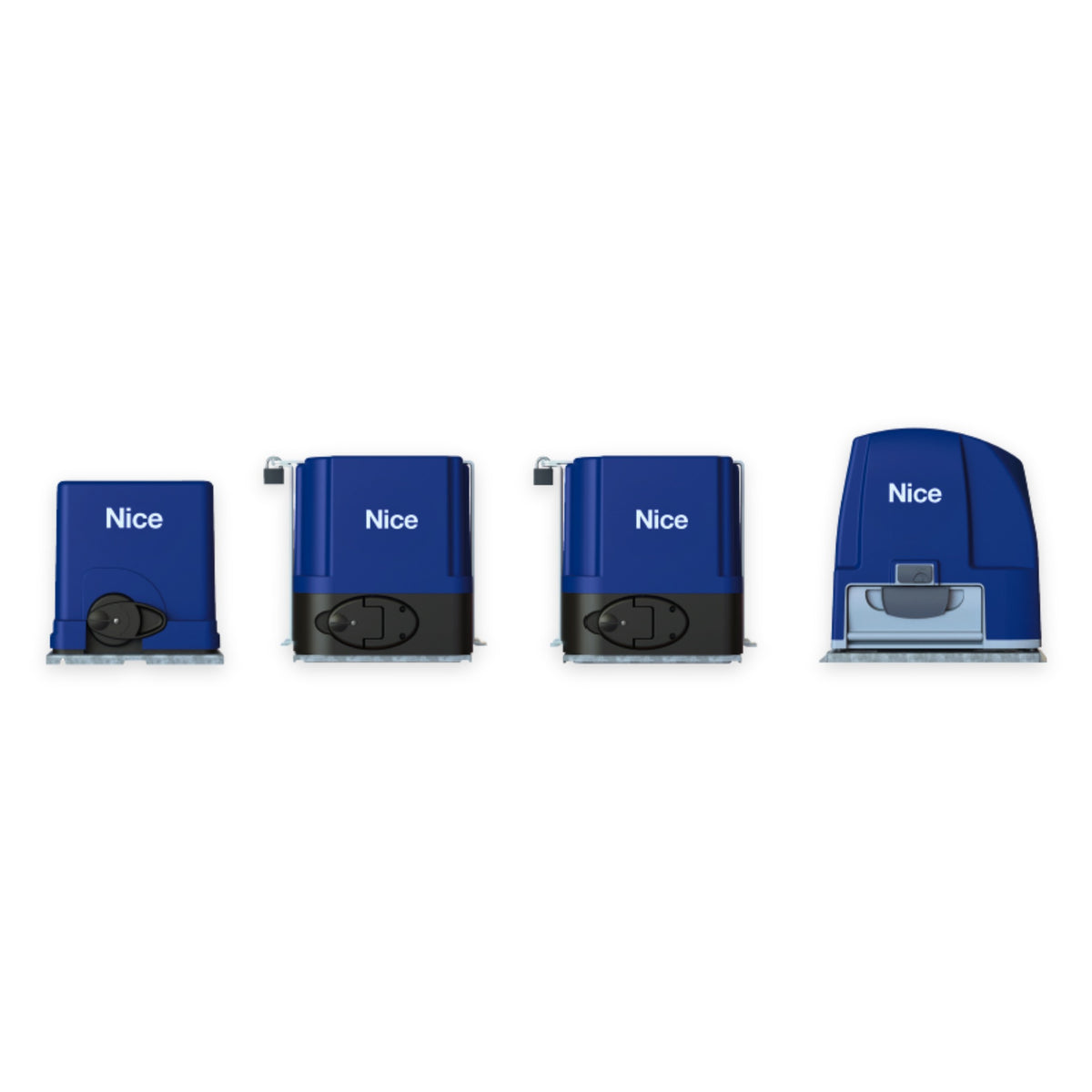

ET Nice Drive range: Drive 300, Drive 500, Drive 600 and Drive 1000 sliding gate motors
By ET Nice

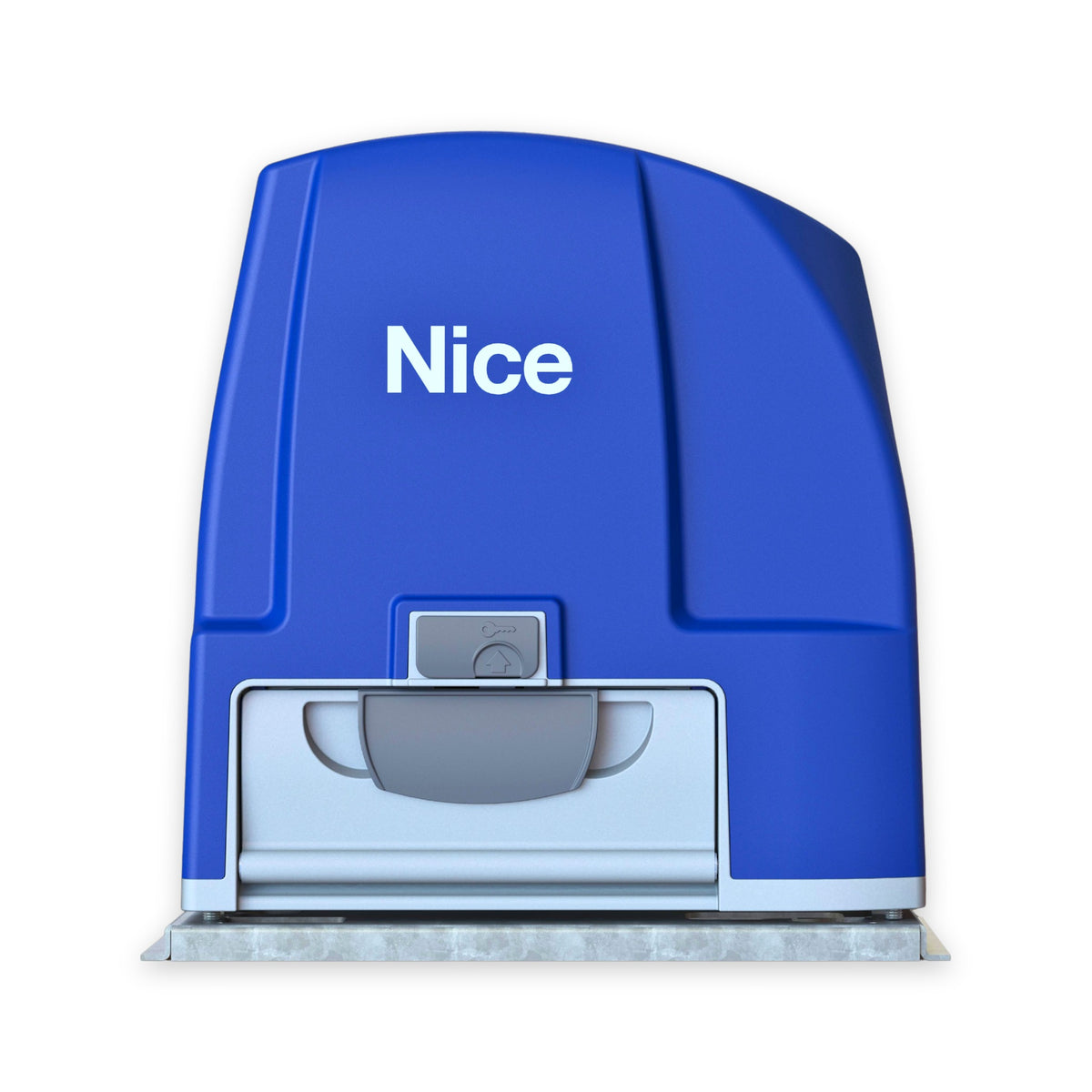

ET Nice Drive 1000 Industrial Sliding Gate Motor (1000kg)

24V sliding gate motor for industrial gates up to 1,000kg and 40m. A 288VA power pack runs it from 220V at a 98% duty cycle, with a 24V battery as backup. Motor and base plate only: rack, remotes and battery sold separately.

  • 1,000kgMax gate weight
  • 98%Duty cycle on mains
  • 28 m/minGate speed
  • 40mMax gate travel
R 10,999.00
Collect at a branch, no charge
  • Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00
    Get directions
  • Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45
    Get directions

Choose Pickup at checkout and we message you when your order is ready to collect.
Pairs well with
Nylon Gate Motor Rack 2m for Sliding Gates (Nylon Angle Rack)
R 250.00
Gemini Steel Gate Motor Rack 2m
R 320.00
Gemini Gemlink Lite Smart Device, WiFi and Bluetooth Gate and Garage Door Opener
R 705.00

The ET Nice Drive 1000 is a 24V sliding gate motor for industrial and commercial gates up to 1,000kg and 40m long: factories, warehouses, estates and busy entrances. A 288VA toroidal transformer power pack runs it from 220V mains at a 98% duty cycle, with a 24V battery as backup. This listing is the motor and its base plate only, so you choose the rack, remotes and battery your site needs. For home gates up to 500kg, see the Drive 500 or the high traffic Drive 600.

What's in the box

  • ET Nice Drive 1000 motor with built-in ACDC power pack
  • Base plate with adjustable motor levelling

Rack, remotes, battery and the anti-theft bracket are not included. Add ET Blu Mix 4-button remotes and nylon or steel rack, and ask us about the 24V battery and ET's optional theft-deterrent bracket.

Power pack with battery backup

The Drive 1000 is hard-wired to 220V through an isolator by a registered electrician. On mains the 288VA toroidal transformer drives the 250W motor directly, so the battery is not worn down by normal use. Fit a 24V 5Ah battery and the Drive 1000 keeps going for about 100 openings in the first 24 hours of a power cut on a 5m gate. Upgrade to 2 x 24V 3.5Ah batteries and ET gives about 150 operations. Alectra Solutions supplies the equipment only.

Is the Drive 1000 the right ET Nice gate motor?

Choose it for gates between 500kg and 1,000kg, or any big gate that runs all day. For home gates up to 500kg the Drive 500 or high traffic Drive 600 are the better fit, and for light gates up to 300kg see the Drive 300.

Make it smart

Want to open the gate from your phone? Add the Gemini Gemlink Lite. Gemini says it works with almost any gate motor, old or new, and it gives you Bluetooth control at the gate and WiFi control from anywhere.

Built with security in mind

The ET Blu Mix rolling code receiver stores up to 1,023 remotes and still works with older ET Blue remotes. The controller raises an alarm if the gate is forced open, kept open or its limit switches are tampered with, monitors the safety beams, logs events and faults on screen, has an RF jamming and signal strength tester, and lets you disable manual operation of the control card. Holiday lock-out and positive close are built in. ET Nice gives a 12 month warranty on the motor and 6 months on the battery, with brushes excluded.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • Built for 1,000kg gates. A 24V 250W motor for industrial sliding gates up to 1,000kg and 40m of travel.
  • Runs all day. A 288VA toroidal transformer power pack gives a 98% duty cycle on mains, with the battery only as backup.
  • Battery backup. Add a 24V 5Ah battery for about 100 openings in the first 24 hours of a power cut, or 2 x 24V 3.5Ah for about 150.
  • Adjustable speed. Up to 28 m/min, and the speed can be turned down on the controller.
  • Large backlit LCD. Clear menus for setup, with on-screen event and fault logging.
  • ET Blu Mix receiver. Rolling code on 433.92MHz with memory for 1,023 remotes, and it still takes ET Blue remotes.
  • Collision detection. Precise gate profiling monitors the load and stops the gate on an obstruction.
  • Alarms and RF tools. Alarms for a gate forced open, kept open, limit switch tampering and safety beam tampering, plus an RF jamming and signal strength tester.
  • Modes and wiring. Auto-close, condominium and PIRAC modes, pedestrian opening, holiday lock-out and positive close. Accessories connect with normal wiring or Nice BlueBus.
Specifications
Max gate weight and travel1,000kg, up to 40m of travel
Power supply220 to 240V AC, 50/60Hz, to the built-in power pack; hard-wired through an isolator by a registered electrician
Power pack288VA toroidal transformer
Motor24V DC, 250W, current limited to 13A
Battery and charger24V 5Ah, not in the box, backup only; multi-stage auto-calibrating 500mA charger
Openings in a power cutAbout 100 in the first 24 hours with a 5Ah battery (5m gate); about 150 with 2 x 24V 3.5Ah
Duty cycle98% with mains present (high traffic)
Gate speedUp to 28 m/min, adjustable
Rated load600N (ET Drive 1000 installer manual)
Peak power350W
ReceiverET Blu Mix rolling code, 433.92MHz, 4 channels, 1,023 remotes, also takes ET Blue
Size, weight and protection359 x 237 x 355mm (W x D x H) plus 16mm base plate, about 16.25kg, IPX4, -10°C to +50°C
In the boxMotor with built-in power pack, base plate with adjustable motor levelling
Sold asMotor and base plate only
Not in the box
  • 24V battery
  • Remotes
  • Gate rack
  • ET theft-deterrent bracket (optional)
  • Safety beams
Manuals and documents
Questions people ask
What comes with the Drive 1000?

The motor with its built-in power pack and the base plate. Rack, remotes, battery and the anti-theft bracket are sold separately.

Which battery does it take?

A 24V 5Ah battery, fitted inside the motor, for about 100 openings in the first 24 hours of a power cut. With 2 x 24V 3.5Ah batteries ET gives about 150. On mains the power pack drives the motor, so the battery is only there for power cuts.

How is the Drive 1000 connected to the mains?

It is hard-wired to 220V through an isolator by a registered electrician. Alectra Solutions supplies the equipment only.

Is this the right ET Nice gate motor for my gate?

Choose it for gates up to 1,000kg on a straight, level track with good wheels, or for any big gate that runs all day. For gates up to 500kg the Drive 500 or Drive 600 is the better fit.

Which remotes work with it?

ET Blu Mix remotes, and it still works with older ET Blue remotes. The receiver stores up to 1,023 remotes.

Steel or nylon rack?

Both work. Steel rack is the usual choice for big industrial gates.

Is there an anti-theft bracket?

ET makes an optional theft-deterrent bracket for the Drive 1000. It is not in this box, so ask us about it.

Can it run from a plug-in transformer?

ET makes a 29V plug-in transformer version with a 25% duty cycle, but this listing is the standard high traffic 220V model.

Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
