Nemtek Hybrid Compression Spring 2, 8kg Gold Ratchet Tensioner (50 Pack)
50 pack of Nemtek Hybrid Compression Spring 2 tensioners: medium 8kg gold spring with a 1/4 inch ratchet built in, for 1.2mm galvanised or stainless and 1.6mm aluminium wire.
- 50Tensioners per pack
- 8kgMedium tension (gold spring)
- 1/4 inchRatchet drive, built in
- 1.6mmAluminium wire (1.2mm steel)
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect, usually within 24 hours. You can pay online, or pay at the branch when you collect.
A 50 pack of Nemtek Hybrid Compression Spring 2 tensioners for new fences and installers who keep stock. Each is the gold 8kg electric fence tensioner spring with Nemtek's ratchet built in, tightened with a 1/4 inch ratchet, rated for 1.2mm galvanised or stainless steel wire and 1.6mm aluminium wire. On a six or eight line fence the tensioner count adds up quickly, which is what the 50 pack is for. For one repair, the single tensioner is on its own page.
What's in the pack

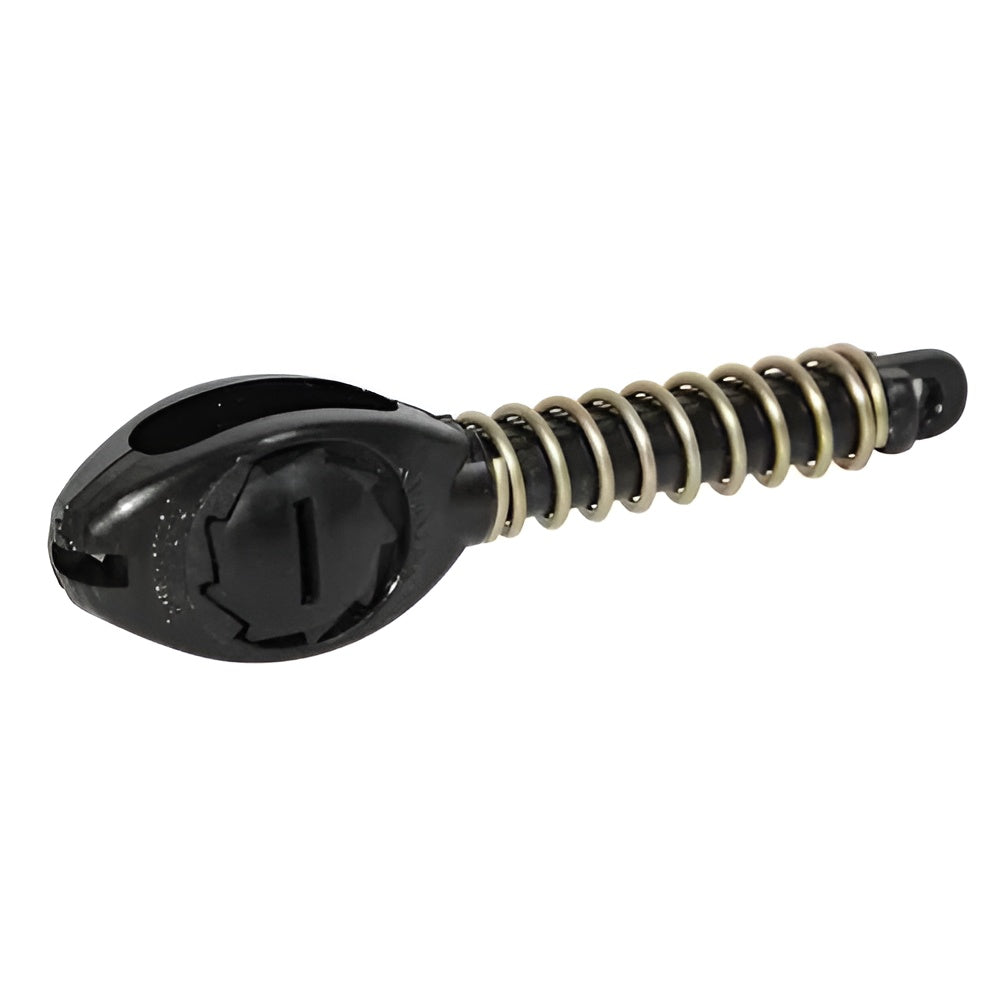

- 50 Nemtek Hybrid Compression Spring 2 tensioners, black body
Same tensioner as the single

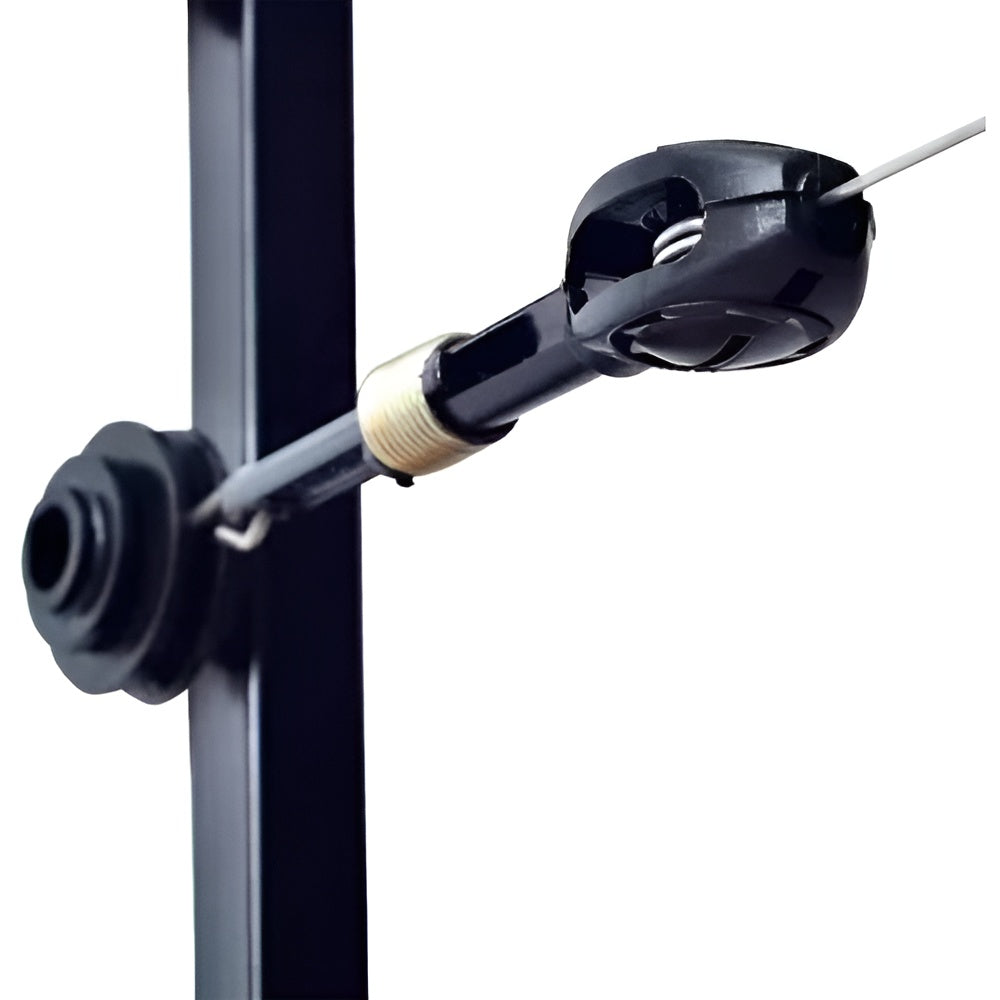

Only the quantity changes. Each unit is a medium 8kg gold stainless spring with a glass-filled nylon ratchet spindle, so you wind the strand tight with a 1/4 inch ratchet and the spring holds constant tension afterwards. Each one links to the end bobbin with a Nemtek large tail hook, so pair the 50 pack with a pack of hooks.
The spring for 1.6mm aluminium wire
Nemtek pairs the gold 8kg Hybrid Compression Spring 2 with its 1.6mm aluminium wire, so this is the pack to put with the 1000m or 500m stranded aluminium rolls or the solid aluminium alloy wire. Nemtek also rates it for up to 1.2mm galvanised and stainless steel wire. The standard 5kg silver spring with a ratchet is the Hybrid Compression Spring 1, 50 pack.
Gold is a tension class, not a grade
Gold means Nemtek's medium 8kg spring, as silver means the standard 5kg. It is not a higher grade of the same spring, and Nemtek does not limit it to any type of property or length of run.
Nylon inner, wide temperature range
The nylon inner between spring and wire stops galvanic reaction, and the body is UV stabilised plastic. Nemtek rates the unit for -40 to 80°C and 0 to 12kV, at 0.023kg each. Nemtek lists no pack size, so the 50 pack is our quantity.
Key features
- 50 tensioners for a full fence. The quantity for new fences and installers who keep stock. The single is on its own page.
- Spring and ratchet in one. Wind each strand tight with a 1/4 inch ratchet; the spring then holds constant tension.
- Medium 8kg gold spring. Nemtek's medium tension class, above the standard 5kg silver spring.
- For 1.6mm aluminium wire. The spring Nemtek pairs with its 1.6mm aluminium wire. Also rated for 1.2mm galvanised and stainless steel wire.
- Glass-filled nylon spindle. The ratchet spindle is glass-filled nylon.
- Nylon inner stops galvanic reaction. Keeps the spring and the fence wire apart. The body is UV stabilised plastic.
- -40 to 80°C, 0 to 12kV. Nemtek's temperature and fence voltage ratings.
Specifications
| Nemtek name | Hybrid Compression Spring 2 |
|---|---|
| Tension class | Medium 8kg (gold spring) |
| Wire size | Up to 1.2mm galvanised or stainless steel; up to 1.6mm aluminium |
| Tensioning | Built-in ratchet, 1/4 inch ratchet drive |
| Spindle | Glass-filled nylon |
| Inner | Nylon, stops galvanic reaction |
| Body | Black UV stabilised plastic |
| Operating temperature | -40 to 80°C |
| Fence voltage | 0 to 12kV |
| Weight | 0.023kg each |
| Connection to insulator | Nemtek large tail hook, sold separately |
| Sold as | Pack of 50 |
| Pack contents | 50 tensioners |
| Warranty | 1 year |
Not in the box
- 1/4 inch ratchet
- Large tail hooks
- Fence wire
Manuals and documents
Questions people ask
Yes. The Nemtek Hybrid Compression Spring 2, medium 8kg gold spring with built-in ratchet, sold as 50 instead of one.
Nemtek does not state a figure. Count the strands you will tension on your layout and keep spares; a 50 pack covers most home boundaries.
Nemtek rates it for up to 1.2mm galvanised or stainless steel wire and up to 1.6mm aluminium wire, and pairs it with its 1.6mm aluminium wire.
A 1/4 inch ratchet, which is not included. The spindle is built into each spring.
No. Each tensioner links to the bobbin with a Nemtek large tail hook, sold separately in a pack of 50.
No. Gold is Nemtek's colour code for the medium 8kg tension class. Silver is the standard 5kg class.
No. Nemtek lists no pack size for the spring. The 50 pack is our quantity.
No, anyone can buy it. The fence itself must be installed and certified by a registered electric fence installer. Alectra supplies the equipment only.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
