Centurion Systems VANTAGE 500 SMART+ Single Swing Gate Motor Kit

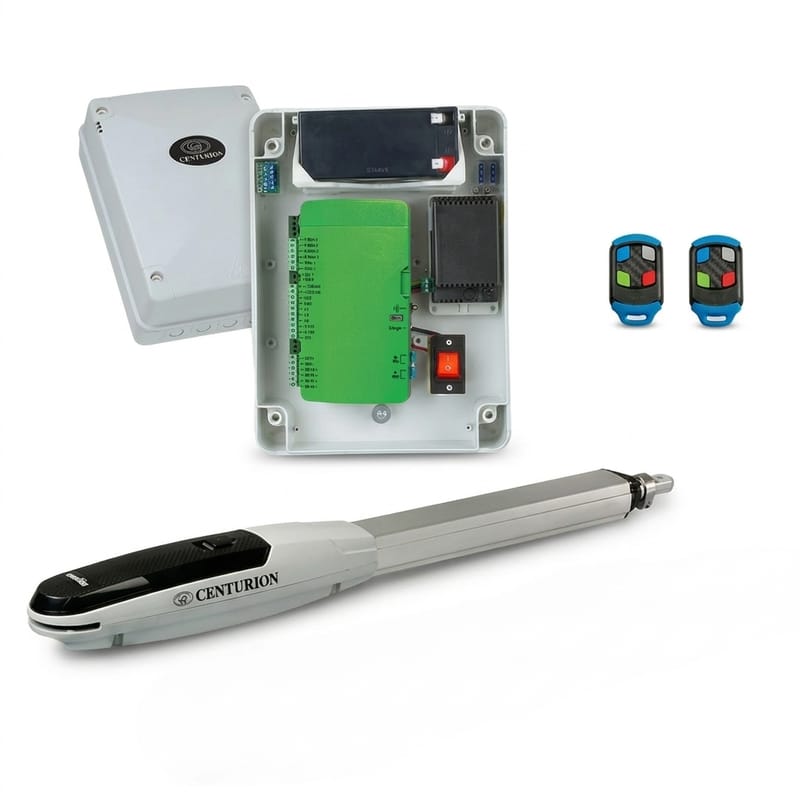

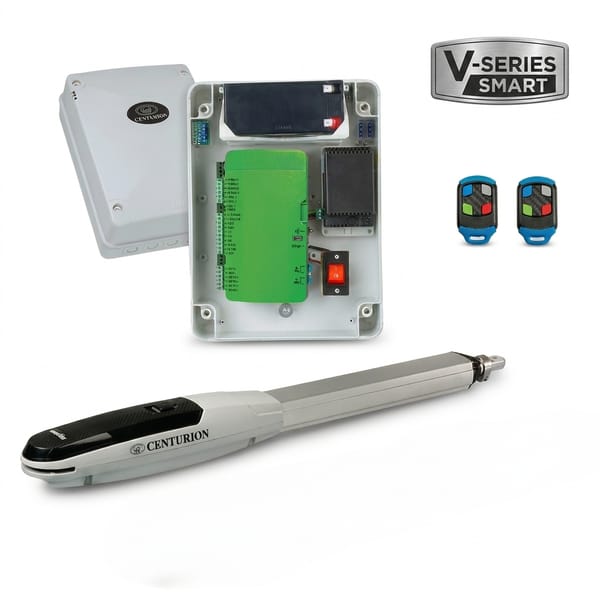

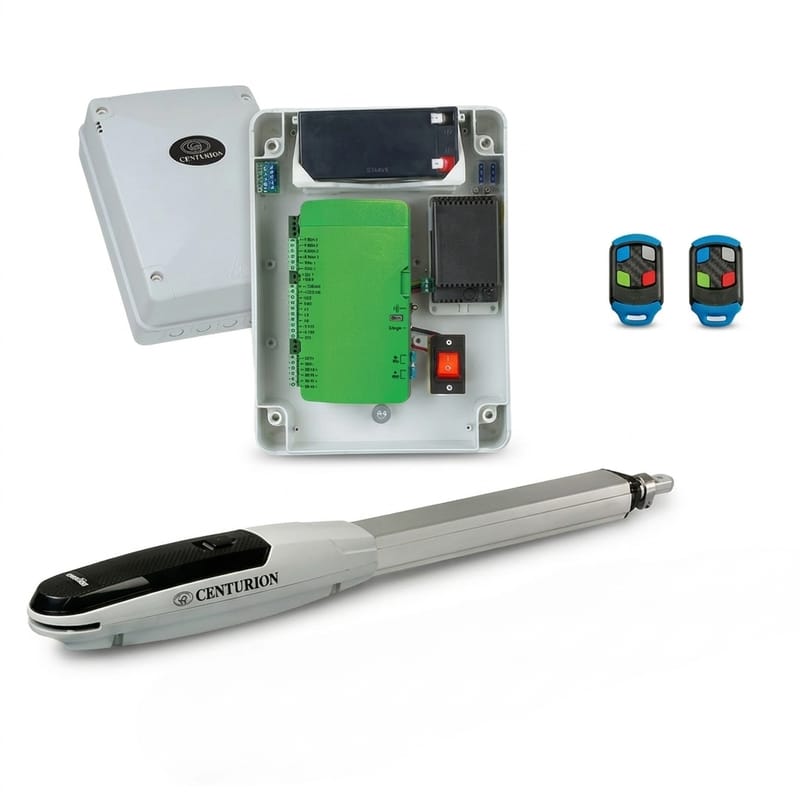

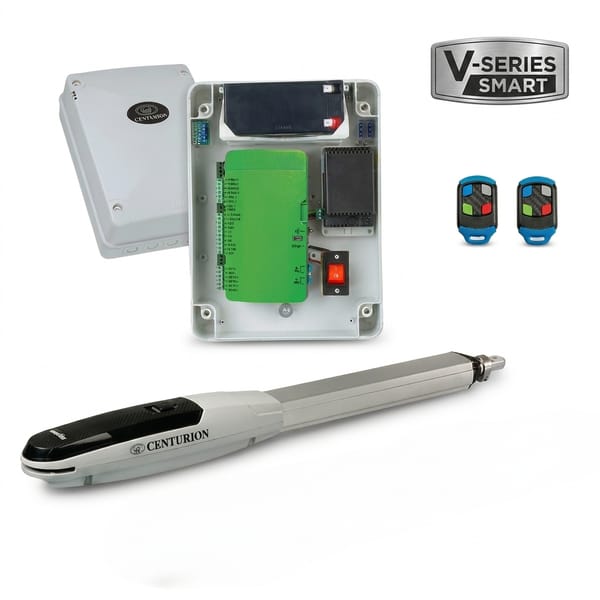

Centurion Systems VANTAGE 500 SMART+ kit for one swing gate leaf: operator with mounting hardware, Wall Box with Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery, plus remotes. Leaves up to 4m.
- 500mmStroke
- 750kgLeaf up to 2.5m
- 17.8sOpening time
- Wi-Fi + BLEBuilt in
Pricing for registered gate motor installers, electricians, security installation companies and building contractors.
Log in to see your priceNo trade account yet? Apply for one here
Buying for your own home? Ask for a formal quote and a sales agent will send you the price.
Get a formal quoteThis is the Centurion Systems VANTAGE 500 SMART+ swing gate motor kit for one gate leaf: one VANTAGE 500 operator with its mounting hardware, the Wall Box with the Vx SMART+ controller, charger, isolator and a 12V 7.2Ah battery, plus remotes. The 500 in the name is the 500mm stroke, not the gate weight. For a pair of gates, see the VANTAGE 500 SMART+ double swing gate motor kit. Pricing is shown to trade account holders after login.
How heavy a leaf can the Centurion Systems VANTAGE 500 swing gate motor take?
It depends on the length of the leaf. Centurion Systems rates it as follows:
- Leaf up to 2.5m: up to 750kg
- 3m leaf: up to 550kg
- 3.5m leaf: up to 410kg
- 4m leaf: up to 310kg
On a leaf longer than 2.5m an electric lock is needed.
What is in the Wall Box
The Wall Box holds the Vx SMART+ controller, the charger, an isolator and the 12V 7.2Ah battery in one enclosure. The charger keeps the battery topped up from the mains.
Speed, force and daily use
The operator opens in 17.8 seconds, has a force of 250kgf and is rated for 250 operations a day.
Wi-Fi, Bluetooth and the MyCentsys Remote app
Wi-Fi and Bluetooth (BLE) are built in, so you can work the gate from your phone with the MyCentsys Remote app. The receiver stores up to 1500 remotes.
For the cable run from the Wall Box to the operator, use 6 core VANTAGE motor cable, sold per metre. For safety beams, add Photon SMART wireless beams. Alectra Solutions supplies the equipment only. Trade account holders can open the Centurion Systems manual on this page after login.
Key features
- Single leaf kit. One operator with mounting hardware and one Wall Box, for one swing gate leaf.
- Leaves up to 4m. 750kg up to 2.5m, 550kg at 3m, 410kg at 3.5m and 310kg at 4m.
- Wall Box with controller and battery. Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery in one enclosure.
- 17.8 second opening. 250kgf force, rated for 250 operations a day.
- Built-in Wi-Fi and Bluetooth (BLE). Work the gate from your phone with the MyCentsys Remote app.
- 1500 remote memory. The receiver stores up to 1500 remotes.
- 500mm stroke. The 500 in the name is the stroke, not a weight rating.
Specifications
| Sold as | Single swing gate kit (1 operator) |
|---|---|
| In the box | 1 VANTAGE 500 SMART+ operator with mounting hardware, Wall Box (Vx SMART+ controller, charger, isolator, 12V 7.2Ah battery), remotes |
| Stroke | 500mm |
| Max leaf mass, leaf up to 2.5m | 750kg |
| Max leaf mass, 3m leaf | 550kg |
| Max leaf mass, 3.5m leaf | 410kg |
| Max leaf mass, 4m leaf | 310kg |
| Electric lock | Needed on leaves over 2.5m |
| Opening time | 17.8s |
| Force | 250kgf |
| Daily operations | 250 |
| Battery | 12V 7.2Ah, in the Wall Box |
| Connectivity | Wi-Fi and Bluetooth (BLE), built in |
| Receiver memory | 1500 remotes |
Not in the box
- Motor cable for the run from the Wall Box to the operator (sold per metre)
- Safety beams
- Electric lock, needed on leaves over 2.5m
Questions people ask
No. 500 is the stroke in mm. The leaf rating depends on leaf length: 750kg up to 2.5m, 550kg at 3m, 410kg at 3.5m and 310kg at 4m.
One operator with mounting hardware, the Wall Box with the Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery, and remotes.
Yes, if the gate leaf is longer than 2.5m.
The VANTAGE 500 SMART+ double swing gate motor kit, which has 2 operators and one Wall Box.
Yes. Wi-Fi and Bluetooth (BLE) are built in and work with the MyCentsys Remote app.
6 core motor cable for the run from the Wall Box to the operator, sold per metre.
Trade account holders can open the Centurion Systems manual on this page after login.
No. Alectra Solutions supplies the equipment only.
Need it fitted? Alectra Solutions supplies product only. Find a certified Centurion Systems installer at myinstaller.co.za.
