Centurion Systems VANTAGE 500 SMART+ Double Swing Gate Motor Kit

Centurion Systems VANTAGE 500 SMART+ kit for double swing gates: 2 operators with mounting hardware, 1 Wall Box with Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery, plus remotes. Leaves up to 4m.

  • 2 operatorsOne Wall Box
  • 500mmStroke
  • 750kgPer leaf up to 2.5m
  • 17.8sOpening time
Trade Account

Pricing for registered gate motor installers, electricians, security installation companies and building contractors.

Log in to see your price

No trade account yet? Apply for one here

Retail pricing

Buying for your own home? Ask for a formal quote and a sales agent will send you the price.

Get a formal quote

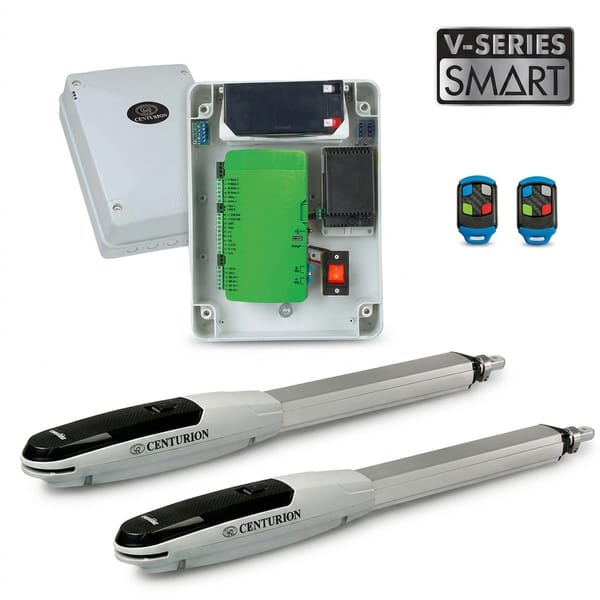

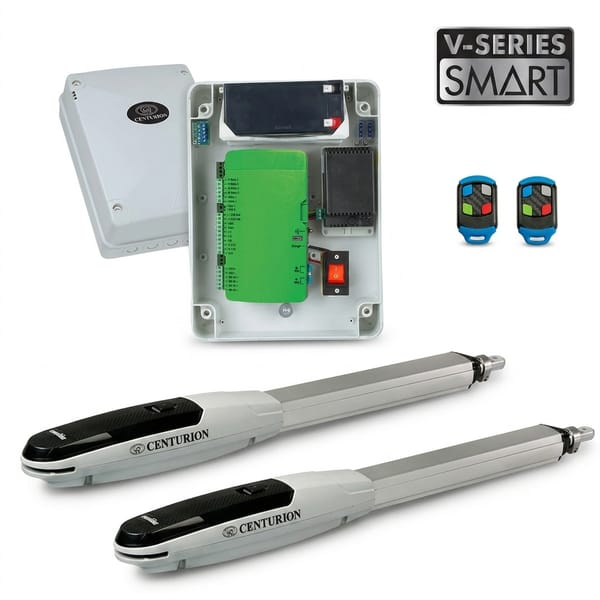

This is the Centurion Systems VANTAGE 500 SMART+ swing gate motor kit for a pair of gates: 2 VANTAGE 500 operators with their mounting hardware and 1 Wall Box holding the Vx SMART+ controller, charger, isolator and a 12V 7.2Ah battery, plus remotes. The 500 is the 500mm stroke, not the gate weight. For one gate leaf, see the VANTAGE 500 SMART+ single swing gate motor kit. Pricing is shown to trade account holders after login.

Double swing gate motor kit: what is in the box

  • 2 x Centurion Systems VANTAGE 500 SMART+ operators with mounting hardware
  • 1 x Wall Box with the Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery
  • Remotes

How heavy can each leaf be?

The rating is per leaf and depends on the leaf length:

  • Leaf up to 2.5m: up to 750kg
  • 3m leaf: up to 550kg
  • 3.5m leaf: up to 410kg
  • 4m leaf: up to 310kg

On leaves longer than 2.5m an electric lock is needed.

Speed, force and standby

Each operator opens in 17.8 seconds and has a force of 250kgf. It is rated for 250 operations a day, and Centurion Systems lists 70/58 operations in standby on the battery.

Phone control, cable and beams

Wi-Fi and Bluetooth (BLE) are built in, so you can work the gates from your phone with the MyCentsys Remote app. The receiver stores up to 1500 remotes. For the cable runs from the Wall Box to the operators, use 6 core VANTAGE motor cable, sold per metre, and add Photon SMART wireless beams for safety. Alectra Solutions supplies the equipment only. Trade account holders can open the Centurion Systems manual on this page after login.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • Double gate kit. 2 operators with mounting hardware, run from one Wall Box.
  • Leaves up to 4m. 750kg per leaf up to 2.5m, 550kg at 3m, 410kg at 3.5m and 310kg at 4m.
  • Wall Box with controller and battery. Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery in one enclosure.
  • 17.8 second opening. 250kgf force, rated for 250 operations a day.
  • 70/58 operations in standby. Standby figures as listed by Centurion Systems.
  • Built-in Wi-Fi and Bluetooth (BLE). Work the gates from your phone with the MyCentsys Remote app.
  • 1500 remote memory. The receiver stores up to 1500 remotes.
  • 500mm stroke. The 500 in the name is the stroke, not a weight rating.
Specifications
Sold asDouble swing gate kit (2 operators)
In the box2 VANTAGE 500 SMART+ operators with mounting hardware, 1 Wall Box (Vx SMART+ controller, charger, isolator, 12V 7.2Ah battery), remotes
Stroke500mm
Max leaf mass, leaf up to 2.5m750kg
Max leaf mass, 3m leaf550kg
Max leaf mass, 3.5m leaf410kg
Max leaf mass, 4m leaf310kg
Electric lockNeeded on leaves over 2.5m
Opening time17.8s
Force250kgf
Daily operations250
Operations in standby70/58
ConnectivityWi-Fi and Bluetooth (BLE), built in
Receiver memory1500 remotes
Not in the box
  • Motor cable for the runs from the Wall Box to the operators (sold per metre)
  • Safety beams
  • Electric lock, needed on leaves over 2.5m
Questions people ask
Is the VANTAGE 500 rated for 500kg per leaf?

No. 500 is the stroke in mm. The rating per leaf depends on leaf length: 750kg up to 2.5m, 550kg at 3m, 410kg at 3.5m and 310kg at 4m.

What is in this Centurion Systems VANTAGE 500 double swing gate motor kit?

2 operators with mounting hardware and 1 Wall Box with the Vx SMART+ controller, charger, isolator and 12V 7.2Ah battery, plus remotes.

Do both gates run off one Wall Box?

Yes. The kit has 2 operators and 1 Wall Box with the Vx SMART+ controller.

Do I need an electric lock?

Yes, if a gate leaf is longer than 2.5m.

Can I control the gates from my phone?

Yes. Wi-Fi and Bluetooth (BLE) are built in and work with the MyCentsys Remote app.

What cable do I need?

6 core motor cable from the Wall Box to each operator, sold per metre.

Where is the installation manual?

Trade account holders can open the Centurion Systems manual on this page after login.

Does Alectra Solutions fit the kit?

No. Alectra Solutions supplies the equipment only.
