Centurion Systems SDO5 SMART+ T12 Garage Door Motor Kit with Battery Backup and Wall Switch

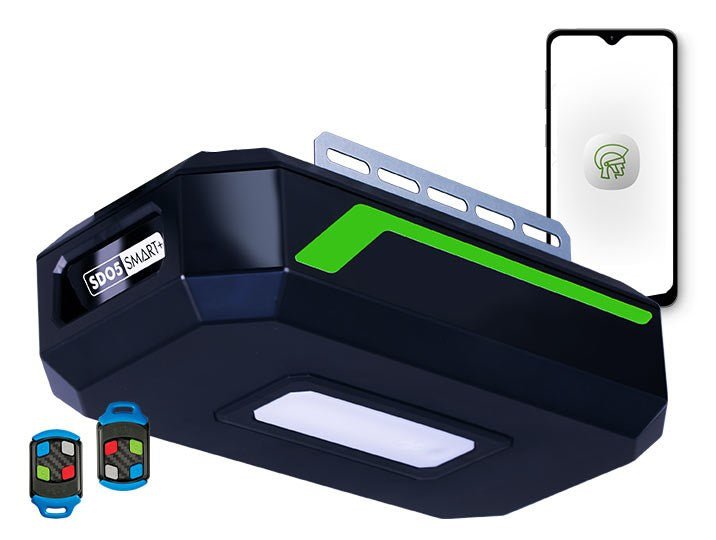

Centurion Systems SDO5 SMART+ T12 kit for bigger sectional garage doors up to 15 m² and 6.5m wide: 1200N, Wi-Fi and Bluetooth, quiet belt drive. Kit: head unit, wireless wall switch, sectional belt track, battery backup kit and 2 NOVA four-button remotes.
- 1200NHolding force
- 15 m²Max door area
- Wall switchWireless, in the kit
- Battery kitIncluded, 2 x 12V 2.9Ah
Pricing for registered gate motor installers, electricians, security installation companies and building contractors.
Log in to see your priceNo trade account yet? Apply for one here
Buying for your own home? Ask for a formal quote and a sales agent will send you the price.
Get a formal quoteThe Centurion Systems SDO5 SMART+ T12 is the stronger of the two SDO5 SMART+ garage door motors: 100W, 1200N holding force and 50kgf push and pull for bigger, heavier doors up to 15 m² and 6.5m wide, with Wi-Fi and Bluetooth built in. Alectra Solutions sells it as a full kit with a single-piece sectional belt track, the SDO5 SMART+ battery backup kit, 2 NOVA four-button remotes and the Centurion Systems wireless wall switch. For a standard home door up to 12 m², see the SDO5 SMART+ T10 kit (1000N, no wall switch). Pricing is shown to trade account holders after login.
What is in the SDO5 SMART+ T12 kit

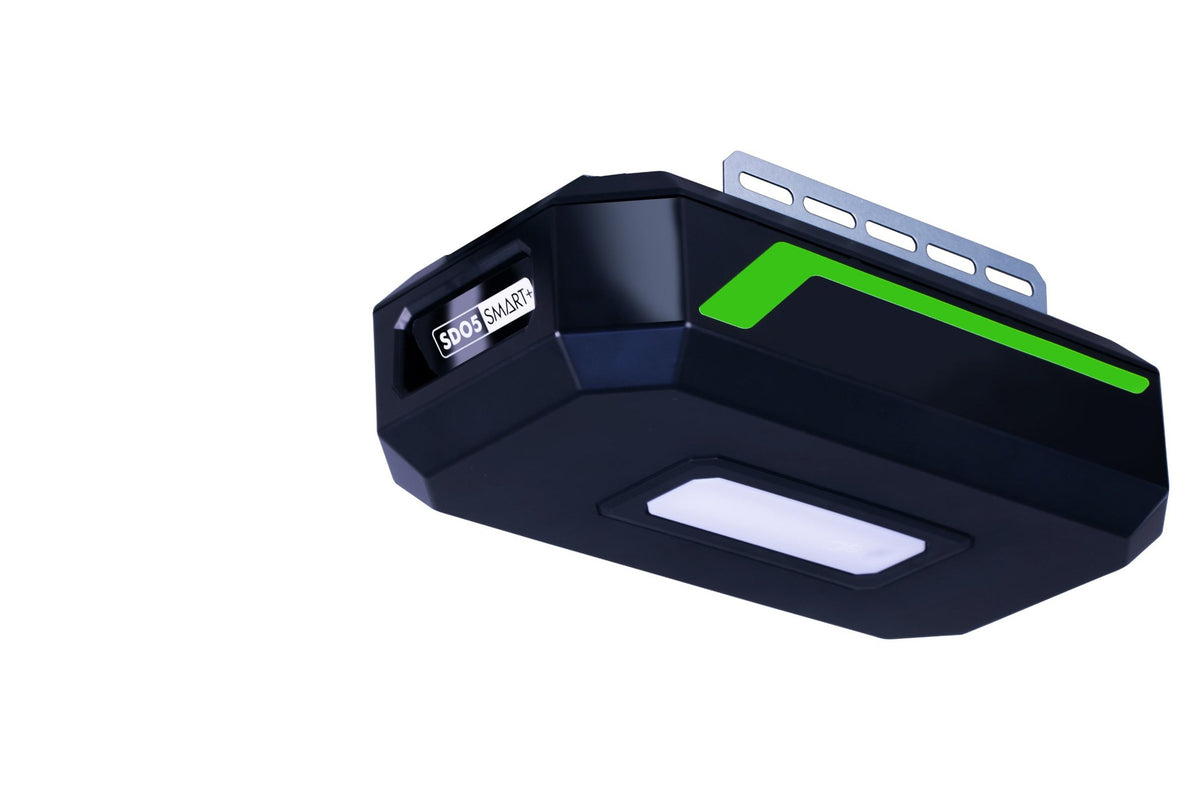

- SDO5 SMART+ T12 head unit with power cord
- Centurion Systems four-button wireless wall switch
- Single-piece belt drive track for sectional doors, 3196mm
- SDO5 SMART+ battery backup kit: 2 x 12V 2.9Ah batteries, battery housing and harness
- 2 x Centurion Systems NOVA four-button remotes
- Header bracket, bent towing arm and mounting kit
The four-button wireless wall switch opens and closes the door, turns on the light and switches on holiday lockout, with no wires to run. Safety beams are sold separately, such as the Centurion Systems Photon SMART wireless beams, and a SMARTGUARDair wireless keypad can be added for keypad access.
Battery backup sits inside the motor
The SDO5 SMART+ runs on mains power. Centurion Systems sells its battery backup separately, and this kit includes it: the SDO5 SMART+ battery backup kit with 2 x 12V 2.9Ah batteries, a battery housing and a harness. The battery housing screws onto the metal chassis under the motor cover, so there is no separate battery box on the wall. With the batteries fitted, the door keeps working during load shedding. Centurion Systems rates it for up to 70 operations on battery, depending on the door size, weight and height, how long the power is off and the condition of the batteries. The motor charges them at 870mA with built-in battery saving and testing.
Wi-Fi control with the MyCentsys apps
Wi-Fi (2.4GHz) and Bluetooth are built in. The installer sets the door limits and settings from a phone with the MyCentsys Pro app, the MyCentsys app adds remotes and users, and the MyCentsys Remote app opens and closes the door and shows its status from anywhere. You get alerts when the mains power goes off or comes back, on battery status and when someone tampers with the door or the motor, and a door service monitor tells you when the door is due for a service. With a one-time PIN you can let your installer check the fault log remotely before a callout.
Will the SDO5 SMART+ T12 garage door motor suit your door?
The T12 is rated for doors up to 15 m² and 6.5m wide. Centurion Systems says the door must be balanced and must open and close by hand with no more than 50kgf, so have the springs and rollers checked first. The track in this kit is the standard sectional door track, and Centurion Systems gives 2600mm as the maximum opening height on the standard rail. Caravan-height sectional doors (up to 3206mm) take a 3800mm rail and tip-up doors a 2046mm rail, so ask the branch before you order for one of those. The motor is for indoor use only (IPX0), and Centurion Systems says it must be installed by a technically qualified or competent person. Alectra Solutions supplies the equipment only. Trade account holders can open the Centurion Systems manual and brochure on this page after login.
Key features
- More force for bigger doors. 100W motor with 1200N holding force and 50kgf push and pull, for doors up to 15 m² and 6.5m wide.
- Wireless wall switch included. Four buttons to work the door, turn on the light and switch on holiday lockout, with no wiring.
- Wi-Fi and Bluetooth built in. Open, close and check the door from anywhere with the MyCentsys Remote app. Setup runs over Bluetooth with MyCentsys Pro.
- Battery backup kit included. 2 x 12V 2.9Ah batteries fit inside the motor cover, rated by Centurion Systems for up to 70 operations on battery.
- Quiet belt drive. A belt-driven 24V DC motor moves the door at up to 9 metres a minute (speed varies with load).
- Collision sensing with auto-reverse. Hall-effect and current sensing stop and reverse the door on an obstruction. Sensitivity is set in MyCentsys Pro.
- Tamper sensor and service monitor. Alerts when the door or motor is tampered with, and reminds you when the door is due for a service.
- LED courtesy light. An LED light is built into the motor cover.
- 36-month warranty. Centurion Systems covers the operator for 36 months and the batteries for 6 months.
Specifications
| Model | Centurion Systems SDO5 SMART+ T12 |
|---|---|
| Door type | Sectional doors (the head unit also runs tip-up doors on a 2046mm rail) |
| Max door size | 15 m², up to 6.5m wide, 2600mm high on the standard rail |
| Power supply | 220V to 240V AC, 50/60Hz, mains driven |
| Motor | 24V DC, 100W |
| Force | 1200N holding, 50kgf push and pull |
| Drive | Belt, up to 9 m/min |
| Battery backup | Included: SDO5 SMART+ battery kit, 2 x 12V 2.9Ah, up to 70 operations |
| Connectivity | Wi-Fi (2.4GHz) and Bluetooth (BLE) |
| Receiver | Code-hopping 433MHz, up to 30 NOVA four-button remotes |
| Protection | IPX0, indoor use only |
| In the box | Head unit, wireless wall switch, sectional belt track (3196mm), battery backup kit, 2 x NOVA four-button remotes, header bracket, bent towing arm, mounting kit |
| Sold as | Full motor kit with wireless wall switch |
| Warranty | 36 months (batteries 6 months) |
Not in the box
- Safety beams
- Caravan or tip-up rail (this kit has the standard sectional track)
Questions people ask
Power and force. The T12 is 100W with 1200N holding force and 50kgf push and pull, for doors up to 15 m², and its kit includes a wireless wall switch. The T10 is 80W with 1000N and 40kgf, for doors up to 12 m², with no wall switch. Both kits come with the same track and battery backup kit.
It has four buttons that open and close the door, turn on the light and switch on holiday lockout. It is wireless, so there are no cables to run to the motor.
Yes, with the battery backup kit that comes in this kit. Centurion Systems rates it for up to 70 operations on battery, depending on the door, how long the power is off and the condition of the batteries.
Yes. Once the motor is on your 2.4GHz Wi-Fi, the MyCentsys Remote app opens and closes the door and shows its status from anywhere.
Yes. This kit is supplied with the Centurion Systems single-piece sectional belt track (3196mm), and the label on the track box still reads SDO4.
The head unit runs sectional and jamb-type tip-up doors. This kit has the standard sectional track, which suits doors up to 2600mm high. Caravan-height doors need a 3800mm rail and tip-up doors a 2046mm rail, so ask the branch before you order.
No. Centurion Systems recommends safety beams, and auto-close only works with beams fitted. The Centurion Systems Photon SMART wireless beams work with the SDO5 SMART+.
36 months from Centurion Systems on the operator. The batteries carry a 6-month warranty.
Need it fitted? Alectra Solutions supplies product only. Find a certified Centurion Systems installer at myinstaller.co.za.
