Gemini Roll-Up Garage Door Motor Kit (2x Single Doors)
24V DC Gemini motor kit that runs two single roll-up garage doors from one motor, with battery backup for power cuts. Kit: motor head, roll-up extrusion, stabiliser box, pole and door extension, 2 x 12V 2.4Ah batteries and 2 x 3-button remotes.
- 2 doorsRun from one motor
- 11 m/minDoor speed
- 2 x 2.4AhBattery backup included
- 30 remotesReceiver memory
-
Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00Get directions
-
Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45Get directions
Choose Pickup at checkout and we message you when your order is ready to collect.

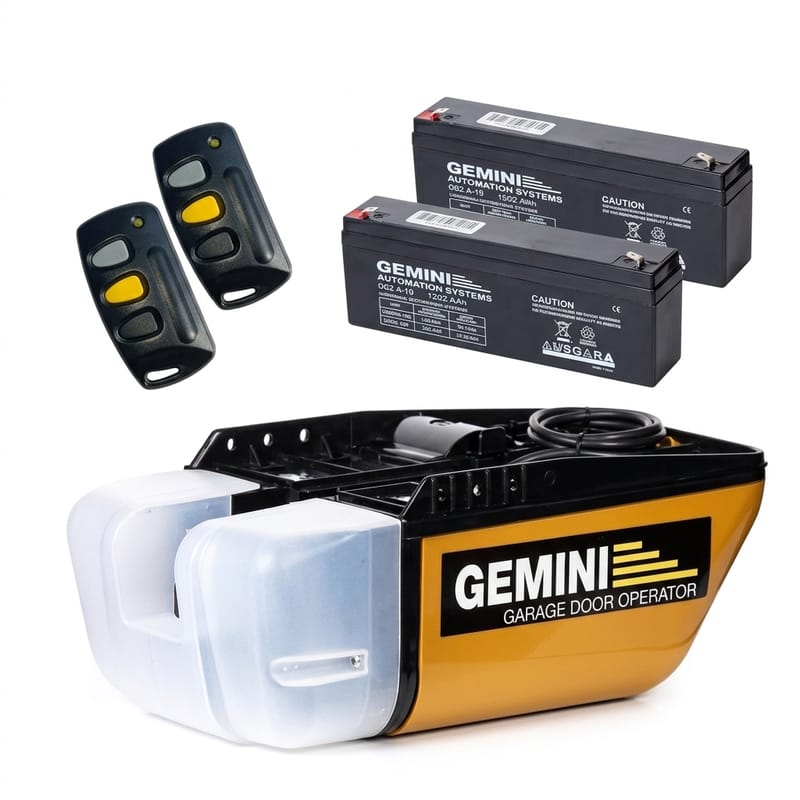

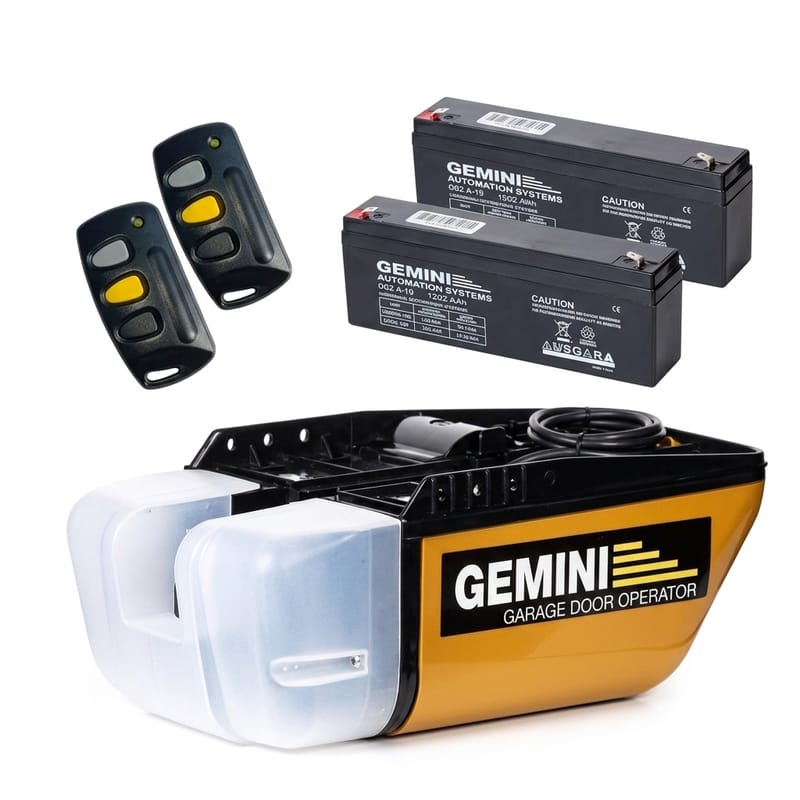

The Gemini Roll-Up Garage Door Motor Kit (2x Single Doors) automates two single roll-up garage doors with one motor. The motor head mounts between the two doors, and the stabiliser door extension in the kit links both doors to the same motor. A 24V DC motor drives a maintenance-free chain through a worm gearbox with a bronze gear, and two 12V batteries keep the doors working when the power goes off. Gemini motors are made by DMI Engineering in Silvertondale, Pretoria.

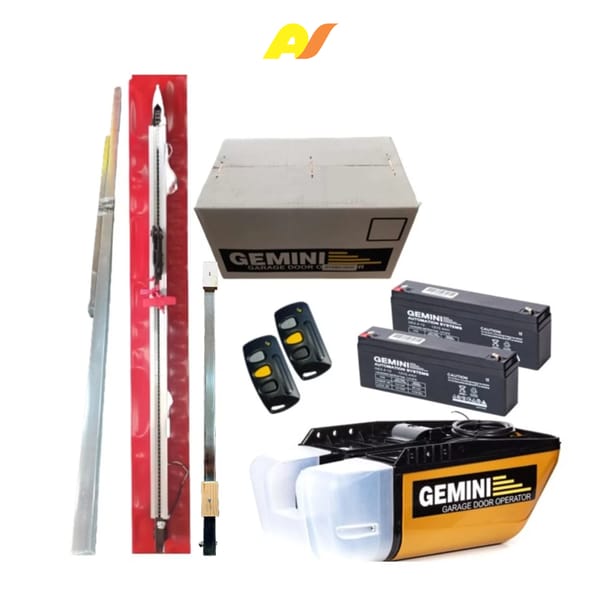

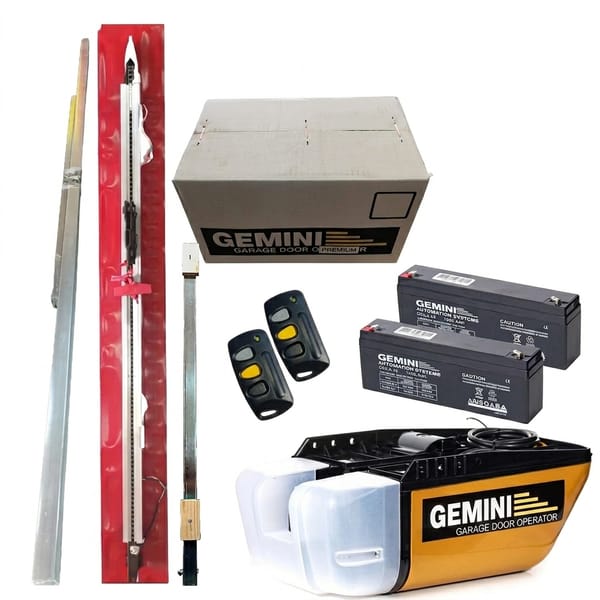

What's in the box
- Gemini garage door motor head
- Roll-up extrusion
- Stabiliser box
- Stabiliser square pole
- Stabiliser door extension
- 2 x 12V 2.4Ah batteries
- 2 x Gemini 3-button code-hopping remotes
Battery backup for load shedding
The motor runs from its two 12V 2.4Ah batteries, so you can still open the garage when the power is out. Gemini rates it for about 20 openings a day and notes that this depends on the doors and the condition of the batteries. No batteries are included in the Gemini warranty, so when they get old, swap in replacement 12V batteries.
Will it fit your doors?
This opener is only for roll-up doors, the kind that roll up above the garage entrance. Gemini's standard roll-up setup is for a 2.1m door opening, the motor and extrusion together are 2710mm long, and the best floor to ceiling height is 3100mm. The door shafts must be level, and each door must open easily by hand before a motor is fitted.
Safety and security
Electronic obstruction sensing, force-adjustable in both directions, stops the door and reverses it if it meets something while closing. The two remotes in the kit are programmed at the factory, and the receiver stores up to 30 remotes or wall consoles, so you can add Gemini 3-button remotes for the whole family. The LED light comes on for 2 minutes each time the door runs, and the engaged traveller helps keep the doors closed. If the motor can't run, the emergency release cord lets you open the doors by hand.
Got a sectional door instead?
See the Gemini Sectional Garage Door Motor Kit (Single or Double Door).
Key features
- Two doors, one motor. The stabiliser door extension links two single roll-up doors to the same Gemini motor, which mounts between the doors.
- Made for roll-up doors. Built only for roll-up doors that roll up above the garage entrance, with Gemini's roll-up stabiliser in the kit.
- 24V DC chain drive. A single 24V DC motor drives a maintenance-free chain through a worm gearbox with a bronze gear.
- Battery backup. Runs from two 12V 2.4Ah batteries, so the doors still open when the power is off.
- 10 kgf of pull. Moves the doors at about 11 m/min, and Gemini rates it for about 20 openings a day.
- Code-hopping remotes. Two 3-button remotes come programmed from the factory, and the receiver stores up to 30 remotes or wall consoles.
- Stops and reverses. Electronic obstruction sensing, force-adjustable in both directions, stops the door and reverses it if it hits something while closing.
- LED light. Comes on for 2 minutes each time the door runs, and the remote can switch it on or off.
- Made in Pretoria. Gemini motors are made by DMI Engineering in Silvertondale, Pretoria.
Specifications
| Door type | Roll-up doors only |
|---|---|
| Doors | Two single roll-up doors linked to one motor, motor head mounted between the doors |
| Installed length | 2710mm, motor and extrusion together |
| Door opening | 2.1m (opening length 2100mm) |
| Best ceiling height | 3100mm from the floor |
| Motor | 24V DC, 35W |
| Drive | Maintenance-free chain, worm gearbox (96:1) with a bronze gear |
| Pull force and speed | 10 kgf, about 11 m/min |
| Batteries | 2 x 12V 2.4Ah (24V), included; about 20 openings a day (Gemini estimate, depends on the door and batteries) |
| Receiver | Built in, 433.92 MHz code hopping, up to 30 remotes or wall consoles |
| Other features | LED light on for 2 minutes per run, soft start and stop, LED display mode, safety beam (IRB) connection, lock-out function, GSM compatible, emergency release cord |
| In the box | Motor head, roll-up extrusion, stabiliser box, stabiliser square pole, stabiliser door extension, 2 x 12V 2.4Ah batteries, 2 x 3-button remotes |
| Sold as | Kit for two single roll-up doors |
| Warranty | 24 months mechanical, 12 months electrical and electronic; batteries not covered |
Not in the box
- Wireless wall console (optional extra)
- Infrared safety beams
Manuals and documents
Questions people ask
The Gemini motor head, a roll-up extrusion, the stabiliser box, stabiliser square pole and stabiliser door extension, two 12V 2.4Ah batteries and two Gemini 3-button code-hopping remotes.
Yes. The stabiliser door extension links two single roll-up doors to the same motor, and the motor head is mounted between the two doors.
Gemini also makes a Single Door roll-up kit without the door extension. Ask the branch about it.
Roll-up doors only, the kind that roll up above the garage entrance. Gemini's standard roll-up setup is for a 2.1m door opening, and the best floor to ceiling height is 3100mm. The door shafts must be level, and each door must open easily by hand before a motor is fitted.
Yes. It runs from its two 12V 2.4Ah batteries, so the door still opens when the power is off. Gemini rates it for about 20 openings a day and says that figure depends on the door and the condition of the batteries.
Switch off the power and pull the emergency release cord on the traveller. You can then open and close the door by hand. Re-engage the traveller afterwards, because the engaged traveller is what helps keep the door closed.
A 220V wall socket within a metre of the motor head, on a circuit with an on/off switch. The motor comes with a 3-pin plug fitted, and Gemini warns that cutting the plug off ends the warranty.
Gemini gives 24 months on the mechanical parts and 12 months on the electrical and electronic parts. No batteries are included in the warranty, and Gemini asks you to register the motor at geminigates.co.za/warranty-registration.
Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
