DTS Expert 500 sliding gate motor kit
By DTS

DTS Expert 500 Sliding Gate Motor Kit with Anti-Tamper Bracket, 4m Nylon Rack and 2 Remotes

DTS Expert 500 sliding gate motor kit for home gates up to 500kg: motor with base plate and mounting hardware, 4m nylon rack, 2 DTS TX5 Octo remotes and an anti-tamper bracket. 22 m/min, 500-user receiver, 2 year motor warranty.

  • 500kgMax gate weight
  • 22 m/minGate speed
  • 2 Octo remotesIn the box
  • 24 monthsMotor warranty
R 5,399.00
Collect at a branch, no charge
  • Alectra Hatfield 648 Jan Shoba Street, HatfieldMon to Fri 07:30 to 17:00, Sat 08:00 to 17:00
    Get directions
  • Alectra Wonderboom Braam Pretorius Street, WonderboomMon to Sun 08:00 to 16:45
    Get directions

Choose Pickup at checkout and we message you when your order is ready to collect, usually within 24 hours. You can pay online, or pay at the branch when you collect.
Pairs well with
DTS TX5 Octo 5 Button Gate Remote, 8 Functions plus Panic
R 155.00
DTS 80mm Gate Wheel Set, Round Groove (Plain Radius)
R 335.00
DTS Expert Gate Motor + Battery
R 5,099.00
Nylon Gate Motor Rack 2m for Sliding Gates (Nylon Angle Rack)
R 250.00

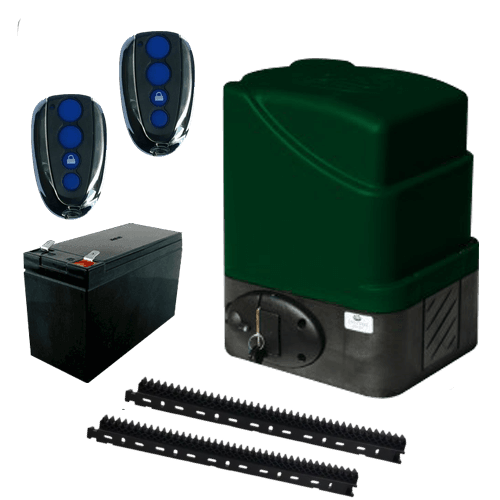

This DTS gate motor kit puts the Expert 500 sliding gate motor in one box with its base plate and mounting hardware, 4m of nylon rack (2 x 2m), two DTS TX5 Octo remotes and an anti-tamper bracket. The Expert 500 is the DTS residential sliding gate motor for home gates up to 500kg, running at 22 m/min. If you want the motor with a battery instead of the full kit, see the DTS Expert 500 motor with battery listing.

What's in the box

  • DTS Expert 500 sliding gate motor
  • Base plate and mounting hardware
  • 2 x 2m nylon racks (4m)
  • 2 x DTS TX5 Octo remotes
  • Anti-tamper bracket

Gates longer than 4m need extra 2m nylon rack. Worn gate wheels make any motor work harder, so check them before the motor goes in; we also sell DTS 80mm radius gate wheels.

Is the Expert 500 right for your gate?

DTS rates the Expert 500 for residential gates up to 500kg and about 6 operations an hour. That suits a normal home driveway. For a busy gate, such as a complex or a business, DTS points you to its Elite 600 instead.

Power, remotes and safety

The Expert 500 has a 12V DC motor. It takes a 230V mains supply, which an on-board transformer steps down to 16V AC. The receiver holds 500 users and works with DTS TX Octo remotes only. The two TX5 Octo remotes in the kit each give 8 functions plus a panic button from 5 buttons. If you want the gate to close by itself, safety beams are required for auto-close, and they are not in the kit.

Warranty and supply

DTS gives a 24 month warranty on the motor and 12 months on the remotes. Alectra Solutions supplies the equipment only.

Courier anywhere in South AfricaR160 for orders up to 10 kg. Heavier orders are priced by weight at checkout. Free courier on orders of R8,000 or more, up to 10 kg.
Collect in Pretoria at no chargeChoose collection at checkout and pick up at Hatfield or Wonderboom.
Genuine stockSupplied through the official South African distributors, with the supplier warranty.
Key features
  • Kit with anti-tamper bracket. Expert 500 motor, base plate and mounting hardware, 4m nylon rack, two DTS TX5 Octo remotes and the anti-tamper bracket.
  • For home gates up to 500kg. DTS rates the Expert 500 for residential sliding gates, about 6 operations an hour.
  • 22 m/min gate speed. The DTS figure for the Expert 500.
  • 12V DC motor. Fed from 230V mains through an on-board transformer that steps it down to 16V AC.
  • 500-user receiver. Works with DTS TX Octo remotes only.
  • TX5 Octo remotes. Each remote gives 8 functions plus a panic button from 5 buttons.
  • Weather rating. IPX4 rated, for use from -10°C to +45°C.
  • Auto-close with beams. Auto-close needs safety beams fitted.
  • 2 year motor warranty. DTS gives 24 months on the motor and 12 months on the remotes.
Specifications
ModelDTS Expert 500
Max gate weight500kg
Gate speed22 m/min
Motor12V DC
Power supply230V mains to an on-board 16V AC transformer
UseResidential, about 6 operations per hour
Receiver500 users, DTS TX Octo remotes only
Remotes2 x DTS TX5 Octo, 5 buttons, 8 functions plus panic
Rack2 x 2m nylon (4m)
ProtectionIPX4
Operating temperature-10°C to +45°C
Auto-closeNeeds safety beams (not included)
In the boxExpert 500 motor, base plate and mounting hardware, 2 x 2m nylon racks, 2 x DTS TX5 Octo remotes, anti-tamper bracket
Sold asKit
Not in the box
  • Safety beams (needed for auto-close)
  • Extra rack for gates longer than 4m
Manuals and documents
Questions people ask
What is in the DTS Expert 500 kit?

The Expert 500 motor, base plate and mounting hardware, 2 x 2m nylon racks, 2 DTS TX5 Octo remotes and an anti-tamper bracket.

How heavy a gate can the Expert 500 move?

DTS rates it for residential sliding gates up to 500kg.

Is this DTS gate motor right for a busy complex gate?

No. DTS rates the Expert 500 for about 6 operations an hour, which suits a home. For busy gates DTS recommends its Elite 600.

Which remotes work with it?

DTS TX Octo remotes only. The receiver holds 500 users, and the kit comes with two TX5 Octo remotes.

Do I need safety beams?

Yes, if you want auto-close. DTS requires safety beams for auto-close, and they are not in the kit.

How is it powered?

From 230V mains, which an on-board transformer steps down to 16V AC for the 12V DC motor. Alectra Solutions supplies the equipment only.

Is 4m of rack enough?

It covers a gate run of up to 4m. Longer gates need extra 2m lengths of nylon rack.

What warranty does DTS give?

24 months on the motor and 12 months on the remotes.

Need it fitted? Alectra Solutions supplies product only. Ask the branch and we will point you to installers in Pretoria.
