Centurion Systems G-Speak Ultra Metal Gate Station 4-Button
Pricing for registered gate motor installers, electricians, security installation companies and building contractors.
Log in to see your priceNo trade account yet? Apply for one here
Buying for your own home? Ask for a formal quote and a sales agent will send you the price.

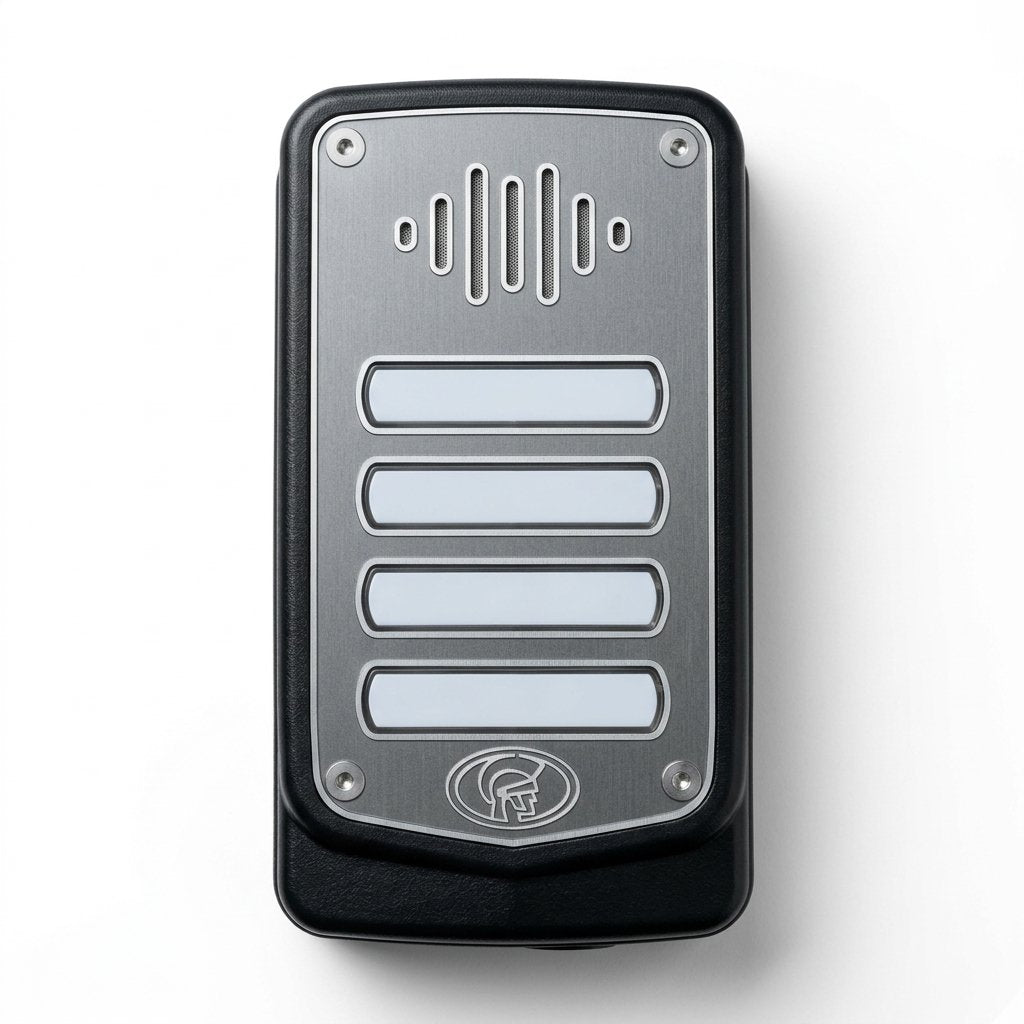

Get a formal quoteThe Centurion Systems Metal Gate Station (4-Button) is a vandal-resistant aluminium call panel for the Centurion Systems G-Speak Ultra GSM intercom system. Visitors press one of four backlit buttons at your gate, and the G-Speak Ultra phones the cellphone linked to that button. Up to four homes, flats, offices or departments can answer the gate and open it from anywhere.
Please note: this is the gate station (call panel) only. It connects to and is powered by a Centurion Systems G-Speak Ultra, sold separately, and cannot work on its own.
Ideal for: townhouse complexes, duets and small multi-tenant buildings with up to four units, business parks with up to four offices, or a home that needs separate buttons for the main house, cottage and office.
How it works
- A visitor presses a call button at the gate.
- The connected G-Speak Ultra dials the number(s) programmed for that button over the mobile network.
- You answer on your phone, wherever you are, speak to the visitor and open the gate from your handset through the G-Speak Ultra.

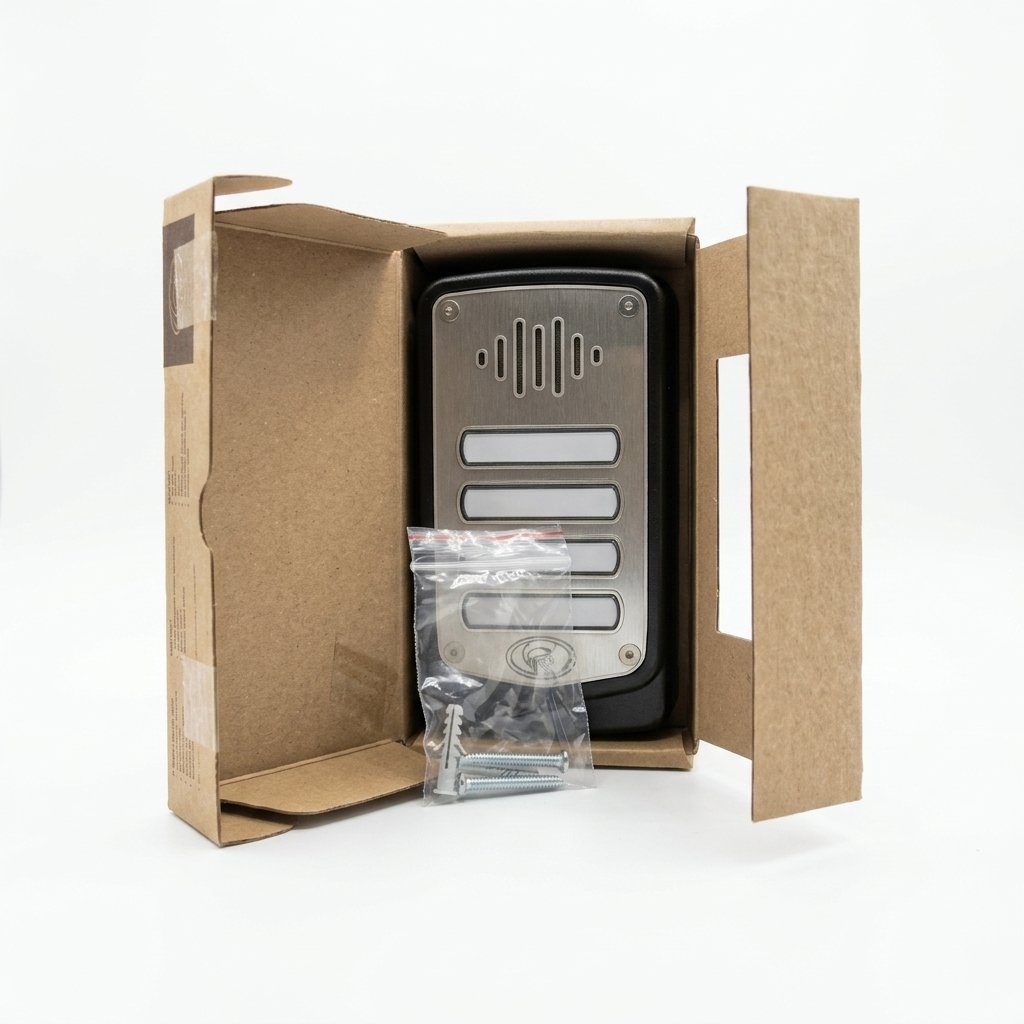

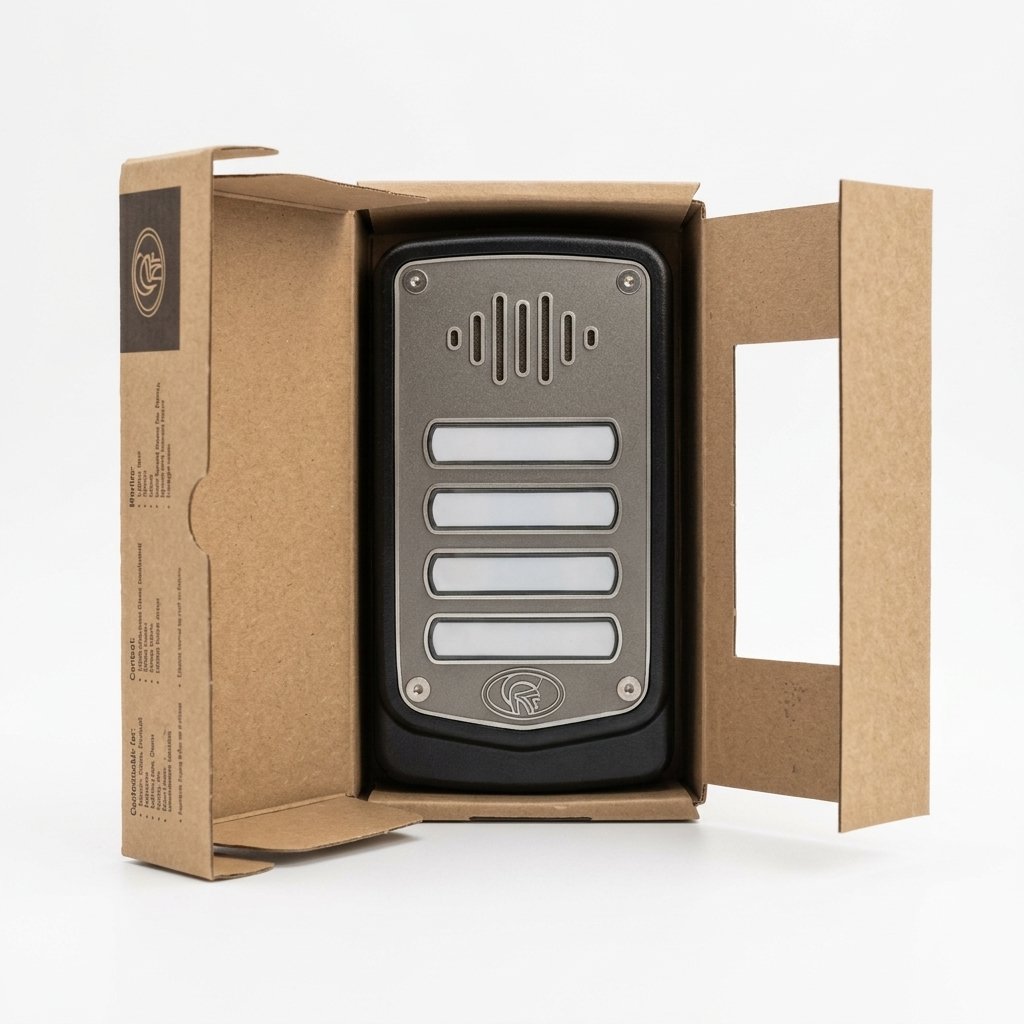

In the box: 4-button Metal Gate Station with stainless fascia, mounting screws and wall plugs.
Key features
- 4 backlit call buttons with label windows, easy to see day or night
- Each button dials up to 2 programmed numbers (a primary and a backup), 8 numbers in total
- Time Barring per button, so you can automatically switch a button off after hours. Set up on the G-Speak Ultra through Centurion Systems' G-Web portal
- Tough aluminium enclosure instead of a plastic housing
- IP54 weather resistance, rated from -20°C to +50°C for South African conditions
- Simple 6-wire connection to the G-Speak Ultra (power, audio and mic). The panel draws its power from the G-Speak Ultra, so there is no separate power supply at the gate
- Mounting holes line up with the Centurion Systems Universal Gooseneck (fit the Gooseneck backing plate to keep the IP rating)
- Designed and built in South Africa, with a 24-month Centurion Systems warranty
Specifications
| Compatibility | Centurion Systems G-Speak Ultra only (required, sold separately) |
|---|---|
| Operating voltage | 7.4V DC, supplied by the G-Speak Ultra |
| Current draw | 11mA |
| Call buttons | 4, illuminated, with labels (2 numbers per button) |
| Wiring | 6-wire connection (power, audio and mic) |
| Ring tone | Electronic tone when a button is pressed |
| Call confirmation | Yes |
| Speech volume | Adjustable via G-Web |
| Operating temperature | -20°C to +50°C |
| Humidity | 0 to 90% non-condensing |
| Degree of protection | IP54 |
| Dimensions | 97mm wide x 40mm deep x 178mm high |
| Enclosure | Aluminium |
| Warranty | 24 months |
Questions people ask
No. It is a call panel for the Centurion Systems G-Speak Ultra and draws its power from it (7.4V DC). You need a G-Speak Ultra for it to work.
Two per button, a primary and a backup, so a 4-button station can hold up to 8 numbers.
Yes. Time Barring can be set per button on the G-Speak Ultra, for example to switch the office button off after hours.
Yes. It carries an IP54 rating in its aluminium enclosure and operates from -20°C to +50°C. If you mount it on a Centurion Systems Universal Gooseneck, fit the Gooseneck backing plate to keep the IP rating.
Yes, through the G-Speak Ultra. The G-Speak Ultra can trigger almost any gate motor or garage door operator with a trigger input, including Centurion Systems D-Series gate motors.
Yes. Alectra Solutions couriers across South Africa, or you can collect from our Hatfield or Wonderboom branch in Pretoria.
Need it fitted? Alectra Solutions supplies product only. Find a certified Centurion Systems installer at myinstaller.co.za.
