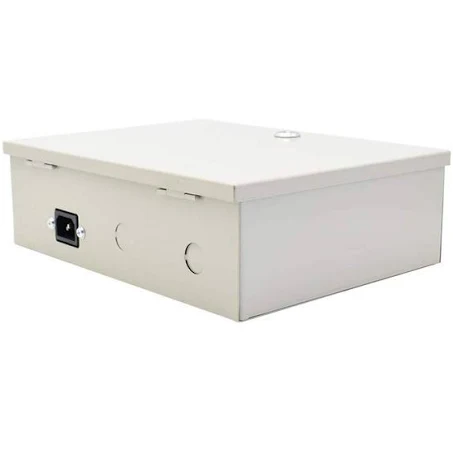

12V 10A 9-Channel CCTV Battery Backup

Keep Your Security Online During Load Shedding Don't let power outages leave your property vulnerable. The 12V 10A 9-Channel CCTV Battery Backup Power Supply is a professional-grade UPS (Uninterruptible Power Supply) designed specifically for surveillance systems. This unit not only regulates power to your cameras during normal operation but automatically switches to battery power the second the lights go out, ensuring 24/7 recording and monitoring.

High-Capacity Power Distribution With a total output of 10 Amps distributed across 9 individual channels, this unit is capable of powering a full array of high-draw infrared cameras, DVRs, and even electronic locks. Each channel is protected by a PTC auto-reset fuse, meaning if one camera has a fault, the rest of your system stays live.

Smart Charging & Protection The integrated smart-charging circuit is designed to keep a 12V backup battery (sold separately) topped up and ready for action. The heavy-duty metal casing provides a secure, wall-mountable housing for both the power components and the battery, keeping your installation neat, professional, and tamper-proof.

Key Features & Benefits

Seamless UPS Function: Automatic switch-over to battery backup during power failures.

9 Individually Fused Channels: PTC technology ensures one camera fault won't crash the entire system.

10 Amp Total Output: Plenty of power for long cable runs and night-vision LEDs.

Battery Charging Circuit: Built-in charger for standard 12V 7Ah or 9Ah lead-acid/gel batteries.

LED Status Indicators: Front-facing lights for AC power, DC output, and Battery status.

Lockable Metal Enclosure: Heavy-duty, vented steel box to prevent tampering and overheating.

Technical Specifications

Input Voltage: 190V – 240V AC

Output Voltage: 12V DC (Adjustable)

Max Output Current: 10 Amps

Protection: Short Circuit / Overload / Surge Protection

Battery Support: Fits standard 12V 7Ah/9Ah/12Ah batteries
